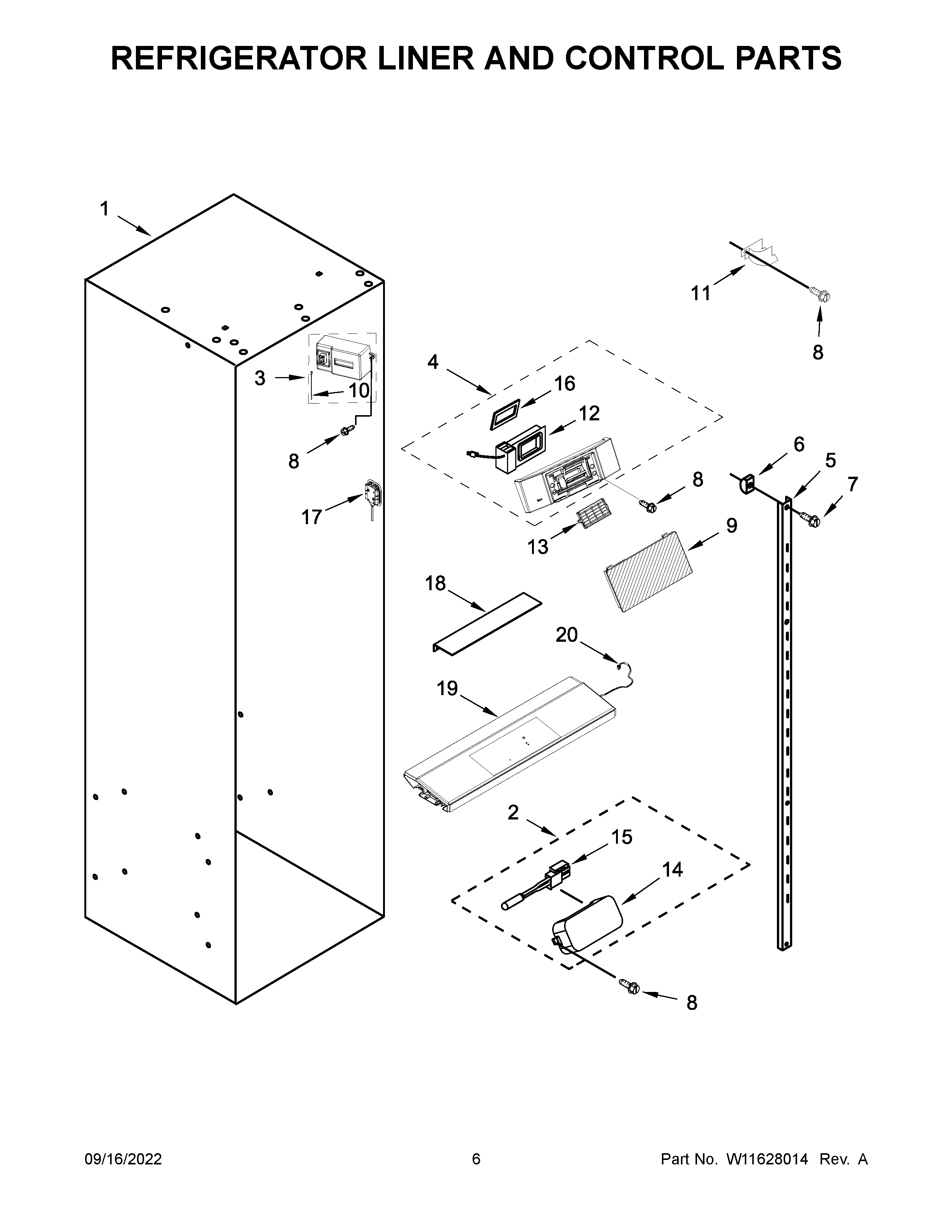

JBSFS48NMX00 04 – REFRIGERATOR LINER AND CONTROL PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER
3W11744513 Whirlpool Cover
4W11741459 Whirlpool Diffuser
5LADDER, SHELF
62259445 Whirlpool Support Assembly
7SCREW
8W10678210 Whirlpool Screw
9COVER, DIFFUSER ASSEMBLY
10WP2302937 Whirlpool Refrigerator Thermistor
11GUARD, AIR RETURN
12WP2220377 Whirlpool Refrigerator Air Baffle
13W10311524 Whirlpool FreshFlow Refrigerator Air Filter
14W11235125 Whirlpool Cover
15WP2188820 Whirlpool Refrigerator Thermistor
16GASKET, AIR BAFFLE
17W11484836 Whirlpool Refrigerator Module
18DIVERTER, CRISPER COVER
19W11626127 Whirlpool Refrigerator Electronic Control Board + Core
20WIRE, USER INTERFACE JUMPER
