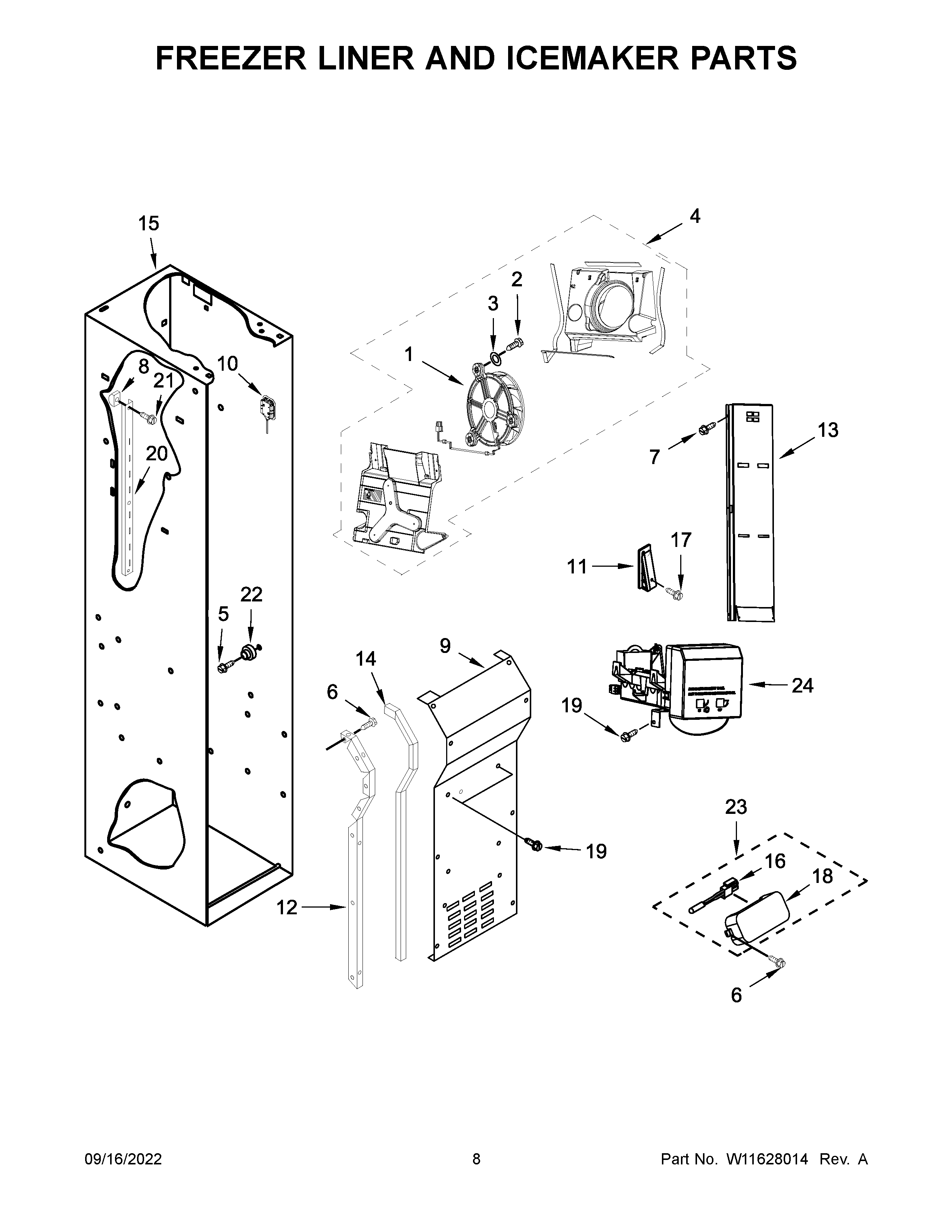

JBSFS48NMX00 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
NITEMPLATE, DOOR (WOOD PANEL)
NIW11175806 Whirlpool Refrigerator Installation Kit
NICABINET (NOT A SERVICEABLE PART)
NIW10744761 Whirlpool Refrigerator Installation Kit
NIW10234156 Whirlpool Refrigerator Installation Kit
1W11618271 Whirlpool Evaporator Motor
2WP488729 Whirlpool Refrigerator Door Screw
3WASHER
4W11631626 Whirlpool Evaporator Motor
5SCREW (BLACK)
6W11624204 Whirlpool Screw
7WPW10141604 Whirlpool Screw
82259445 Whirlpool Support Assembly
9COVER, EVAPORATOR
10W11484836 Whirlpool Refrigerator Module
11WEDGE, AIR DUCT (LEFT HAND)
11AWEDGE, AIR DUCT (RIGHT HAND)
12ARAIL, EVAPORATOR COVER (RIGHT HAND)
12RAIL, EVAPORATOR COVER (LEFT HAND)
13DUCT, AIR
14GASKET, EVAPORATOR COVER
16WP2188820 Whirlpool Refrigerator Thermistor
17WP98008545 Whirlpool Screw
18W11235125 Whirlpool Cover
19W10678210 Whirlpool Screw
20LADDER, SHELF
21SCREW
22ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23COVER
24W11744512 Whirlpool Ice Maker Assembly
