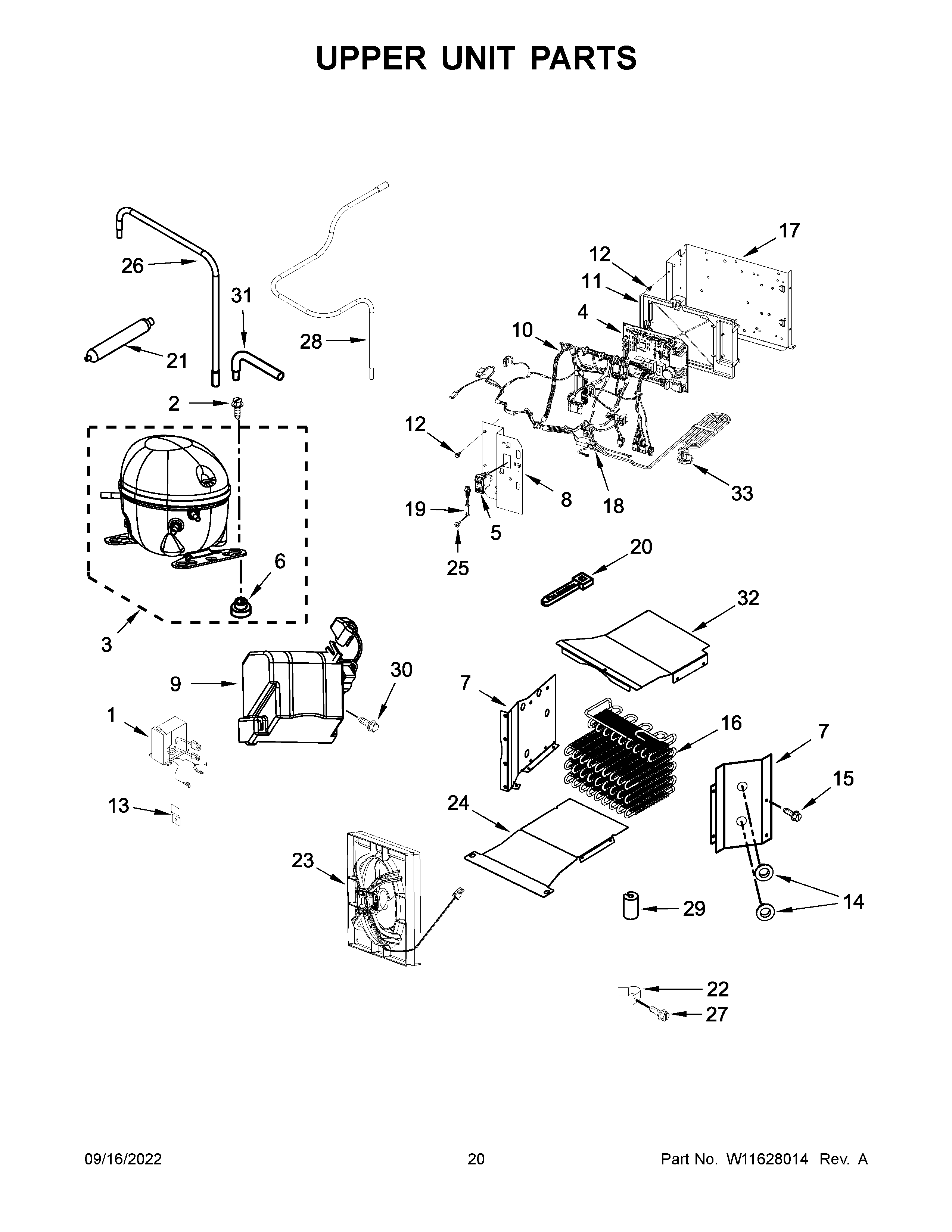

JBSFS48NMX00 11 – UPPER UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	INVRTR-BOX
2	876811 Whirlpool Grommet
3C	W11504416 Whirlpool Refrigerator Coupler
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
3B	W11504431 Whirlpool Microwave Coupler
4	CNTRL-ELEC
5	SWITCH, POWER DISCONNECT
6	W11661108 Whirlpool Grommet
7	SUPPORT, CONDENSER (LEFT HAND)
7A	SUPPORT, CONDENSER (RIGHT HAND)
8	BRACKET, CONTROL ASSEMBLY
9	W11247667 Whirlpool Refrigerator Cover
10	ASSEMBLY, UNIT WIRE HARNESS
11	HOUSING, CONTROL BOARD
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	GROMMET
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17	W10550831 Whirlpool Refrigerator Housing
18	2310195 Whirlpool Refrigerator Wire Jumper
19	W11627456 Whirlpool Sensor
20	WPW10339879 Whirlpool Wire Tie
21	W11109499 Whirlpool Refrigerator Tube
21B	W11504432 Whirlpool Refrigerator Coupler
21A	W11504445 Whirlpool Refrigerator Coupler
22	W11234470 Whirlpool Refrigerator Clamp
23	W11623099 Whirlpool Condenser Motor
24	WPL W11443119
25	SCREW
26	TUBE, DRIER TRANSITION
27	W11624204 Whirlpool Screw
28	TUBE, HEAT LOOP TRANSITION
29	W10852725 Whirlpool Refrigerator Grommet
30	WP9741232 Whirlpool Dishwasher Screw
31	TUBE, PROCESS
32	COVER, CONDENSER SUPPORT
33	2310196 Whirlpool Refrigerator Power Cord
