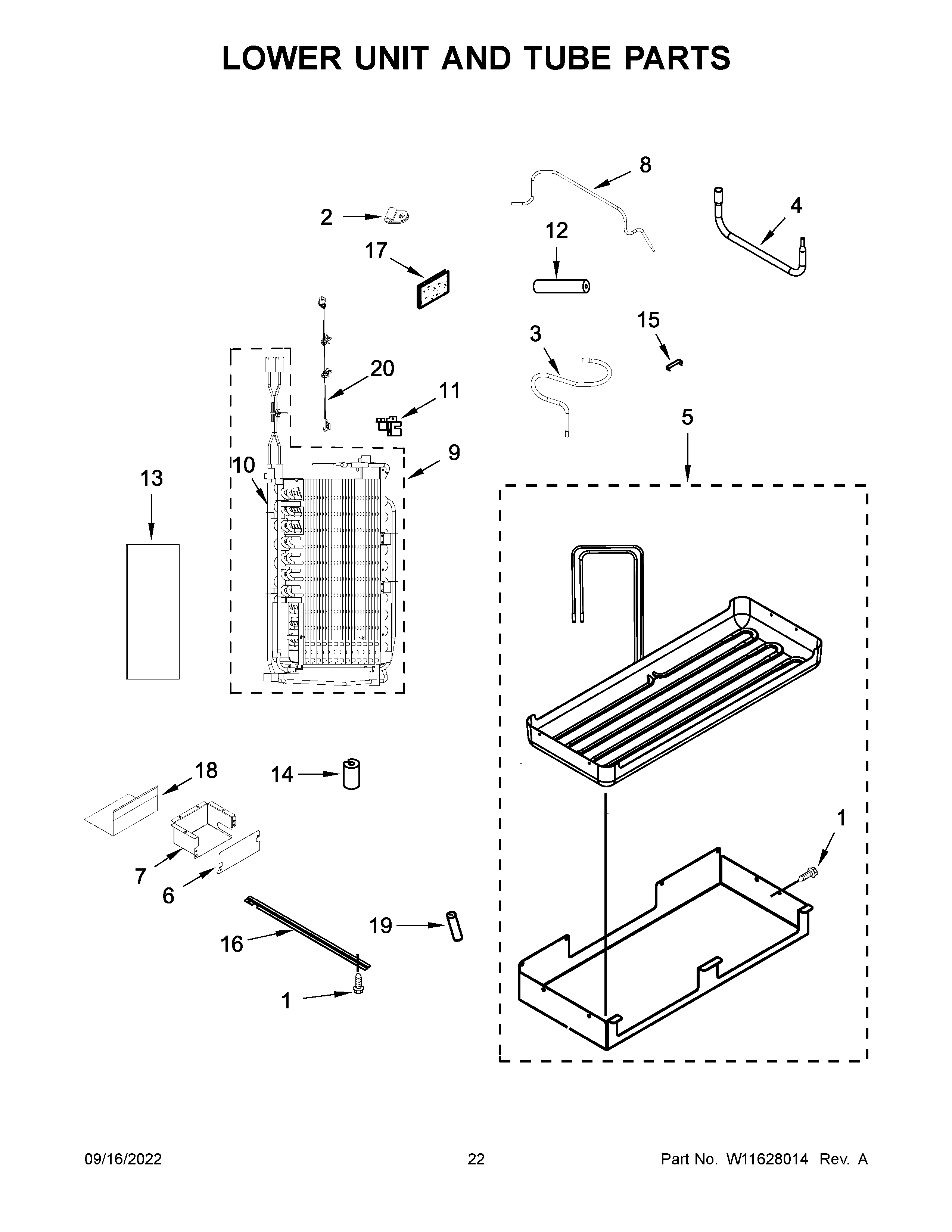

JBSFS48NMX00 12 – LOWER UNIT AND TUBE PARTS

JBSFS48NMX00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

JBSFS48NMX00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WP489069 Whirlpool Compactor Screw
2W10833902 Whirlpool Refrigerator Clamp
3TUBE
4TUBE
5ASSEMBLY, DRAIN PAN
6WIRE BOX COVER
7WPW10309012 Whirlpool Wire Cover
8TUBE, DISCHARGE
9AW11504450 Whirlpool Refrigerator Coupler
9BW11506620 Whirlpool Refrigerator Coupler
9W11629714 Whirlpool Evaporator
10W11626107 Whirlpool Heater Assembly
11BRACKET, EVAPORATOR RIGHT TOP
12SLEEVE
13GASKET, EVAPORATOR BYPASS
14W11715935 Whirlpool Dampener
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
17W11553819 Whirlpool Refrigerator Insulation
18W10321050 Whirlpool Refrigerator Shield
192215648 Whirlpool Refrigerator Dampener
20W11629268 Whirlpool Thermistor
