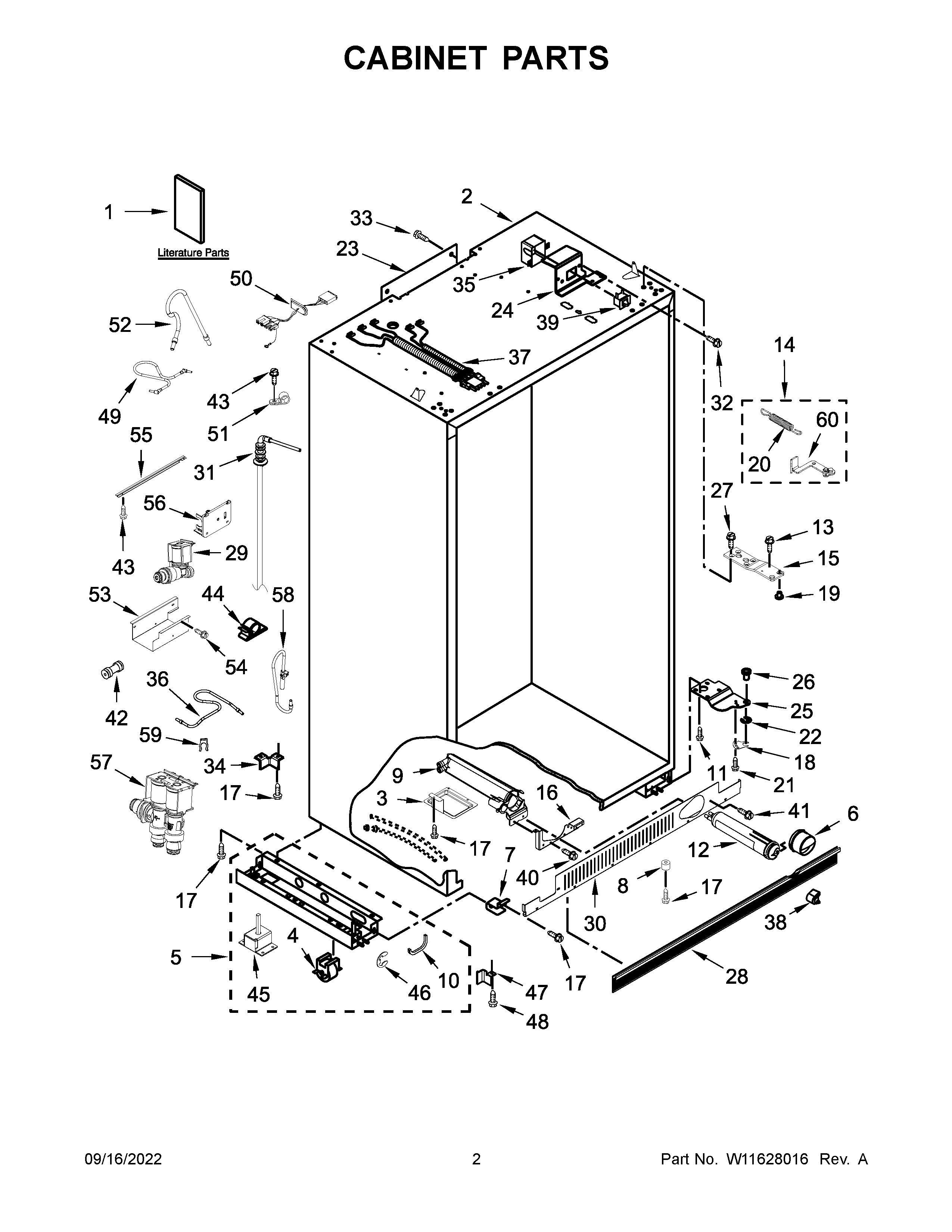

JBSS42E22L00 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1C	TECH SHEET
1A	ENERGY GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5A	W10860448 Whirlpool Refrigerator Support
6	W11238395 Whirlpool Refrigerator Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	2005433 Whirlpool Refrigerator Spacer
9	WPW10121140 Whirlpool Refrigerator Housing
10	2307584 Whirlpool Refrigerator Grommet
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP8281164 Whirlpool Refrigerator Screw
14A	WP2307857 Whirlpool Refrigerator Extension
14	WPW10121046 Whirlpool Refrigerator Extension
15	2257644 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	W11500952 Whirlpool Refrigerator Hinge Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	SCREW
22	WP489236 Whirlpool Refrigerator Ring
23	2215612 Whirlpool Refrigerator Duct Cover
24A	BRACKET, SWITCH (RIGHT HAND)
24	BRACKET, SWITCH (LEFT HAND)
25A	WP2006780 Whirlpool Refrigerator Door Hinge
25	W10527053 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11721628 Whirlpool Screw Assembly
28	WPW10188549 Whirlpool Refrigerator Front Grille
29	W11246413 Whirlpool Refrigerator Inlet Valve
30	WPW10182717 Whirlpool Refrigerator Front Grille
31	W11212166 Whirlpool Refrigerator Inlet Tube
32	WP965173 Whirlpool Dishwasher Screw
33	W10678210 Whirlpool Screw
34	2006617 Whirlpool Refrigerator Bracket
35	COVER, SWITCH
36	W11533506 Whirlpool Refrigerator Water Tube
37	W10780213 Whirlpool Harness Switch
38	WP2260503B Whirlpool Refrigerator Button
39	W11396033 Whirlpool Refrigerator Rocker Switch
39A	W11291138 Whirlpool Refrigerator Door Switch
40	WP8281163 Whirlpool Refrigerator Screw
42	WP2300868 Whirlpool Refrigerator Fitting
43	W11624204 Whirlpool Screw
44	CLIP
45	2005032 Whirlpool Refrigerator Leveler
46	2006841 Whirlpool Ring
47A	2006556 Whirlpool Refrigerator Bracket
47	2006616 Whirlpool Refrigerator Bracket
48	WPW10141604 Whirlpool Screw
49	W11663448 Whirlpool Water Tube
50	W11421923 Whirlpool Wire Harness
51	489348 Whirlpool Refrigerator Tube Clamp
52	W11634221 Whirlpool Water Tube
53	W11439643 Whirlpool Shield Assembly
54	WP489128 Whirlpool Refrigerator Screw
55	Support, Valve
56	W10847867 Whirlpool Refrigerator Bracket
57	WPW10279866 Whirlpool Refrigerator Inlet Valve
58	W11634223 Whirlpool Water Tube
59	W10782424 Whirlpool Refrigerator Ring
59A	W10782423 Whirlpool Refrigerator Ring
60	W11298172 Whirlpool Refrigerator Extension
60A	W10847927 Whirlpool Refrigerator Extension
