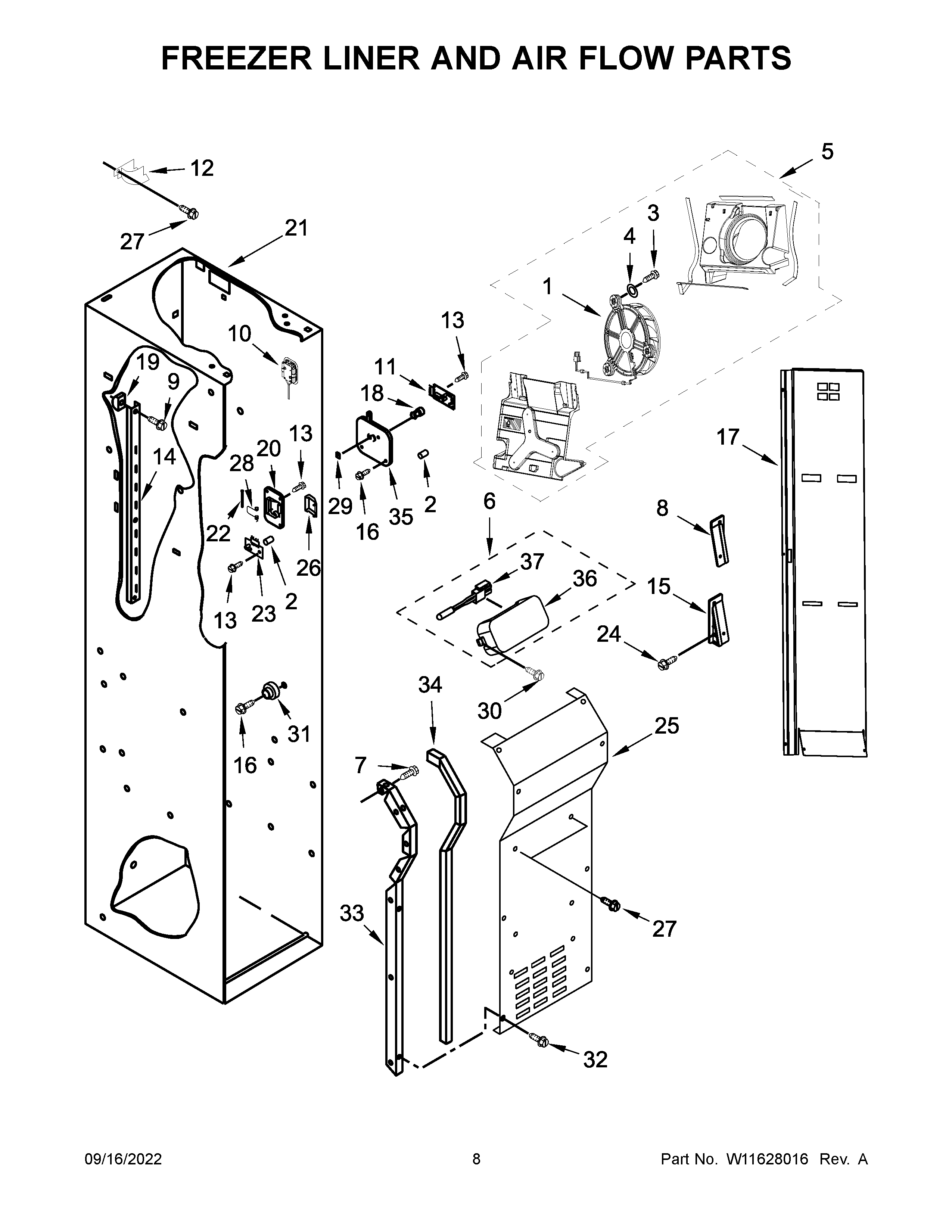

JBSS42E22L00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11618271 Whirlpool Evaporator Motor
2Tube, P.C. Board
3WP488729 Whirlpool Refrigerator Door Screw
4WASHER
5W11631623 Whirlpool Evaporator Motor
6COVER
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (RIGHT HAND)
9SCREW
10W11484836 Whirlpool Refrigerator Module
12GUARD, AIR RETURN
132006254 Whirlpool Refrigerator Screw
14LADDER, SHELF
15WEDGE, AIR DUCT (LEFT HAND)
16SCREW (BLACK)
17DUCT, AIR
18WP2198643 Whirlpool Refrigerator Lens
192259445 Whirlpool Support Assembly
20COVER
21CABINET (NOT A SERVICEABLE PART)
22WP2198634 Whirlpool Door Pin
23W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
24WP98008545 Whirlpool Screw
25COVER, EVAPORATOR
26FLIPPER
27W10678210 Whirlpool Screw
28WP2198635 Whirlpool Refrigerator Spring
29SLIDE, ICEMAKER SHUT OFF
30WP489069 Whirlpool Compactor Screw
31ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32WP8281163 Whirlpool Refrigerator Screw
33ARAIL, EVAPORATOR COVER (RIGHT HAND)
33RAIL, EVAPORATOR COVER (LEFT HAND)
34GASKET, EVAPORATOR COVER
35COVER, RECEIVER
36W11235125 Whirlpool Cover
37WP2188820 Whirlpool Refrigerator Thermistor
