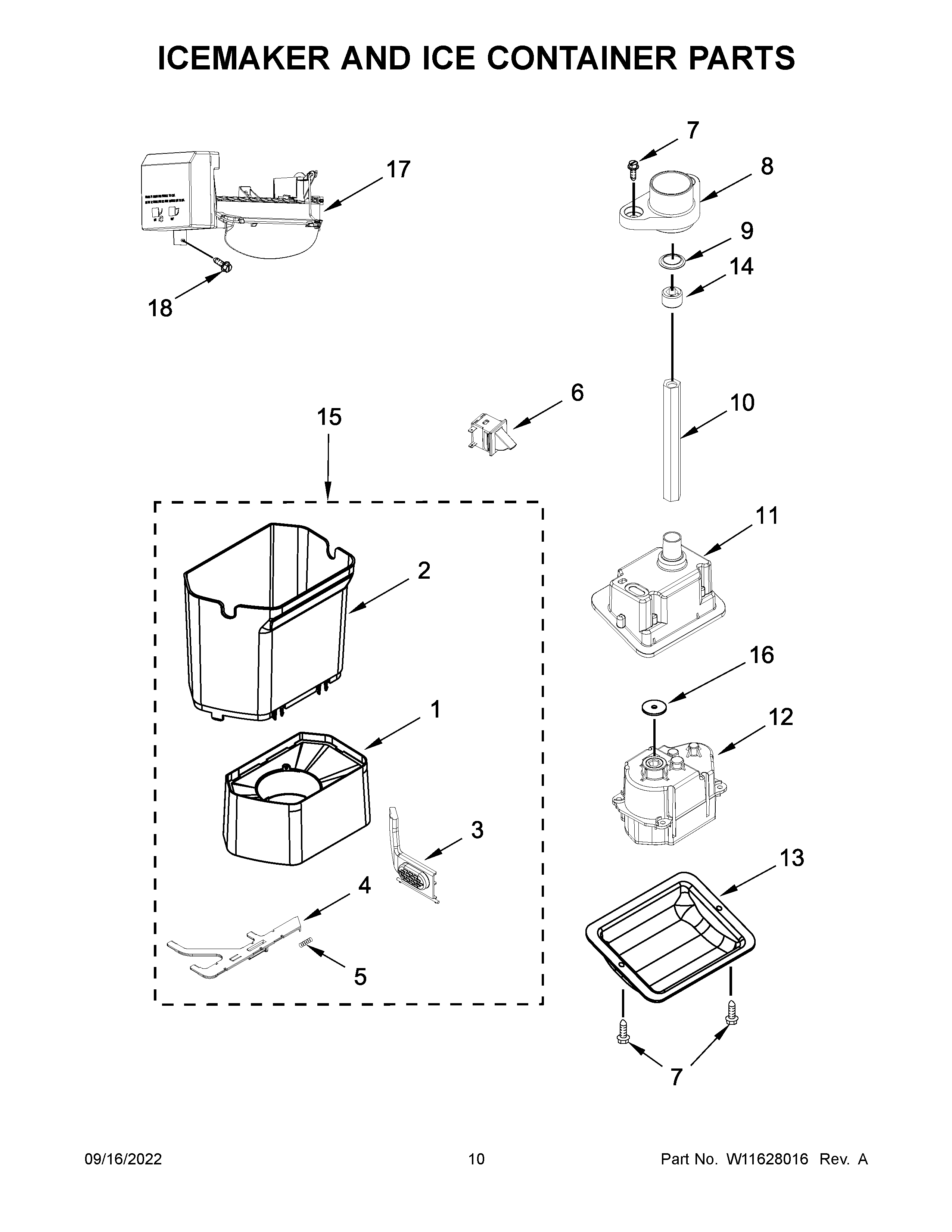

JBSS42E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

JBSS42E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

JBSS42E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1BIN, CRUSHER
2WP2222965 Whirlpool Refrigerator Ice Bin
3BUTTON, BIN
4W10134783 Whirlpool Refrigerator Bin Latch
5WP2198608 Whirlpool Refrigerator Spring
6SWITCH, AUGER MOTOR
7WP8281163 Whirlpool Refrigerator Screw
8CLIP, SHAFT
9WP2198628 Whirlpool Door Seal
10WP2318082 Whirlpool Ice Ejector Bar
11ENCLOSURE, MOTOR
12W10822606 Whirlpool Dishwasher Dispenser Motor
13COVER, DISPENSER MOTOR
14WP2315559 Whirlpool Motor Coupling
15W11452363 Whirlpool Ice Container
16WPW10254073 Whirlpool Refrigerator Washer
17ICEMAKER
18W10678210 Whirlpool Screw
