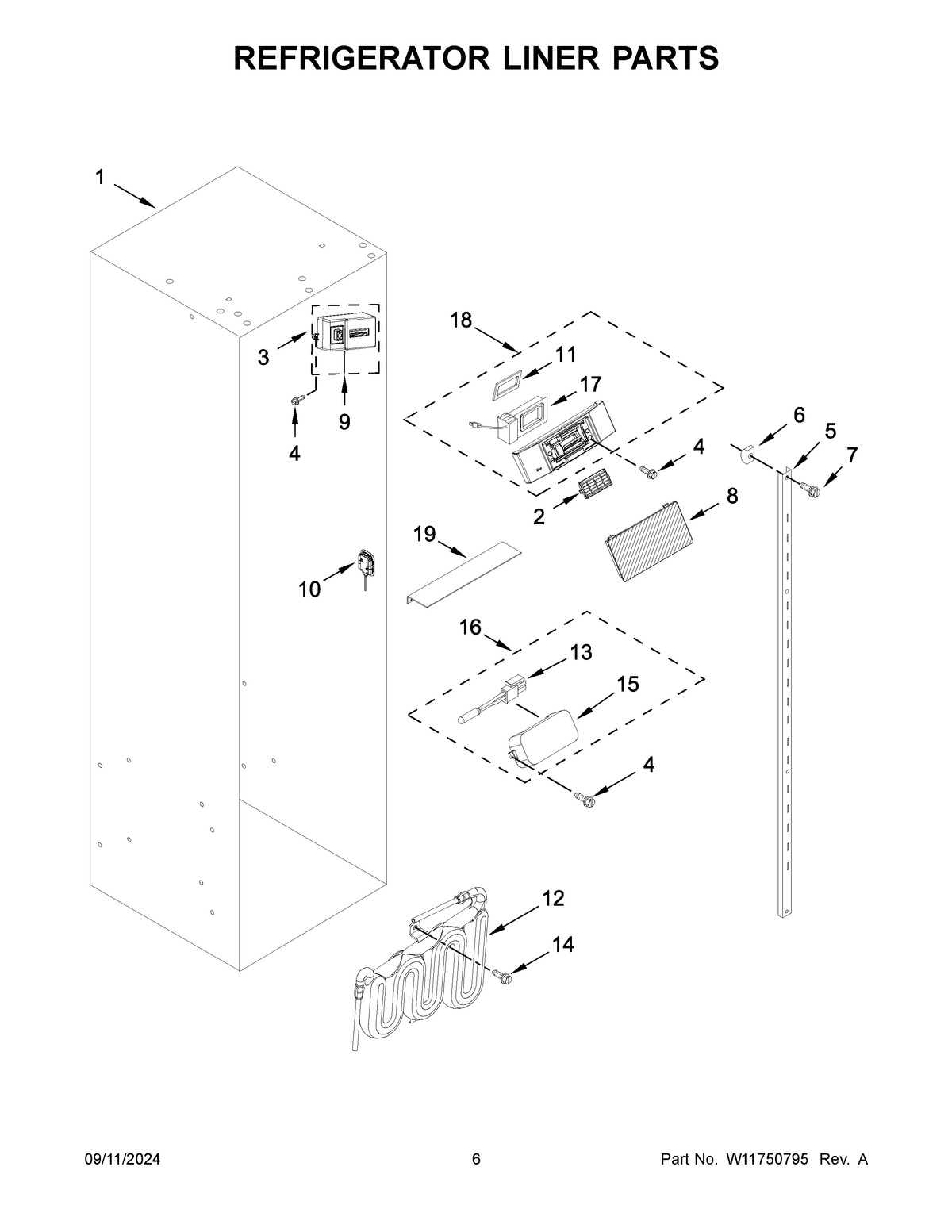

JBSS42E22L01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2W10311524 Whirlpool FreshFlow Refrigerator Air Filter
3W11744513 Whirlpool Cover
4W10678210 Whirlpool Screw
5LADDER, SHELF
6520965 Whirlpool Refrigerator Support
7SCREW
8COVER, DIFFUSER ASSEMBLY
9WP2302937 Whirlpool Refrigerator Thermistor
10W11484836 Whirlpool Refrigerator Module
11GASKET, AIR BAFFLE
12W11463083 Whirlpool Reservoir
13WP2188820 Whirlpool Refrigerator Thermistor
14W10141518 Whirlpool Refrigerator Screw
15W11235125 Whirlpool Cover
16COVER
17WP2220377 Whirlpool Refrigerator Air Baffle
18W11741459 Whirlpool Diffuser
19COVER
