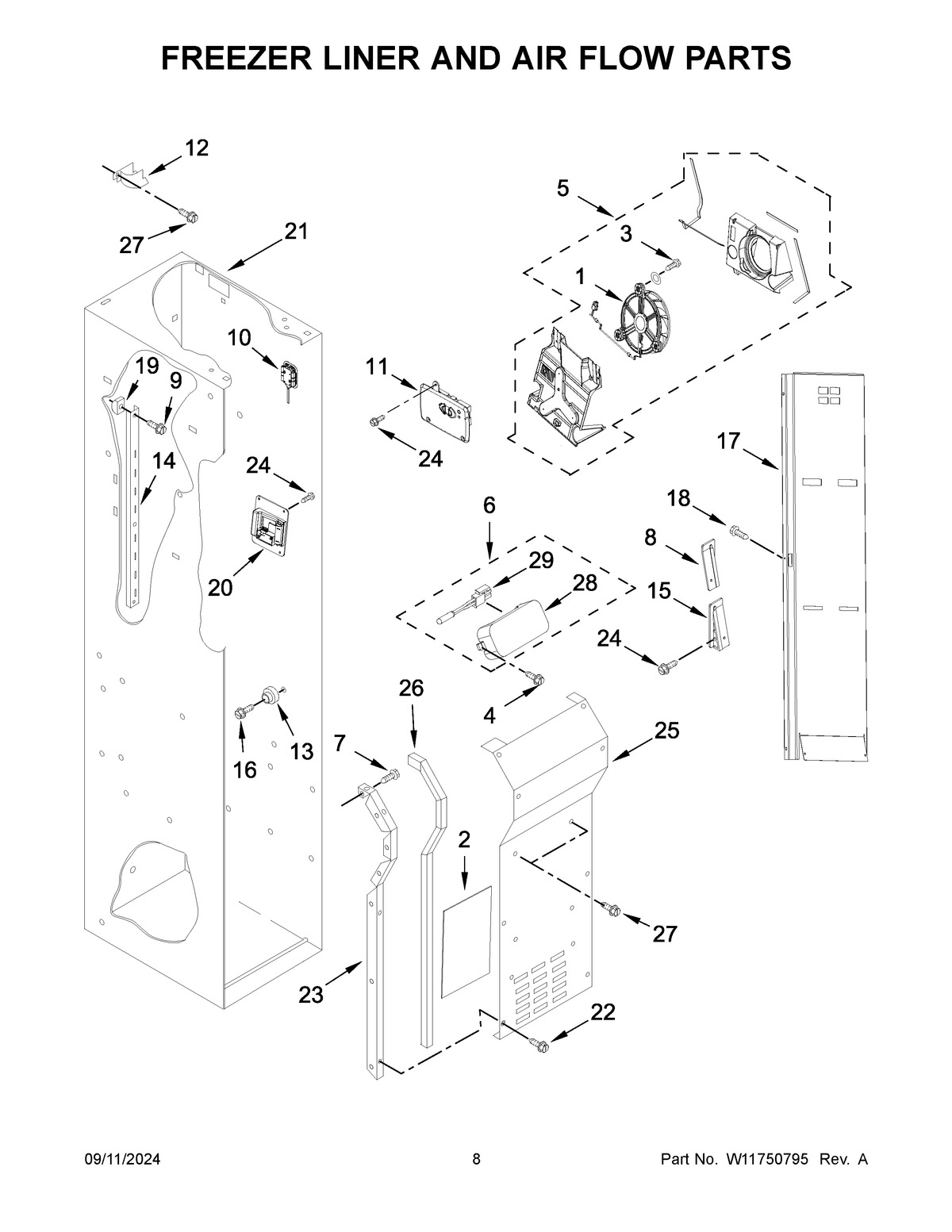

JBSS42E22L01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11618271 Whirlpool Evaporator Motor
2GASKET, FC EVAPORATOR BYPASS
3WP488729 Whirlpool Refrigerator Door Screw
4WP489069 Whirlpool Compactor Screw
5W11631623 Whirlpool Evaporator Motor
6COVER
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (RIGHT HAND)
9SCREW
10W11484836 Whirlpool Refrigerator Module
12GUARD, AIR RETURN
13ASSEMBLY, SHELF STUD (INCLUDES SCREW)
14LADDER, SHELF
15WEDGE, AIR DUCT (LEFT HAND)
16SCREW (BLACK)
17DUCT, AIR
18WPL W10784922
19520965 Whirlpool Refrigerator Support
20CNTRL-ELEC + CORE
21LINER (NOT A SERVICEABLE PART)
22WP8281163 Whirlpool Refrigerator Screw
23ARAIL, EVAPORATOR COVER (RIGHT HAND)
23RAIL, EVAPORATOR COVER (LEFT HAND)
24WP98008545 Whirlpool Screw
25COVER, EVAPORATOR
26GASKET, EVAPORATOR COVER
27W10678210 Whirlpool Screw
28W11235125 Whirlpool Cover
29WP2188820 Whirlpool Refrigerator Thermistor
