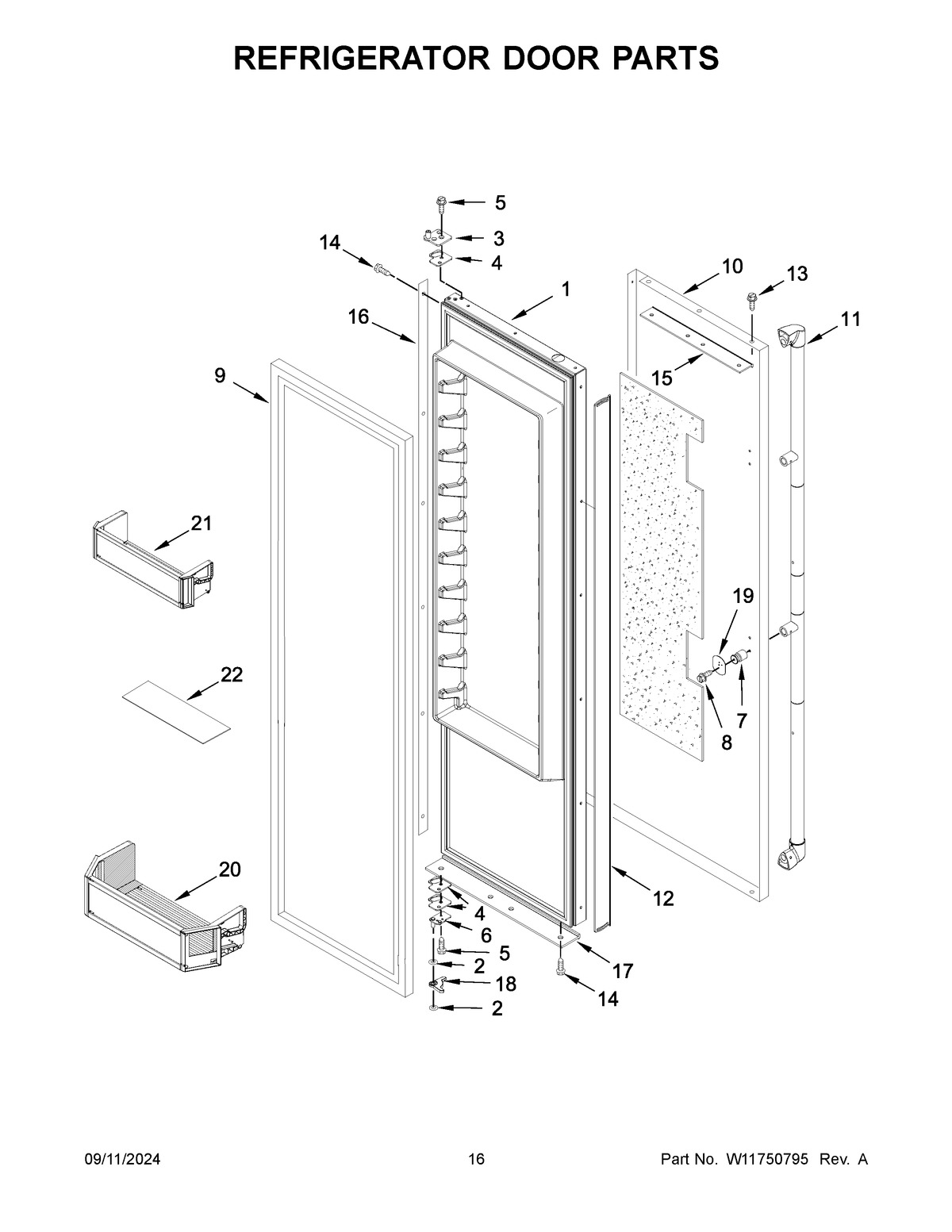

JBSS42E22L01 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR
2	WP2006346 Whirlpool Refrigerator Washer
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	STUD, HANDLE MOUNTING
8	WP308544 Whirlpool Screw
9	W10800817 Whirlpool Refrigerator FIP Gasket
10	W10800811 Whirlpool Refrigerator Door Skin
11	HANDLE, DOOR (STAINLESS)
12	W10758377 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	SCREW (STAINLESS)
15	SPACER, DOOR SKIN (TOP)
16	W10758378 Whirlpool Refrigerator Spacer
17	SPACER, DOOR SKIN BOTTOM
18	W11700297 Whirlpool Refrigerator Gap Hinge
19	W10127710 Whirlpool Refrigerator Plate
20	BIN, GALLON DOOR
21	BIN, SHALLOW DOOR
22	MAT, DOOR BIN (GALLON)
22A	MAT, DOOR BIN (SHALLOW)
