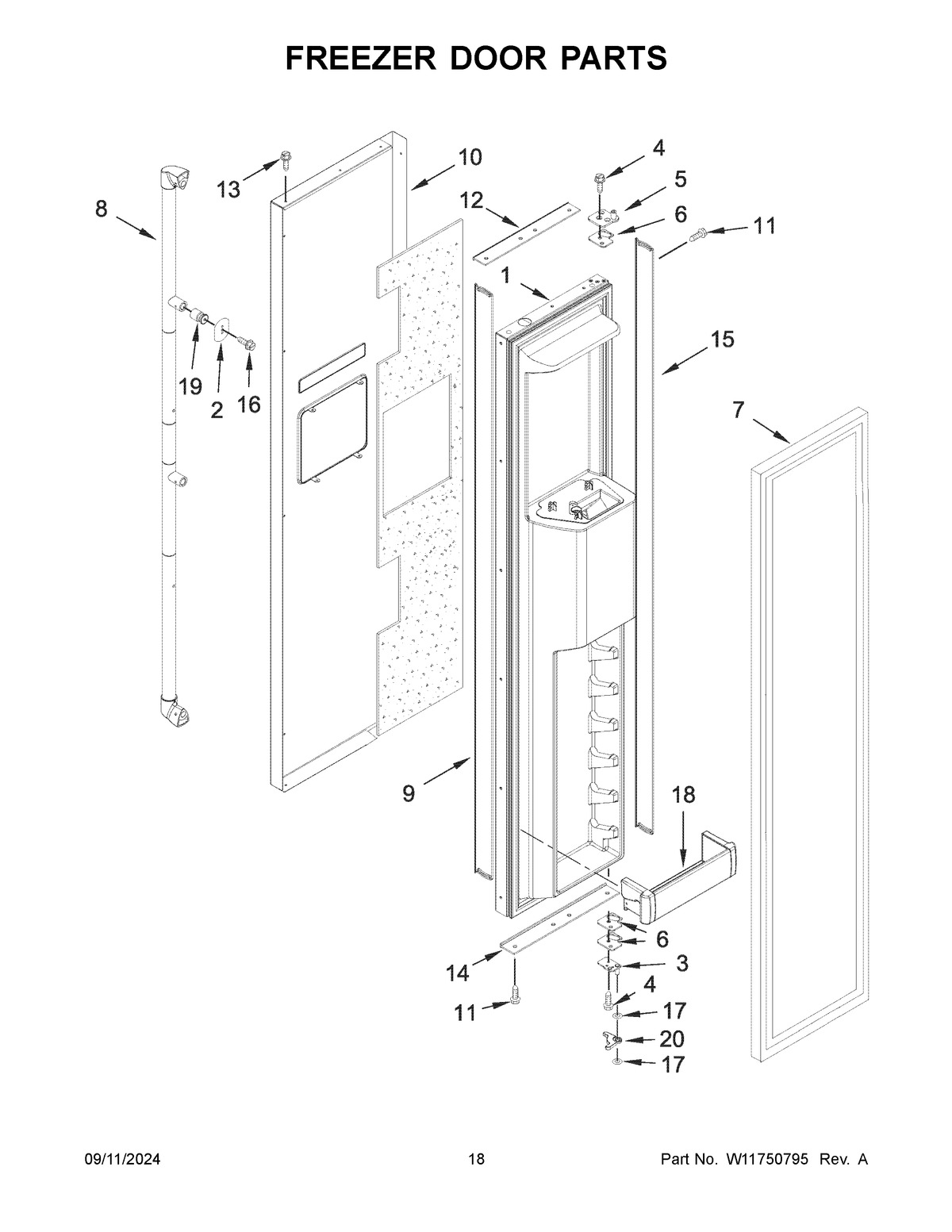

JBSS42E22L01 10 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER
2	W10127710 Whirlpool Refrigerator Plate
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
6	W11673500 Whirlpool Door Hinge
7	W10800809 Whirlpool Refrigerator FIP Gasket
8	HANDLE, DOOR (STAINLESS)
9	W10758377 Whirlpool Refrigerator Spacer
10	W11633383 Whirlpool Door Skin
11	SCREW (STAINLESS)
12	SPACER, DOOR SKIN (TOP)
13	W10759522 Whirlpool Screw
14	SPACER, DOOR SKIN (BOTTOM)
15	W10758378 Whirlpool Refrigerator Spacer
16	WP308544 Whirlpool Screw
17	W11700297 Whirlpool Refrigerator Gap Hinge
18	W11450392 Whirlpool Bin Containment
19	STUD, HANDLE MOUNTING
20	WP2006346 Whirlpool Refrigerator Washer
