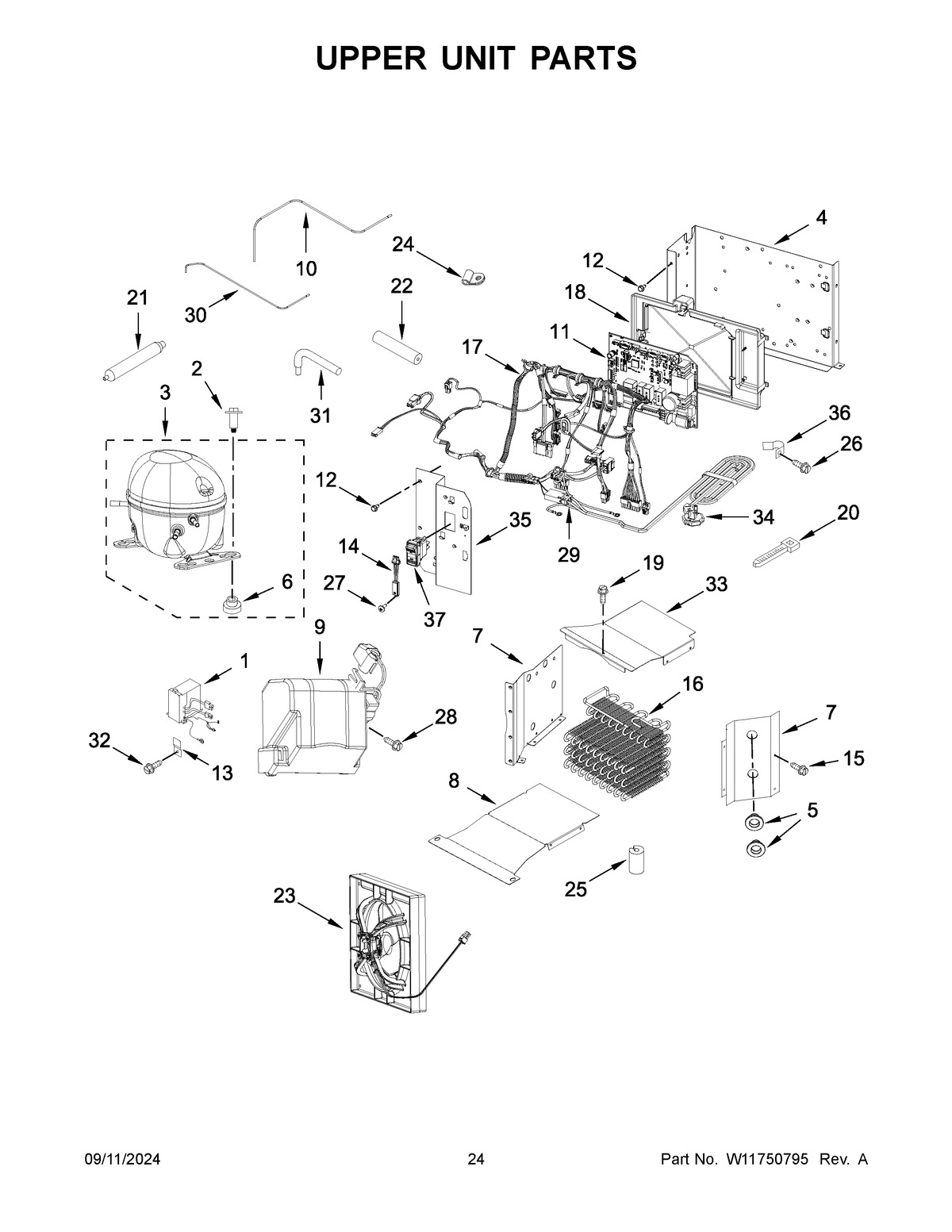

JBSS42E22L01 13 – UPPER UNIT PARTS

Products

Position	Product
NI	WPL ARIE8C9863F932DA503F825189A61422F70
1	INVRTR-BOX
2	SCREW
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
3B	W11504431 Whirlpool Microwave Coupler
3C	W11504416 Whirlpool Refrigerator Coupler
4	W10550831 Whirlpool Refrigerator Housing
5	GROMMET
6	W11661108 Whirlpool Grommet
7	SUPPORT, CONDENSER (LEFT HAND)
7A	SUPPORT, CONDENSER (RIGHT HAND)
8	BRACKET, CONDENSER BOTTOM
9	W11247667 Whirlpool Refrigerator Cover
10	TUBE, HEAT LOOP TRANSITION
11	CNTRL-ELEC+CORE
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	W11627456 Whirlpool Sensor
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	W11421662 Whirlpool Wire Harness
18	HOUSING, CONTROL BOARD
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	W11109499 Whirlpool Refrigerator Tube
21B	W11504432 Whirlpool Refrigerator Coupler
21A	W11504445 Whirlpool Refrigerator Coupler
22	SLEEVE
23	W11623099 Whirlpool Condenser Motor
24	W10833902 Whirlpool Refrigerator Clamp
25	W10852725 Whirlpool Refrigerator Grommet
26	WP489128 Whirlpool Refrigerator Screw
27	SCREW
28	WP9741232 Whirlpool Dishwasher Screw
29	2310195 Whirlpool Refrigerator Wire Jumper
30	TUBE, DRIER TRANSITI
31	TUBE, PROCESS
32	W11624204 Whirlpool Screw
33	WPL W11695783
34	2310196 Whirlpool Refrigerator Power Cord
35	BRACKET, CONTROL ASSEMBLY
36	W11234470 Whirlpool Refrigerator Clamp
37	SWITCH, POWER DISCONNECT
