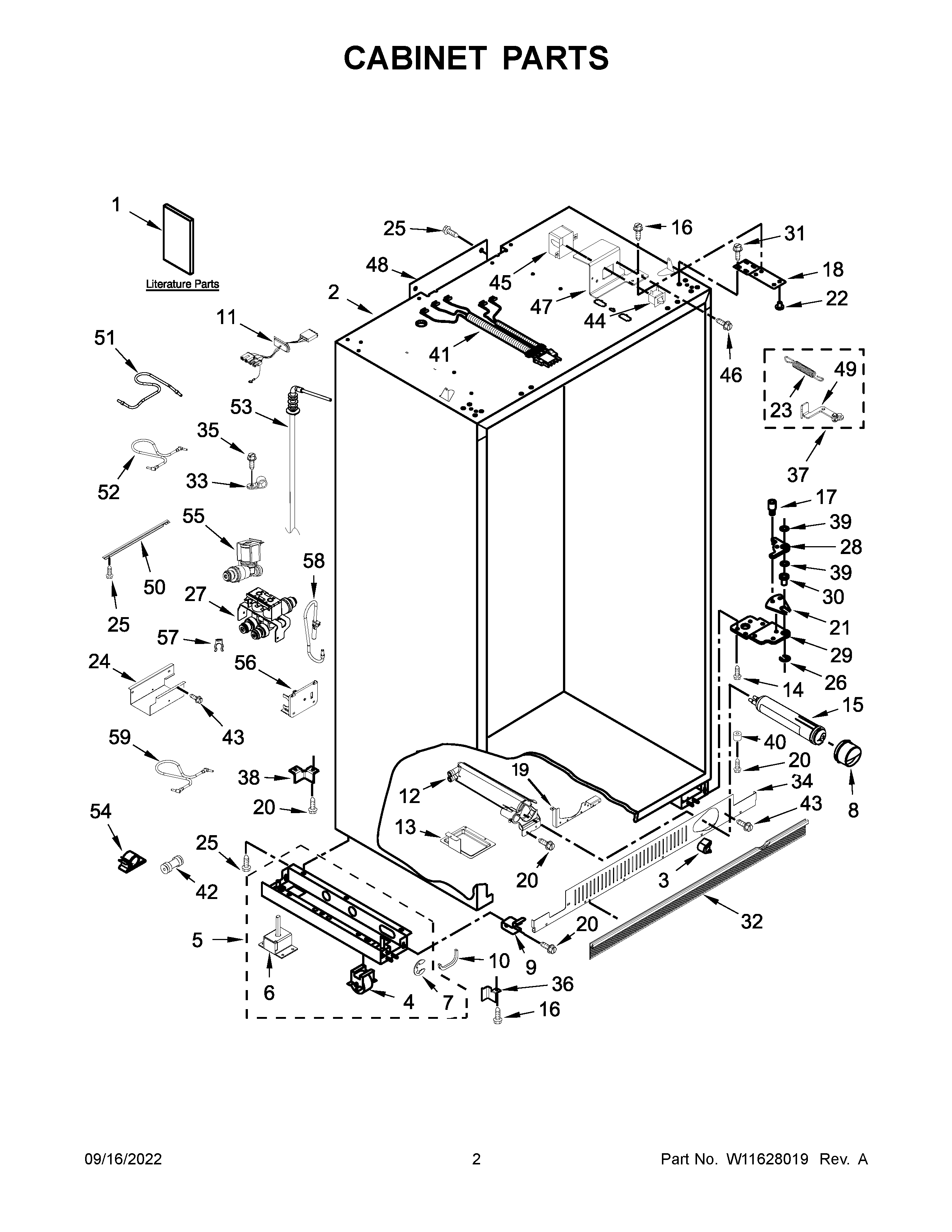

JBSS48E22L00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	TECH SHEET
1	USE AND CARE GUIDE
1C	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	WP2260503B Whirlpool Refrigerator Button
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	2005032 Whirlpool Refrigerator Leveler
7	2006841 Whirlpool Ring
8	W11238395 Whirlpool Refrigerator Filter Cap
9	W10839844 Whirlpool Refrigerator Bracket
10	2307584 Whirlpool Refrigerator Grommet
11	W11421923 Whirlpool Wire Harness
12	WPW10121140 Whirlpool Refrigerator Housing
13	2318189 Whirlpool Refrigerator Drip Pan
14	Screw
15	FILTER 3-SINGLE TEAL
16	WP489399 Whirlpool Refrigerator Screw
17	SCREW
18	2257644 Whirlpool Refrigerator Door Hinge
19	W10674648 Whirlpool Refrigerator Bracket
20	WP489464 Whirlpool Refrigerator Screw
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	W11500952 Whirlpool Refrigerator Hinge Bushing
23	WP2004517 Whirlpool Refrigerator Spring
24	W11439643 Whirlpool Shield Assembly
25	WP489069 Whirlpool Compactor Screw
26	WP489236 Whirlpool Refrigerator Ring
27	WPW10279866 Whirlpool Refrigerator Inlet Valve
28	W11700297 Whirlpool Refrigerator Gap Hinge
29A	WP2006780 Whirlpool Refrigerator Door Hinge
29	W10527053 Whirlpool Refrigerator Door Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
31	W11721628 Whirlpool Screw Assembly
32	W10859915 Whirlpool Grille
33	489348 Whirlpool Refrigerator Tube Clamp
34	GRILLE-FRT
35	W11624204 Whirlpool Screw
36	2006616 Whirlpool Refrigerator Bracket
36A	2006556 Whirlpool Refrigerator Bracket
37A	WP2307857 Whirlpool Refrigerator Extension
37	WPW10121046 Whirlpool Refrigerator Extension
38	2006617 Whirlpool Refrigerator Bracket
39	WP2006346 Whirlpool Refrigerator Washer
40	2005433 Whirlpool Refrigerator Spacer
41	W10780213 Whirlpool Harness Switch
42	WP2300868 Whirlpool Refrigerator Fitting
44	W11396033 Whirlpool Refrigerator Rocker Switch
44A	W11291138 Whirlpool Refrigerator Door Switch
45	COVER, SWITCH
46	WP965173 Whirlpool Dishwasher Screw
47	BRACKET, SWITCH (LEFT HAND)
47A	BRACKET, SWITCH (RIGHT HAND)
48	2215612 Whirlpool Refrigerator Duct Cover
49A	W10847927 Whirlpool Refrigerator Extension
49	W11298172 Whirlpool Refrigerator Extension
50	Support, Valve
51	W11663448 Whirlpool Water Tube
52	W11634221 Whirlpool Water Tube
53	W11212166 Whirlpool Refrigerator Inlet Tube
54	CLIP
55	W11246413 Whirlpool Refrigerator Inlet Valve
56	W10847867 Whirlpool Refrigerator Bracket
57	W10782424 Whirlpool Refrigerator Ring
57A	W10782423 Whirlpool Refrigerator Ring
58	W11634223 Whirlpool Water Tube
59	W11533506 Whirlpool Refrigerator Water Tube
