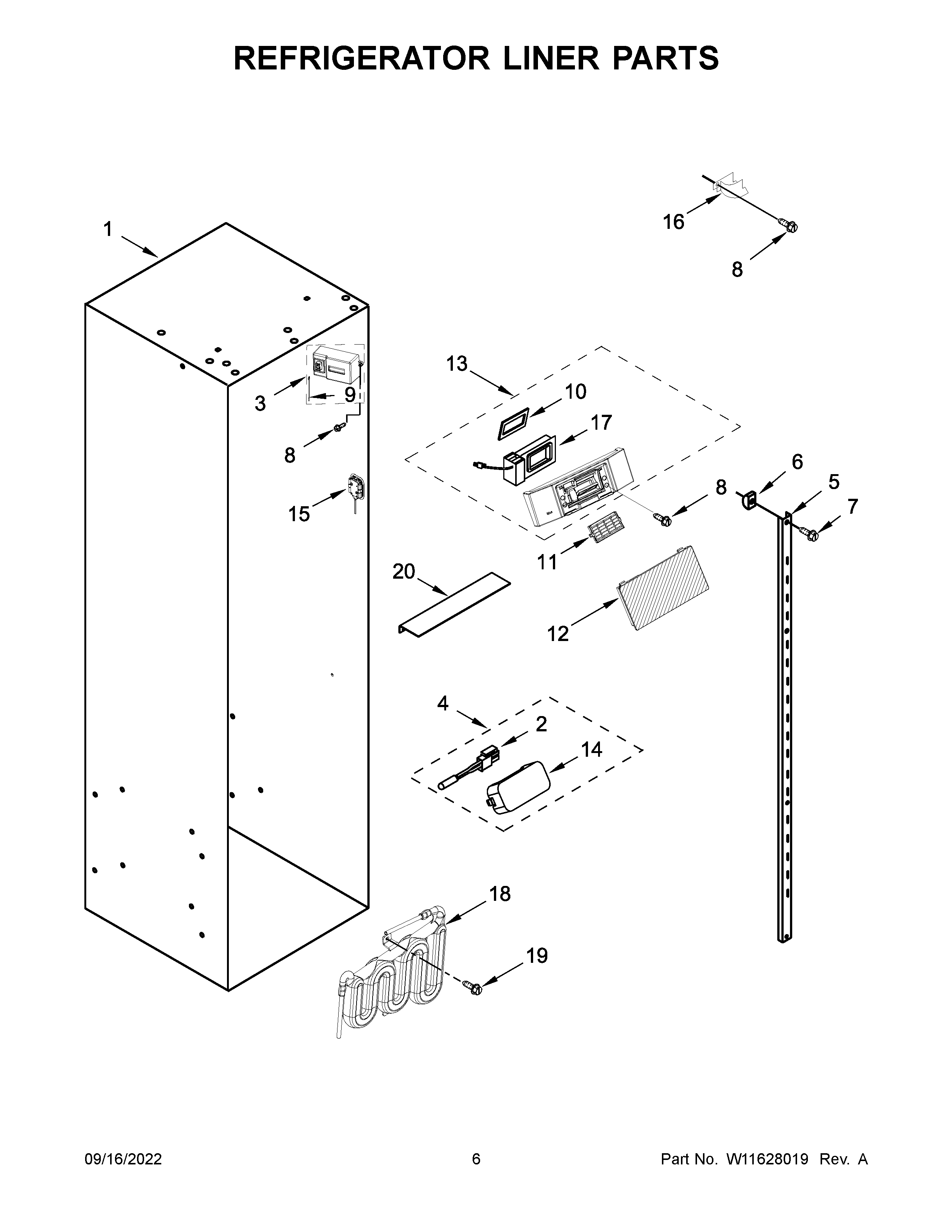

JBSS48E22L00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2188820 Whirlpool Refrigerator Thermistor
3	W11744513 Whirlpool Cover
4	COVER
5	LADDER, SHELF
6	2259445 Whirlpool Support Assembly
7	SCREW
8	W10678210 Whirlpool Screw
9	WP2302937 Whirlpool Refrigerator Thermistor
10	GASKET, AIR BAFFLE
11	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12	COVER, DIFFUSER ASSEMBLY
13	W11741459 Whirlpool Diffuser
14	W11235125 Whirlpool Cover
15	W11484836 Whirlpool Refrigerator Module
16	GUARD, AIR RETURN
17	WP2220377 Whirlpool Refrigerator Air Baffle
18	W11463083 Whirlpool Reservoir
19	W10141518 Whirlpool Refrigerator Screw
20	DIVERTER, CRISPER COVER
