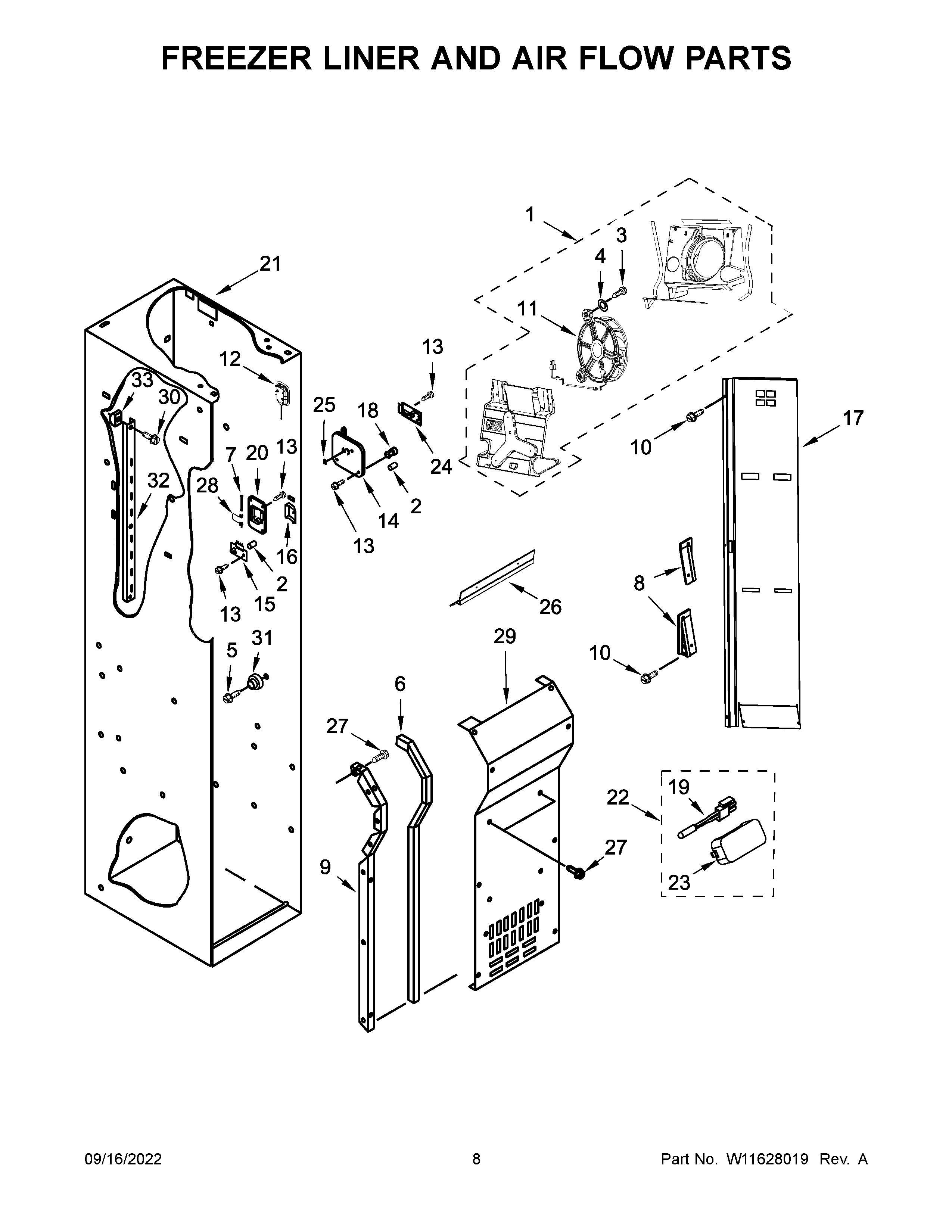

JBSS48E22L00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11631626 Whirlpool Evaporator Motor
2Tube, P.C. Board
3WP488729 Whirlpool Refrigerator Door Screw
4WASHER
5SCREW (BLACK)
6GASKET, EVAPORATOR COVER
7WP2198634 Whirlpool Door Pin
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9ARAIL, EVAPORATOR COVER (RIGHT HAND)
9RAIL, EVAPORATOR COVER (LEFT HAND)
10WP98008545 Whirlpool Screw
11W11618271 Whirlpool Evaporator Motor
12W11484836 Whirlpool Refrigerator Module
132006254 Whirlpool Refrigerator Screw
14COVER, RECEIVER
15W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
16FLIPPER
17DUCT, AIR
18WP2198643 Whirlpool Refrigerator Lens
19WP2188820 Whirlpool Refrigerator Thermistor
20COVER
21CABINET (NOT A SERVICEABLE PART)
22COVER
23W11235125 Whirlpool Cover
25SLIDE, ICEMAKER SHUT OFF
26SUPPORT, AIR DUCT
27W10678210 Whirlpool Screw
28WP2198635 Whirlpool Refrigerator Spring
29COVER, EVAPORATOR
30SCREW
31ASSEMBLY, SHELF STUD (INCLUDES SCREW)
32LADDER, SHELF
332259445 Whirlpool Support Assembly
