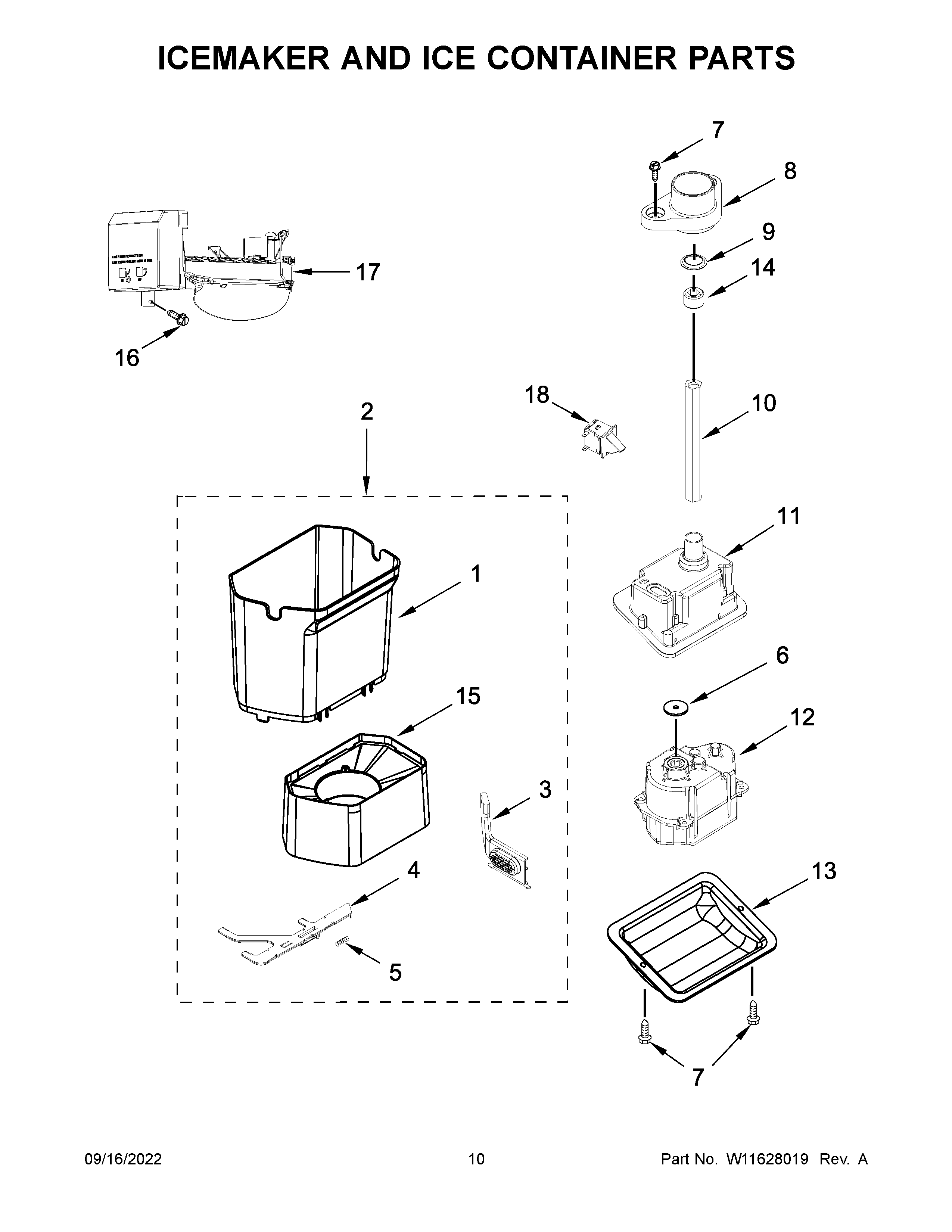

JBSS48E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

JBSS48E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

JBSS48E22L00 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2222970 Whirlpool Refrigerator Ice Bin
2ICE-CONTNR
3BUTTON, BIN
4W10134785 Whirlpool Refrigerator Bin Latch
5WP2198608 Whirlpool Refrigerator Spring
6WPW10254073 Whirlpool Refrigerator Washer
7WP8281163 Whirlpool Refrigerator Screw
8CLIP, SHAFT
9WP2198628 Whirlpool Door Seal
10WP2318082 Whirlpool Ice Ejector Bar
11ENCLOSURE, MOTOR
12W10822606 Whirlpool Dishwasher Dispenser Motor
13COVER, DISPENSER MOTOR
14WP2315559 Whirlpool Motor Coupling
15BIN, CRUSHER
16W10678210 Whirlpool Screw
17ICEMAKER
18SWITCH, AUGER MOTOR
