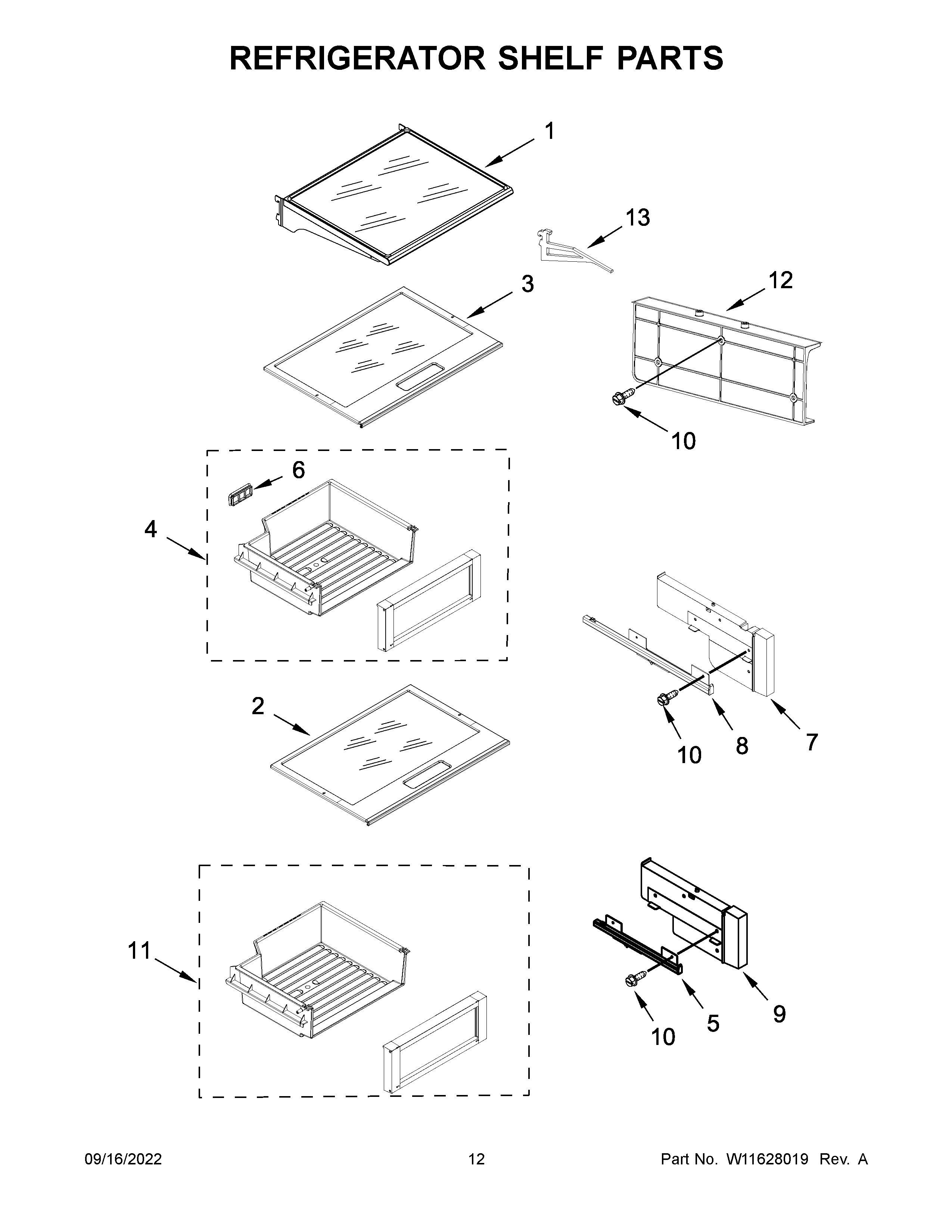

JBSS48E22L00 07 – REFRIGERATOR SHELF PARTS

JBSS48E22L00 07 – REFRIGERATOR SHELF PARTS

Written by

in

JBSS48E22L00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WPW10187538 Whirlpool Refrigerator Glass Shelf
2ASSEMBLY, MEAT PAN COVER
3ASSEMBLY, CRISPER COVER
4W11630279 Whirlpool Crisper Pan
5AW10732727 Whirlpool Refrigerator Slide
5W10844011 Whirlpool Refrigerator Slide
62307810 Whirlpool Refrigerator Air Duct
7SPACER, CRISPER
8AW10732303 Whirlpool Refrigerator Slide
8W10844010 Whirlpool Refrigerator Slide
9SPACER, MEAT
10AWP3400886 Whirlpool Refrigerator Screw
10WP8533928 Whirlpool Refrigerator Screw
11W11630280 Whirlpool Meat Pan
12SPACER, SHELF LS
13W11690161 Whirlpool Support
