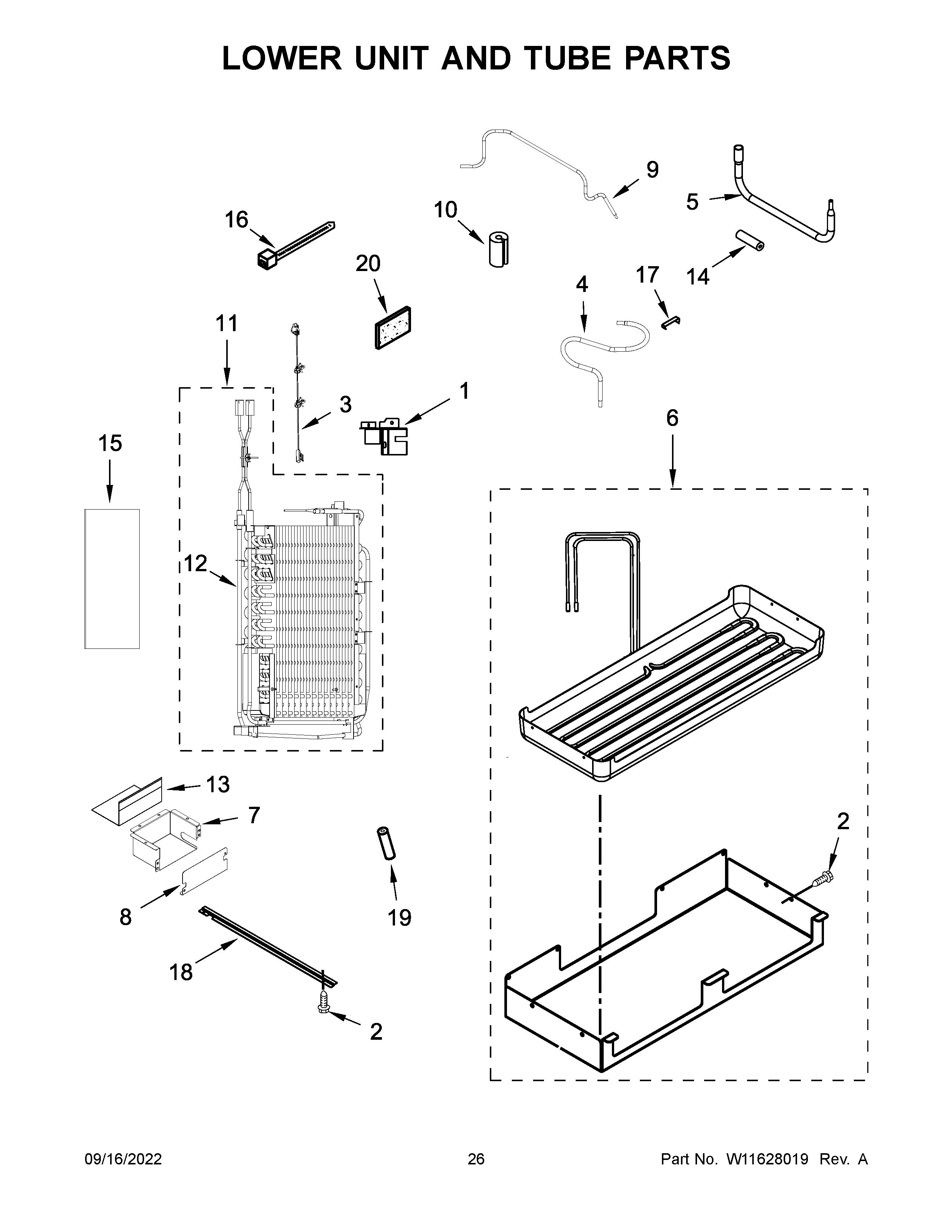

JBSS48E22L00 14 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	BRACKET, EVAPORATOR RIGHT TOP
2	WP489069 Whirlpool Compactor Screw
3	W11629268 Whirlpool Thermistor
4	TUBE
5	TUBE
6	ASSEMBLY, DRAIN PAN
7	WPW10309012 Whirlpool Wire Cover
8	WIRE BOX COVER
9	TUBE, DISCHARGE
10	W11715935 Whirlpool Dampener
11A	W11504450 Whirlpool Refrigerator Coupler
11B	W11506620 Whirlpool Refrigerator Coupler
11	W11629714 Whirlpool Evaporator
12	W11626107 Whirlpool Heater Assembly
13	W10321050 Whirlpool Refrigerator Shield
14	SLEEVE
15	GASKET, EVAPORATOR BYPASS
16	WPW10339879 Whirlpool Wire Tie
17	W10169509 Whirlpool Refrigerator Clip
18	2320554 Whirlpool Bracket
19	2215648 Whirlpool Refrigerator Dampener
20	W11553819 Whirlpool Refrigerator Insulation
