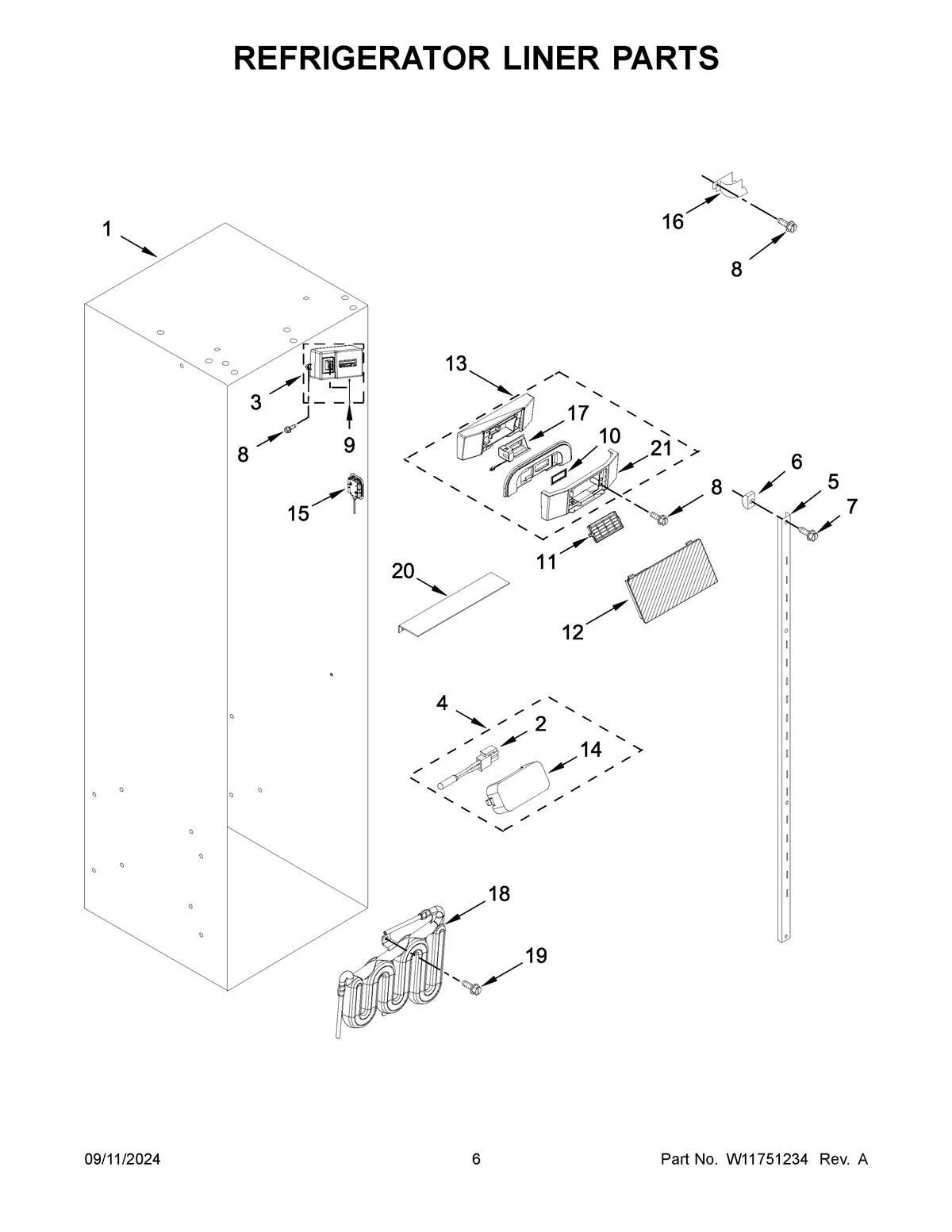

JBSS48E22L01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2WP2188820 Whirlpool Refrigerator Thermistor
3W11744513 Whirlpool Cover
4COVER
5LADDER, SHELF
6520965 Whirlpool Refrigerator Support
7SCREW
8W10678210 Whirlpool Screw
9WP2302937 Whirlpool Refrigerator Thermistor
10GASKET, AIR BAFFLE
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12COVER, DIFFUSER ASSEMBLY
13W11741459 Whirlpool Diffuser
14W11235125 Whirlpool Cover
15W11484836 Whirlpool Refrigerator Module
16GUARD, AIR RETURN
17WP2220377 Whirlpool Refrigerator Air Baffle
18W11463083 Whirlpool Reservoir
19W10141518 Whirlpool Refrigerator Screw
20DIVERTER, CRISPER COVER
21COVER, AIR DIFFUSER
