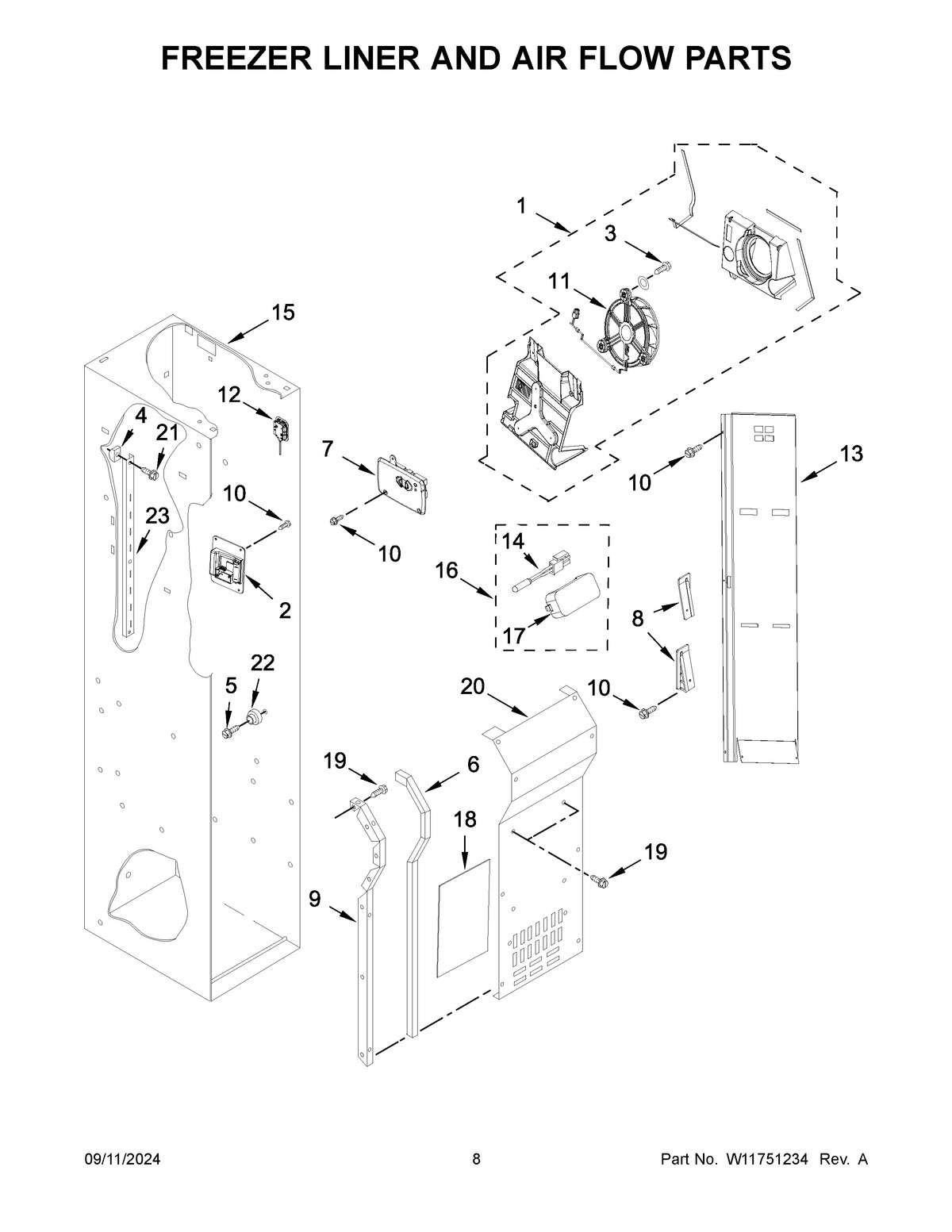

JBSS48E22L01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11631626 Whirlpool Evaporator Motor
2CNTRL-ELEC + CORE
3WP488729 Whirlpool Refrigerator Door Screw
4520965 Whirlpool Refrigerator Support
5SCREW (BLACK)
6GASKET, EVAPORATOR COVER
8AWEDGE, AIR DUCT (RIGHT HAND)
8WEDGE, AIR DUCT (LEFT HAND)
9ARAIL, EVAPORATOR COVER (RIGHT HAND)
9RAIL, EVAPORATOR COVER (LEFT HAND)
10WP98008545 Whirlpool Screw
11W11618271 Whirlpool Evaporator Motor
12W11484836 Whirlpool Refrigerator Module
13DUCT, AIR
14WP2188820 Whirlpool Refrigerator Thermistor
15LINER (NOT A SERVICEABLE PART)
16COVER
17W11235125 Whirlpool Cover
18GASKET, FC EVAPORATOR BYPASS
19W10678210 Whirlpool Screw
20COVER, EVAPORATOR
21SCREW
22ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23LADDER, SHELF
