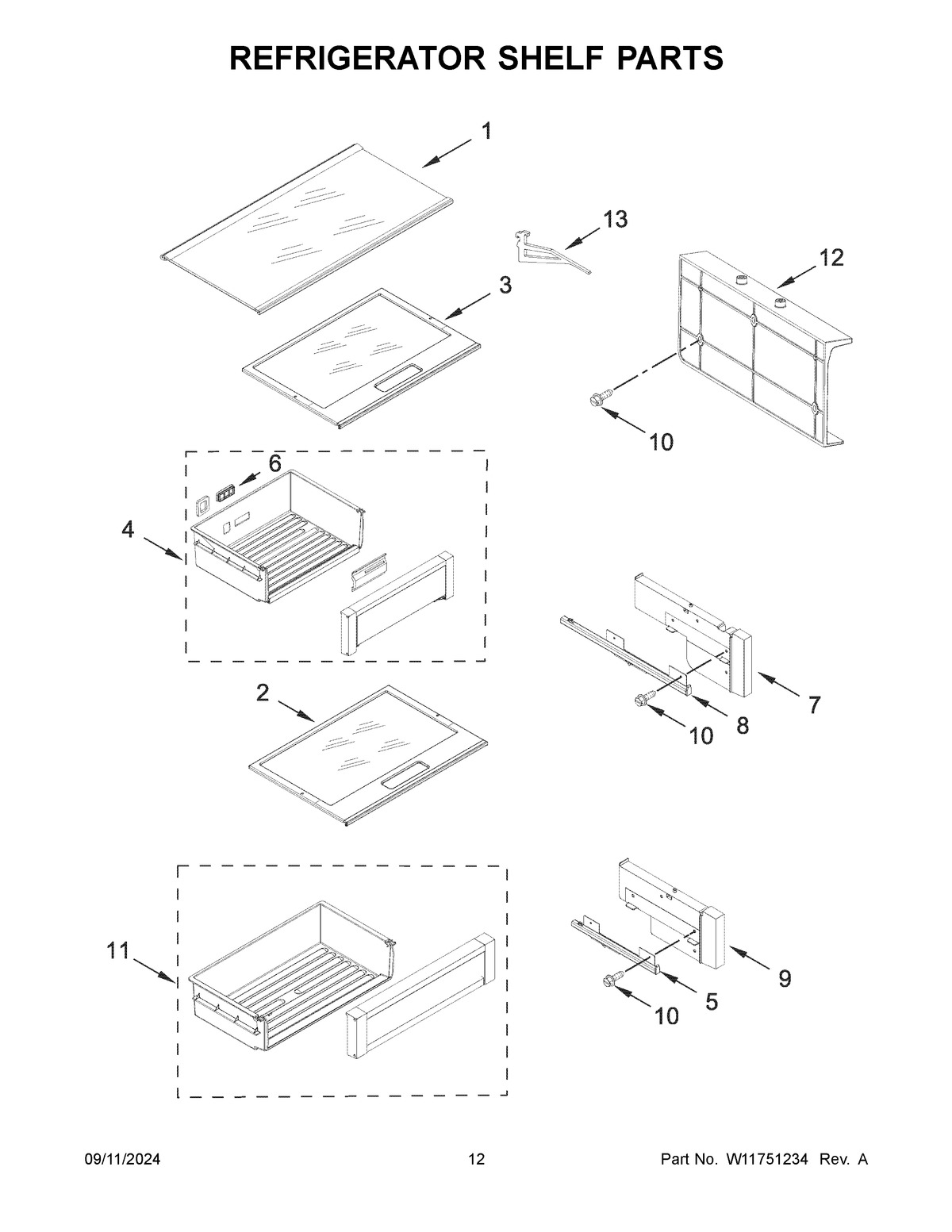

JBSS48E22L01 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WPW10187538 Whirlpool Refrigerator Glass Shelf
2	ASSEMBLY, MEAT PAN COVER
3	ASSEMBLY, CRISPER COVER
4	PAN ASSEMBLY, CRISPER
5A	W10732727 Whirlpool Refrigerator Slide
5	W10844011 Whirlpool Refrigerator Slide
6	2307810 Whirlpool Refrigerator Air Duct
7	SPACER, CRISPER
8A	W10732303 Whirlpool Refrigerator Slide
8	W10844010 Whirlpool Refrigerator Slide
9	SPACER, MEAT
10A	WP3400886 Whirlpool Refrigerator Screw
10	WP8533928 Whirlpool Refrigerator Screw
11	W11630280 Whirlpool Meat Pan
12	SPACER, SHELF LS
13	W11690161 Whirlpool Support
