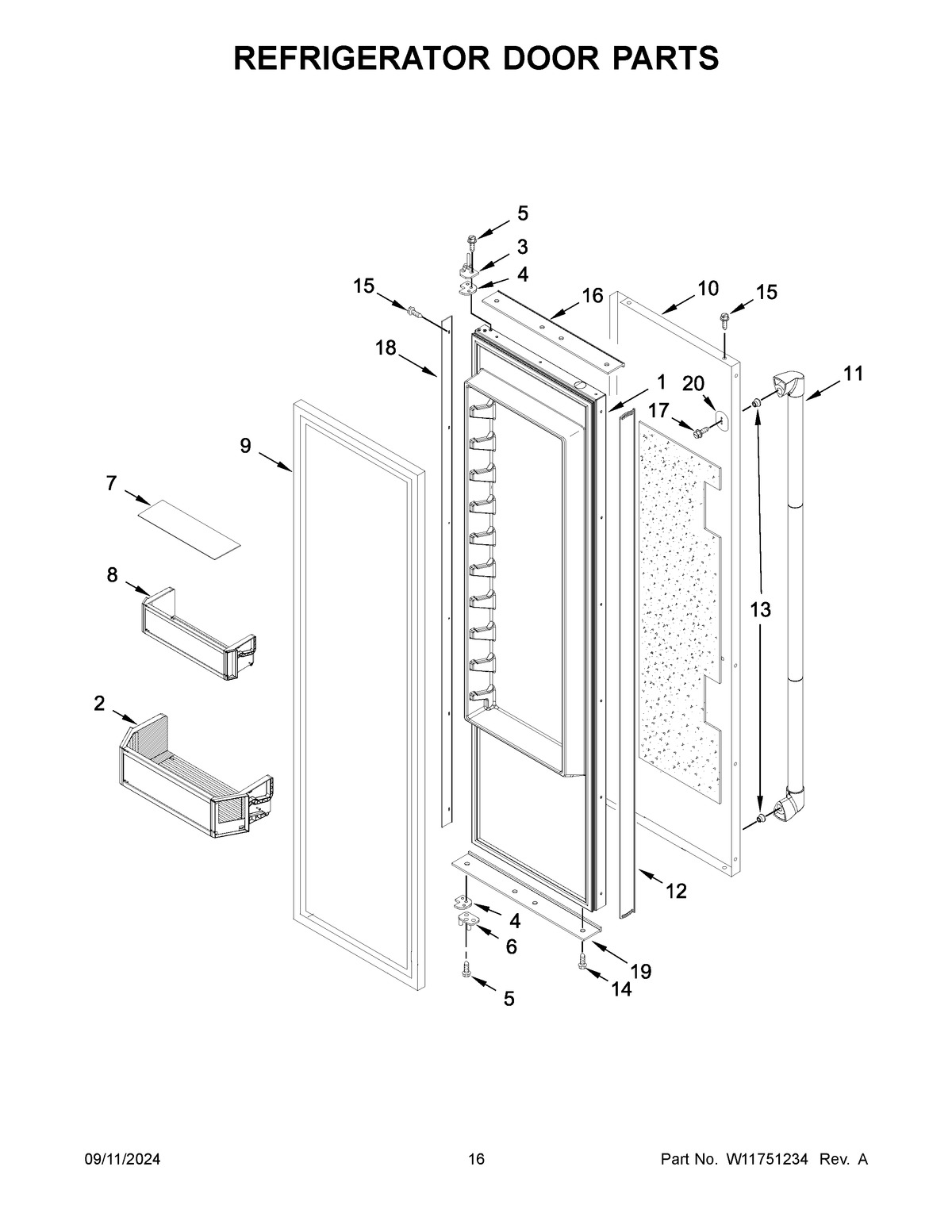

JBSS48E22L01 09 – REFRIGERATOR DOOR PARTS

JBSS48E22L01 09 – REFRIGERATOR DOOR PARTS

Written by

in

JBSS48E22L01 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10800808 Whirlpool Refrigerator Foam In Place Door Stainless Steel
2BIN, GALLON DOOR
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7AMAT, DOOR BIN (GALLON)
7MAT, DOOR BIN (SHALLOW)
8BIN, SHALLOW DOOR
9W10800810 Whirlpool Refrigerator FIP Gasket
10W10800812 Whirlpool Refrigerator Door Skin
11HANDLE, DOOR (STAINLESS)
12W10758377 Whirlpool Refrigerator Spacer
13STUD, HANDLE MOUNTING
14W10759522 Whirlpool Screw
15SCREW (STAINLESS)
16SPACER, DOOR (TOP)
17WP308544 Whirlpool Screw
18W10758378 Whirlpool Refrigerator Spacer
19SPACER, DOOR (BOTTOM)
20W10127710 Whirlpool Refrigerator Plate
