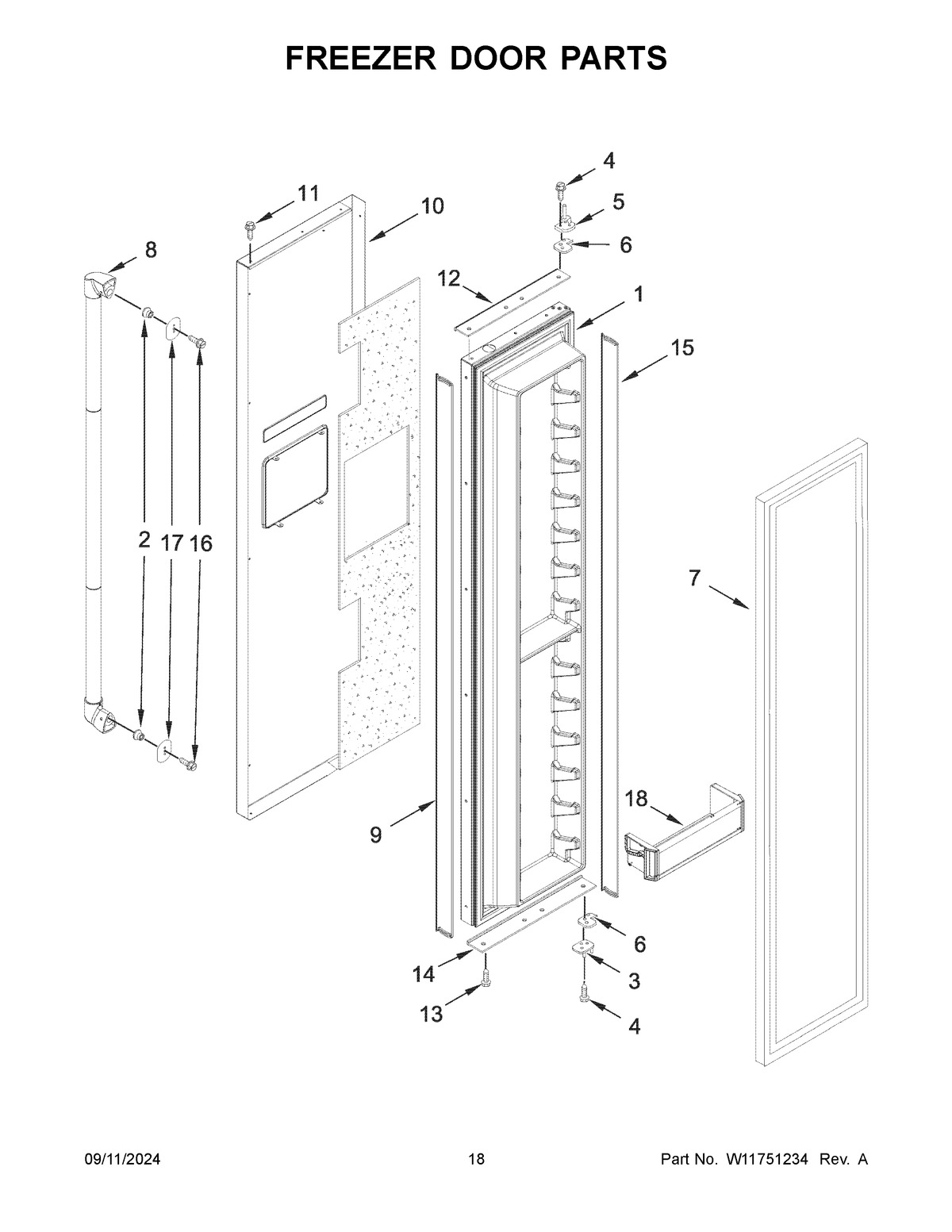

JBSS48E22L01 10 – FREEZER DOOR PARTS

Products

PositionProduct
1DOR-FIP (DROP SHIP)
2STUD, HANDLE MOUNTING
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7W10800818 Whirlpool Refrigerator FIP Gasket
8HANDLE, DOOR (STAINLESS)
9W10758377 Whirlpool Refrigerator Spacer
10W11633384 Whirlpool Door Skin
11SCREW (STAINLESS)
12W10758114 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14W10766559 Whirlpool Refrigerator Spacer
15W10758378 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17W10127710 Whirlpool Refrigerator Plate
18BIN, SHALLOW
