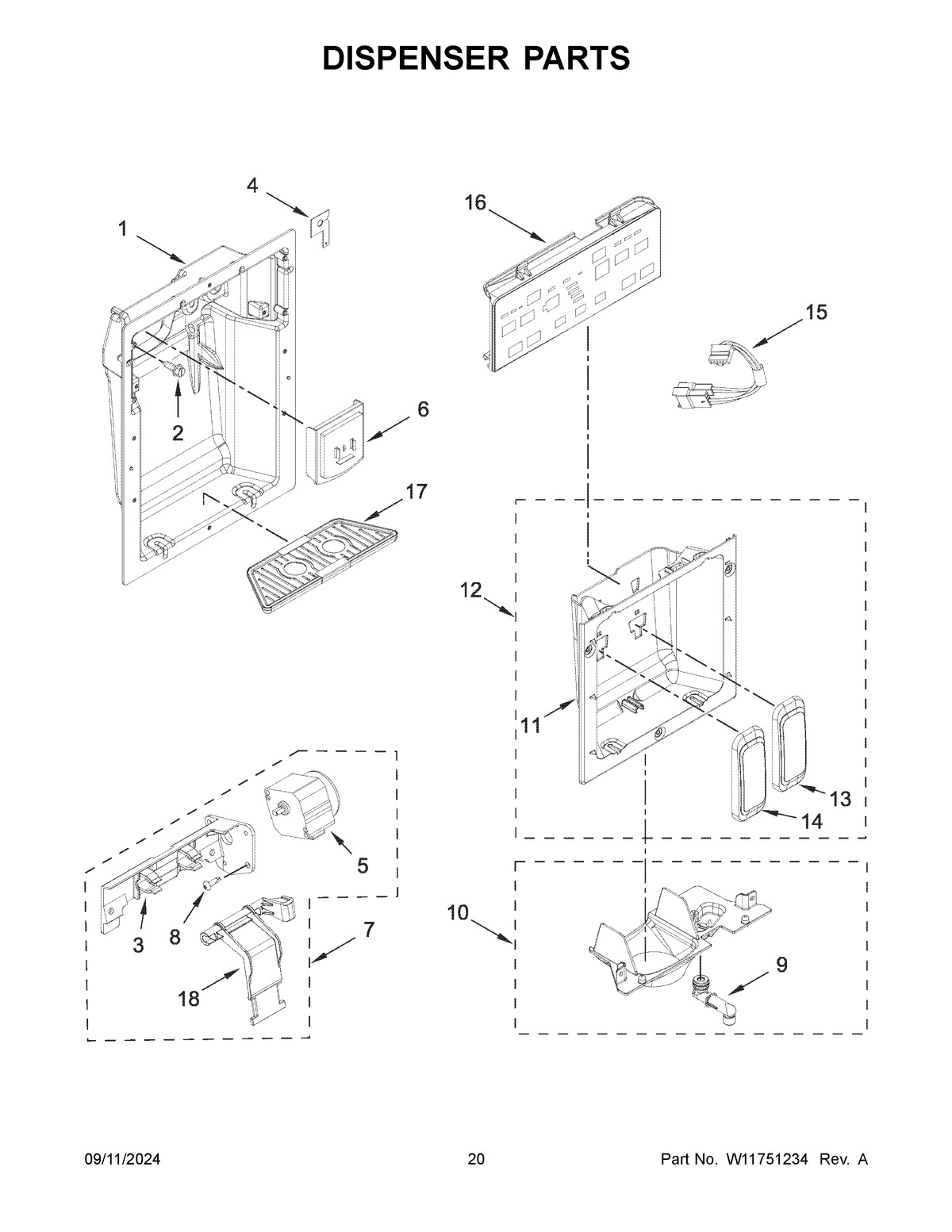

JBSS48E22L01 11 – DISPENSER PARTS

JBSS48E22L01 11 – DISPENSER PARTS

Written by

in

JBSS48E22L01 11 – DISPENSER PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2WP489069 Whirlpool Compactor Screw
3W10542660 Whirlpool Refrigerator Bracket
42305447 Whirlpool Refrigerator Clip
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6WPW10504458 Whirlpool Refrigerator Door Chute
7WPW10546285 Whirlpool Refrigerator Motor
8WP4449745 Whirlpool Screw
9WP2305235 Whirlpool Refrigerator Spigot
10W11649219 Whirlpool Separator
11HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12)
12HOUSING, PAD ASSEMBLY
13ASSEMBLY, WATER PADDLE
14ASSEMBLY, ICE PADDLE
15W11629730 Whirlpool Jumper Wire
16W11626108 Whirlpool Refrigerator UI Panel + Core
17ASSEMBLY, DRIP TRAY (GRAY)
18W10542663 Whirlpool Refrigerator Support
