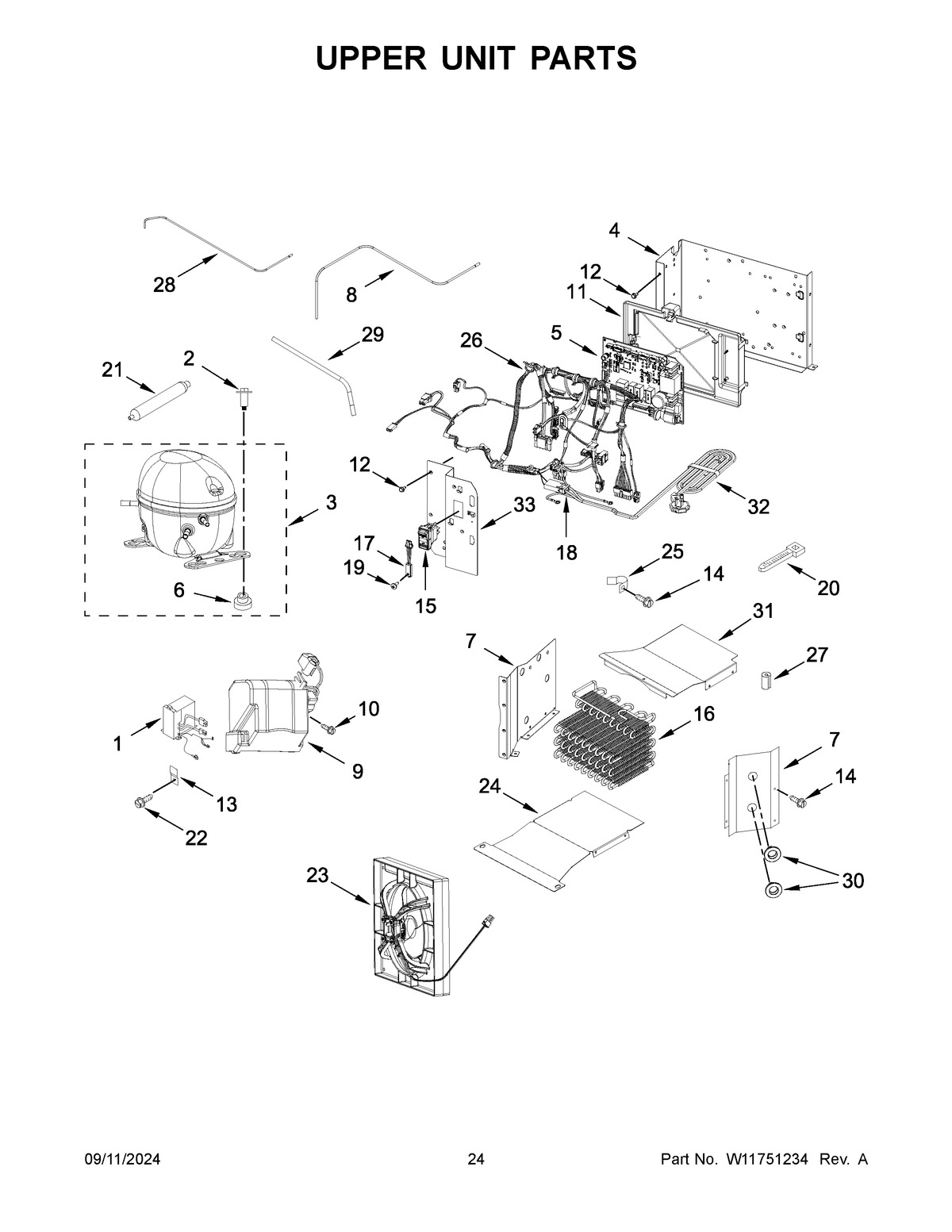

JBSS48E22L01 13 – UPPER UNIT PARTS

Products

Position	Product
NI	WPL ARIC72CB5B276C01BB311A52CEB21CF5406
1	INVRTR-BOX
2	SCREW
3C	W11504416 Whirlpool Refrigerator Coupler
3B	W11504431 Whirlpool Microwave Coupler
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
4	W10550831 Whirlpool Refrigerator Housing
5	CNTRL-ELEC+CORE
6	W11661108 Whirlpool Grommet
7A	SUPPORT, CONDENSER (RIGHT HAND)
7	SUPPORT, CONDENSER (LEFT HAND)
8	TUBE, HEAT LOOP TRANSITION
9	W11247667 Whirlpool Refrigerator Cover
10	WP9741232 Whirlpool Dishwasher Screw
11	HOUSING, CONTROL BOARD
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	WP489069 Whirlpool Compactor Screw
15	SWITCH, POWER DISCONNECT
16	CONDENSER
17	W11627456 Whirlpool Sensor
18	2310195 Whirlpool Refrigerator Wire Jumper
19	SCREW
20	WPW10339879 Whirlpool Wire Tie
21B	W11504432 Whirlpool Refrigerator Coupler
21A	W11504445 Whirlpool Refrigerator Coupler
21	W11109499 Whirlpool Refrigerator Tube
22	W11624204 Whirlpool Screw
23	W11623099 Whirlpool Condenser Motor
24	BRACKET, CONDENSER BOTTOM
25	W11234470 Whirlpool Refrigerator Clamp
26	W11421662 Whirlpool Wire Harness
27	W10852725 Whirlpool Refrigerator Grommet
28	TUBE, DRIER TRANSITI
29	TUBE, PROCESS
30	GROMMET
31	WPL W11695783
32	2310196 Whirlpool Refrigerator Power Cord
33	BRACKET, CONTROL ASSEMBLY
