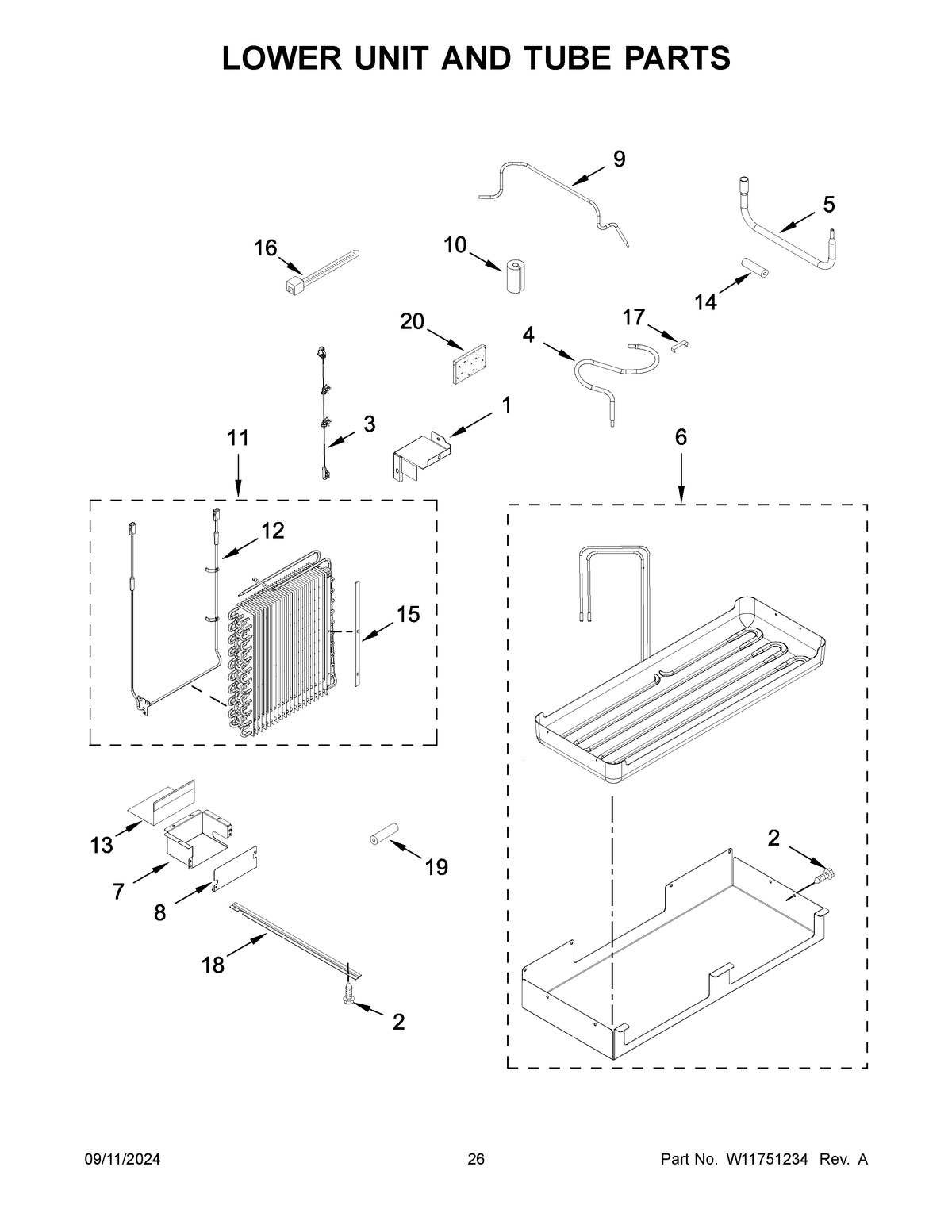

JBSS48E22L01 14 – LOWER UNIT AND TUBE PARTS

JBSS48E22L01 14 – LOWER UNIT AND TUBE PARTS

Written by

in

JBSS48E22L01 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1BRACKET, EVAPORATOR RIGHT TOP
2WP489069 Whirlpool Compactor Screw
3W11629268 Whirlpool Thermistor
4TUBE
5TUBE
6ASSEMBLY, DRAIN PAN
7COVER, WIRING BOTTOM
8COVER, WIRE BOX
9TUBE, DISCHARGE
10W11715935 Whirlpool Dampener
11W11629714 Whirlpool Evaporator
11BW11506620 Whirlpool Refrigerator Coupler
11AW11504450 Whirlpool Refrigerator Coupler
12W11626107 Whirlpool Heater Assembly
13W10321050 Whirlpool Refrigerator Shield
14SLEEVE
15W10432308 Whirlpool Gasket
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
192215648 Whirlpool Refrigerator Dampener
20W11553819 Whirlpool Refrigerator Insulation
