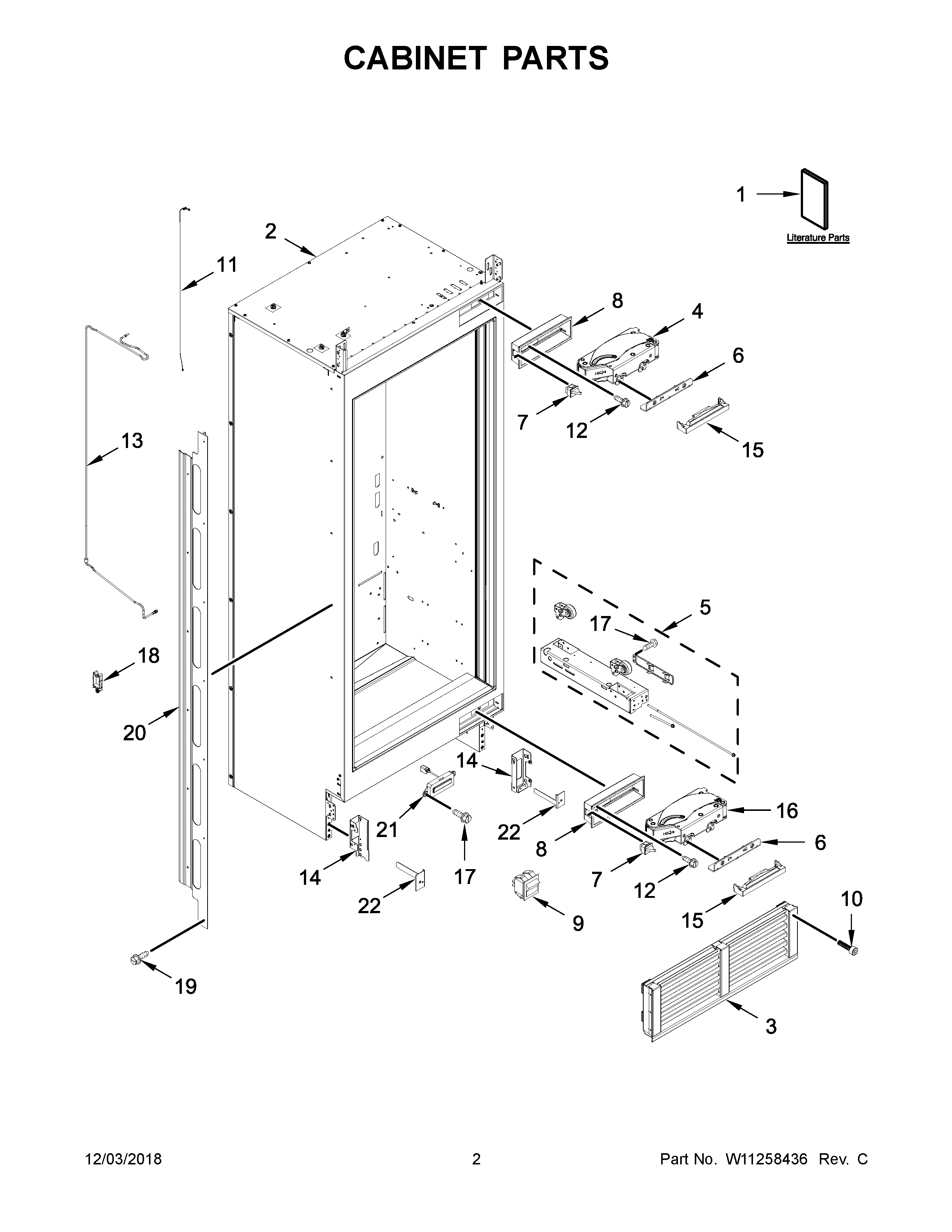

JBZFL18IGX00 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1C	TECH SHEET (ENGLISH)
1A	ENERGY GUIDE
1D	TECH SHEET (FRENCH)
2	LINER (NOT A SERVICEABLE PART)
3	GRILLE (CHARCOAL SPARKLE)
4	HINGE, TOP (CHARCOAL SPARKLE)
5	ASSEMBLY, ROLLER BASE (LEFT HAND)
5A	ASSEMBLY, ROLLER BASE (RIGHT HAND)
6	BRACKET, HINGE ATTACH
7	SWITCH, LIGHT
8	TRIM, HINGE (CHARCOAL SPARKLE)
9	Switch, Power Disconnect
10	SCREW
11	HARNESS, ANTENNA
12	SCREW (BLACK)
13	TUBE, WATER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
14A	ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND)
14	ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND)
15	COVER, HINGE BRACKET
16	HINGE, BOTTOM (CHARCOAL SPARKLE)
17	SCREW 8-32 X 1/2
18	CLIP, WIRE
19	MAY W10141645
20A	TRIM, SIDE (EBONY (NON-HINGE SIDE))
20	TRIM, SIDE (EBONY (LEFT HAND))
21	MODULE, WIFI
22A	ASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND)
22	ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND)
