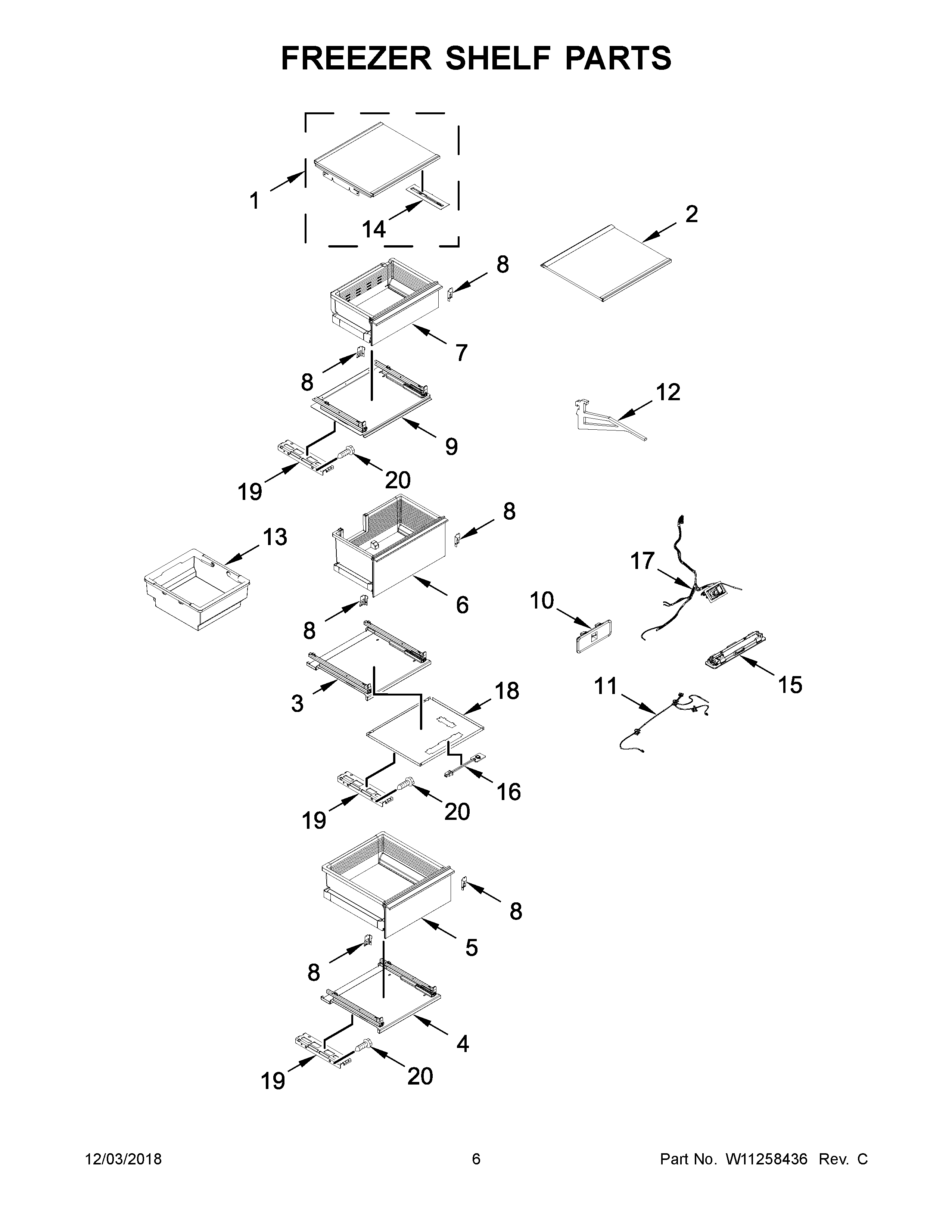

JBZFL18IGX00 04 – FREEZER SHELF PARTS

Products

Position	Product
1	ASSEMBLY, DELI SHELF (INCLUDES THERMISTOR)
2	ASSEMBLY, SHELF
3	ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4	ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5	ASSEMBLY, CRISPER
6	ASSEMBLY, ICE CRISPER
7	ASSEMBLY, DELI
8A	CLIP, RETAINER (RIGHT HAND)
8	CLIP, RETAINER (LEFT HAND)
9	ASSEMBLY, DELI SLIDE SUPPORT
10	HOUSING, CRISPER THERMISTOR
11	HARNESS, CRISPER LED
12	SIDEARM, SHELF
13	ASSEMBLY, ICE BIN
14	THERMISTOR (INCLUDES COVER)
15	ASSEMBY, LIGHT STRIP
16	LIGHT, LED
17	HARNESS, MULLION
18	PLATE, CRISPER LED SUPPORT
19	BRACKET, SUPPORT
20	SCREW
