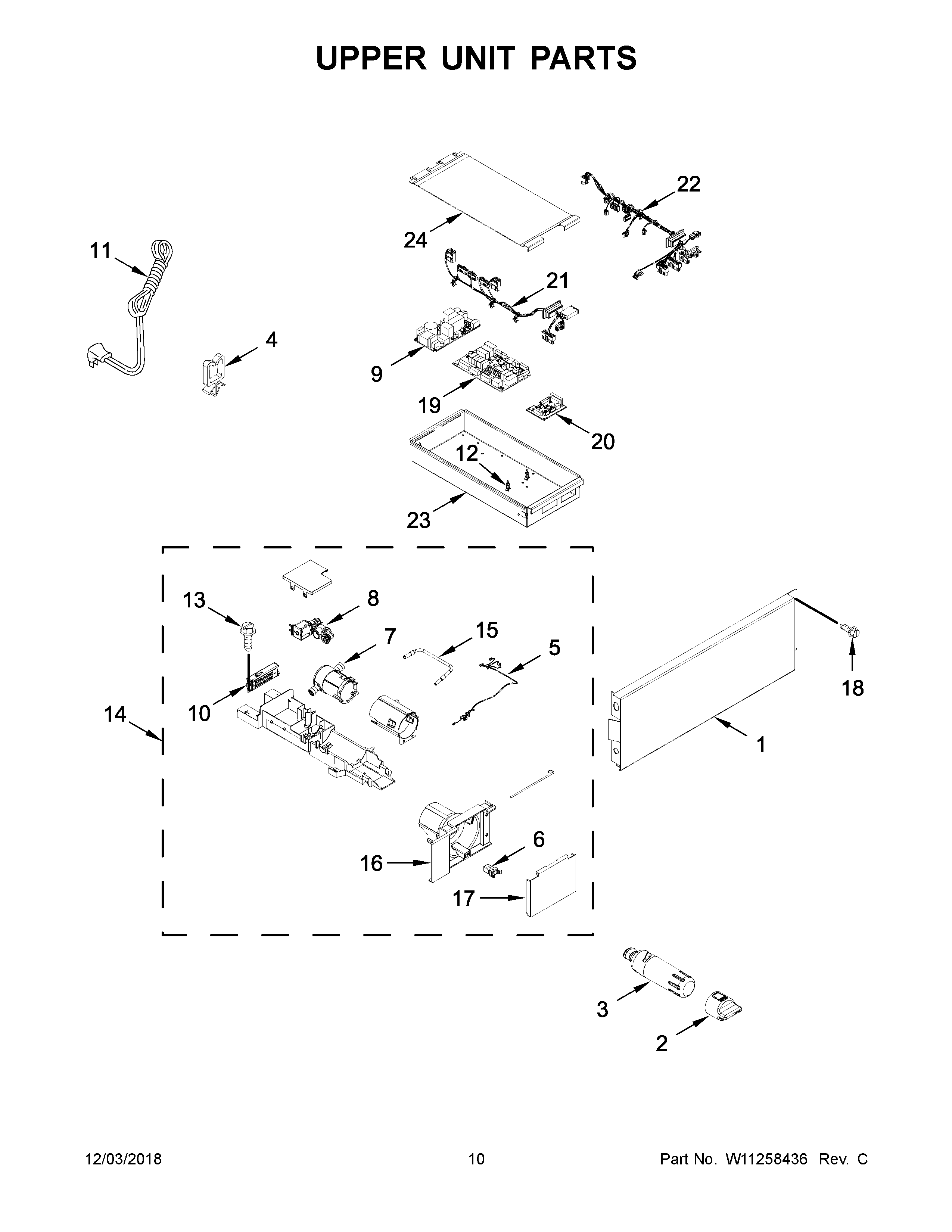

JBZFL18IGX00 06 – UPPER UNIT PARTSadmin2025-04-26T09:16:15+00:00JBZFL18IGX00 06 – UPPER UNIT PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, COVER PLATE (CHARCOAL SPARKLE) |
| 2 | CAP, WATER FILTER (GREY) |
| 3 | FILTER, WATER |
| 4 | CLIP |
| 5 | HARNESS, VALVE (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 6 | LATCH, PUSH |
| 7 | HOUSING, WATER FILTER (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 8 | VALVE, SINGLE SOLENOID (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 9 | SUPPLY, POWER |
| 10 | ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 11 | CORD, POWER |
| 12 | Spacer (5) |
| 13 | SCREW |
| 14 | ASSEMBLY, FILTER (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 15 | TUBE, FILTER INLET |
| 16 | MOUNT, FILTER |
| 17 | COVER, FILTER MOUNT |
| 18 | SCREW |
| 19 | CONTROL, ELECTRONIC |
| 20 | CONTROL, ELECTRONIC (LED DRIVER) |
| 21 | HARNESS, HV |
| 22 | HARNESS, LV |
| 23 | TRAY , CONTROL BOARD MOUNTING |
| 24 | LID, COVER |
