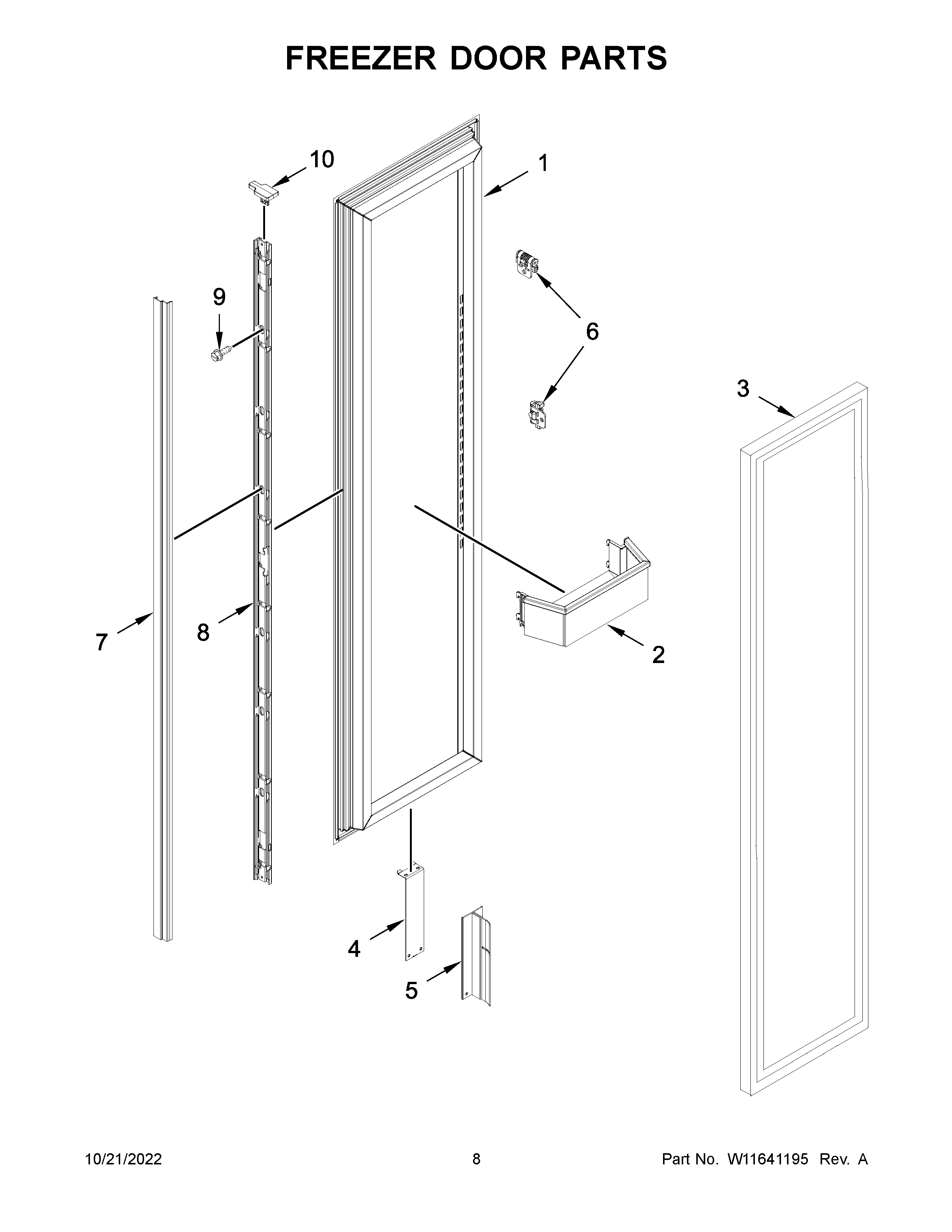

JBZFL18IGX10 05 – FREEZER DOOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11234308 Whirlpool Spacer
1ASSEMBLY, FREEZER DOOR
2ASSEMBLY, DOOR BIN
3GASKET, DOOR (BLACK)
4W11235096 Whirlpool Refrigerator Bracket
5W11233377 Whirlpool Refrigerator Divider
6AW11235098 Whirlpool Refrigerator Adapter
6W11235097 Whirlpool Adapter
7W11299811 Whirlpool Refrigerator Door Trim
8W11302040 Whirlpool Refrigerator Bracket
9W11302041 Whirlpool Refrigerator Screw
10W11302061 Whirlpool Refrigerator Trim
