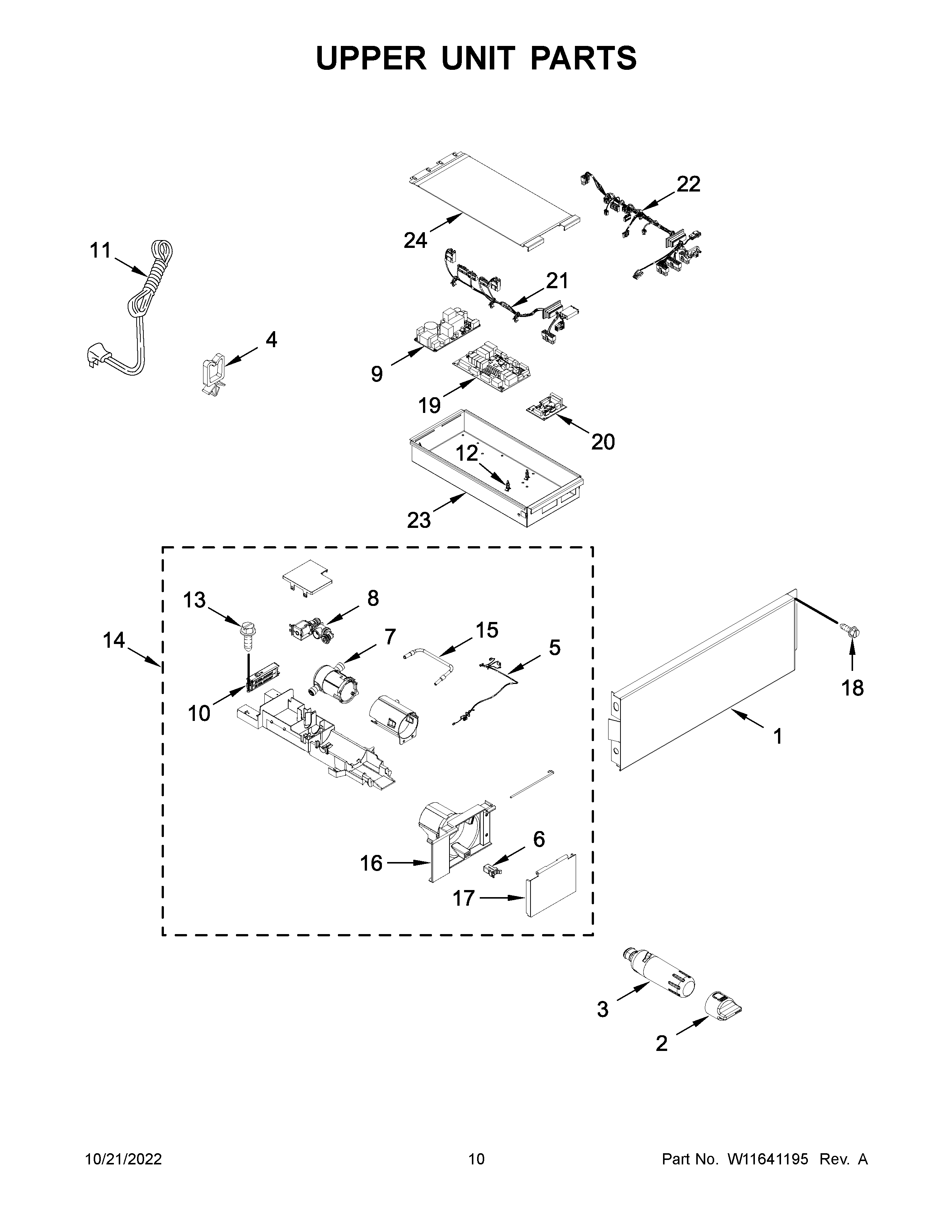

JBZFL18IGX10 06 – UPPER UNIT PARTS

JBZFL18IGX10 06 – UPPER UNIT PARTS

Written by

in

JBZFL18IGX10 06 – UPPER UNIT PARTS

Products

PositionProduct
1W11247636 Whirlpool Cover Assembly
2W11679634 Whirlpool Filter Cap
3EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
4CLIP
5HARNESS, VALVE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
6W11299812 Whirlpool Refrigerator Latch
7W11194438 Whirlpool Water Filter Housing
8W11233375 Whirlpool Refrigerator Valve
9WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
10W11234290 Whirlpool Electronic Control Board
11W11380825 Whirlpool Refrigerator Power Cord
12WP2203075 Whirlpool Refrigerator Spacer
13SCREW
14W11247640 Whirlpool Refrigerator Mount Kit
15W11233371 Whirlpool Water Tube
16W11247540 Whirlpool Refrigerator Housing
17W11247543 Whirlpool Refrigerator Filter Cover
18W11247538 Whirlpool Screw
19W11644178 Whirlpool Electronic Control Board + Core
20W11233638-includeCORE Whirlpool W11233638 Refrigerator Electronic Control Board + Core
21HARNESS, HV
22W11233621 Whirlpool Wire Harness
23W11302064 Whirlpool Tray Mount
24LID, COVER
