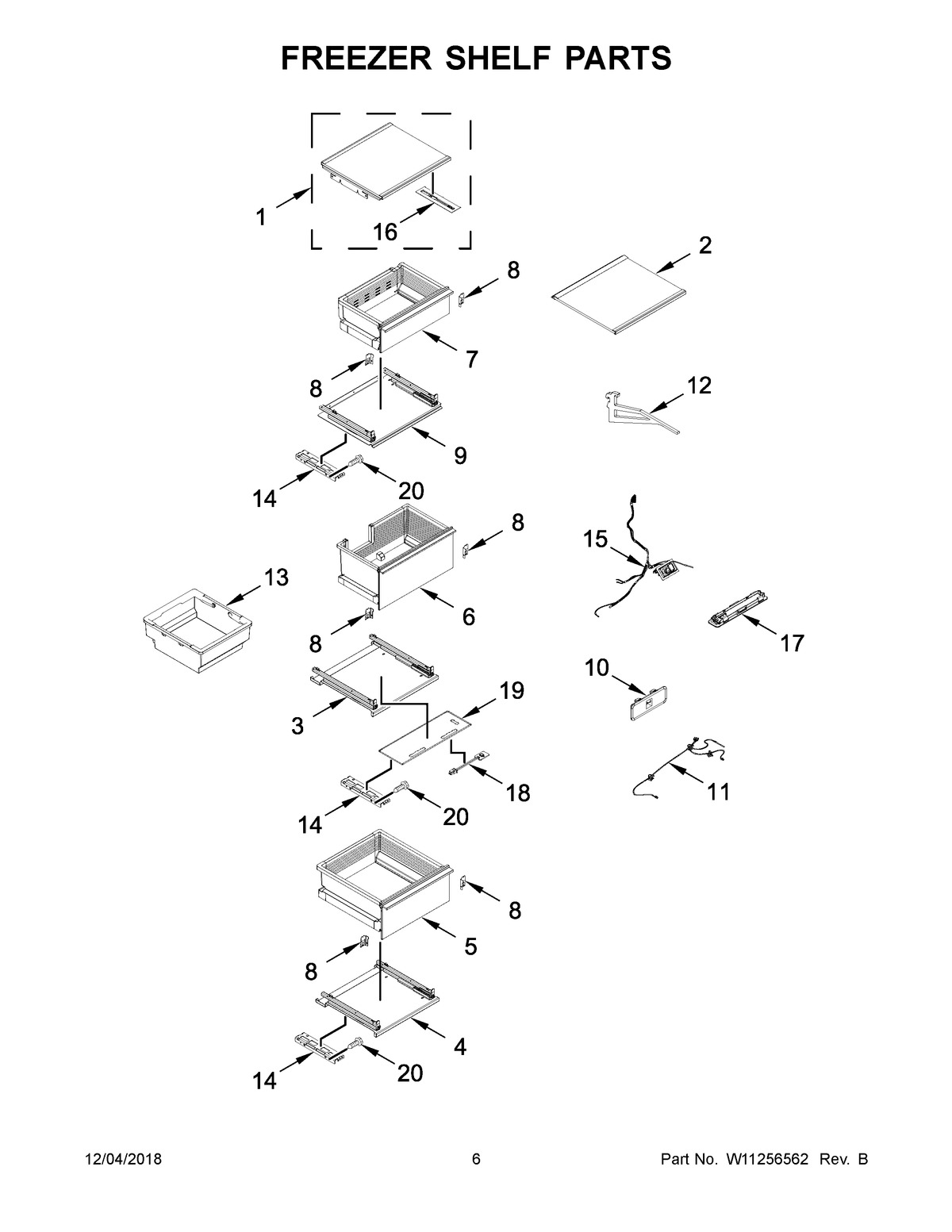

JBZFL30IGX00 04 – FREEZER SHELF PARTS

Products

PositionProduct
1ASSEMBLY, DELI SHELF
2ASSEMBLY, SHELF
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, CRISPER
6ASSEMBLY, ICE CRISPER
7ASSEMBLY, DELI
8ACLIP, RETAINER (RIGHT HAND)
8CLIP, RETAINER (LEFT HAND)
9ASSEMBLY, DELI SLIDE SUPPORT
10HOUSING, CRISPER THERMISTOR
11HARNESS, CRISPER LED (INCLUDES THERMISTOR)
12SIDEARM, SHELF
13ASSEMBLY, ICE BIN
14BRACKET, SUPPORT
15HARNESS, MULLION
16THERMISTOR (INCLUDES COVER)
17ASSEMBY, LIGHT STRIP
18LIGHT, LED
19PLATE, CRISPER SUPPORT LED
20SCREW
