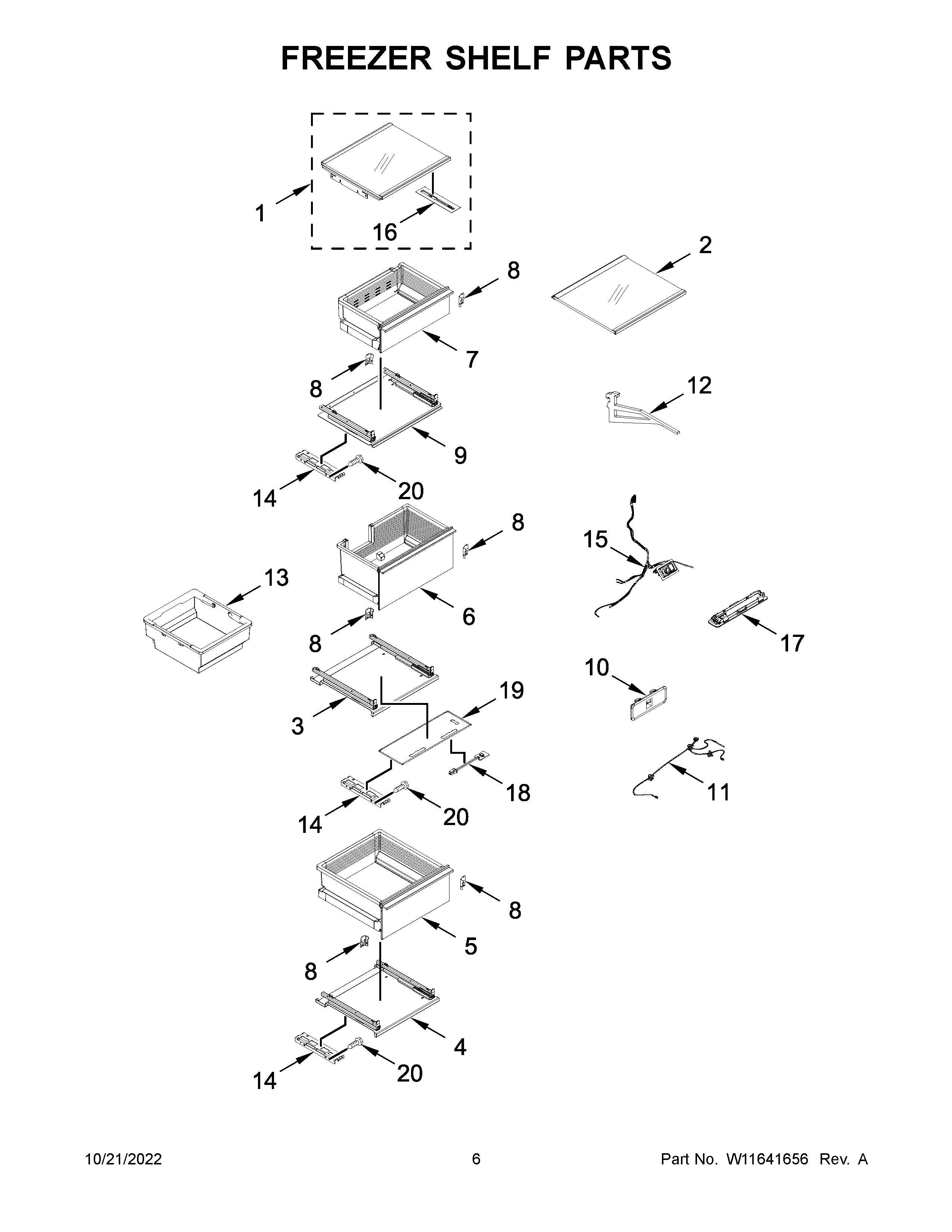

JBZFL30IGX10 04 – FREEZER SHELF PARTS

Products

PositionProduct
1ASSEMBLY, DELI SHELF
2W11234495 Whirlpool Glass Shelf
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, CRISPER
6W11234497 Whirlpool Crispr Pan
7ASSEMBLY, DELI
8ACLIP, RETAINER (RIGHT HAND)
8CLIP, RETAINER (LEFT HAND)
9W11232780 Whirlpool Support Bracket
10W11234857 Whirlpool Housing
11W11234859 Whirlpool Refrigerator Wire Harness
12W11690161 Whirlpool Support
13W11234515 Whirlpool Refrigerator Ice Pan
14BRACKET, SUPPORT
15HARNESS, MULLION
16THERMISTOR (INCLUDES COVER)
17MODULE
18MODULE
19W11306698 Whirlpool Plate
20W11247538 Whirlpool Screw
