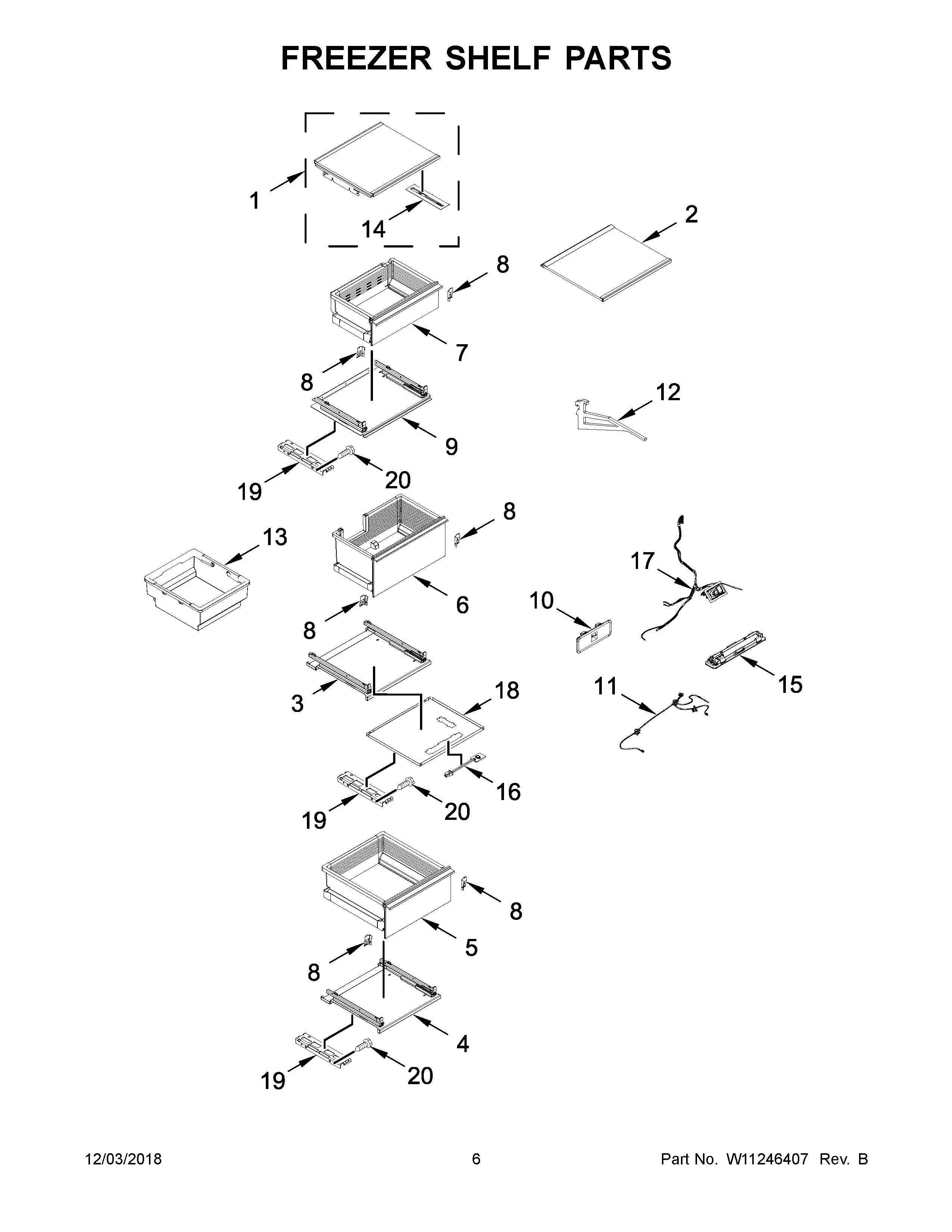

JBZFR18IGX00 04 – FREEZER SHELF PARTS

Products

PositionProduct
1ASSEMBLY, DELI SHELF (INCLUDES THERMISTOR)
2ASSEMBLY, SHELF
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, CRISPER
6ASSEMBLY, ICE CRISPER
7ASSEMBLY, DELI
8ACLIP, RETAINER (RIGHT HAND)
8CLIP, RETAINER (LEFT HAND)
9ASSEMBLY, DELI SLIDE SUPPORT
10HOUSING, CRISPER THERMISTOR
11HARNESS, CRISPER LED
12SIDEARM, SHELF
13ASSEMBLY, ICE BIN
14THERMISTOR (INCLUDES COVER)
15ASSEMBY, LIGHT STRIP
16LIGHT, LED
17HARNESS, MULLION
18PLATE, CRISPER LED SUPPORT
19BRACKET, SUPPORT
20SCREW
