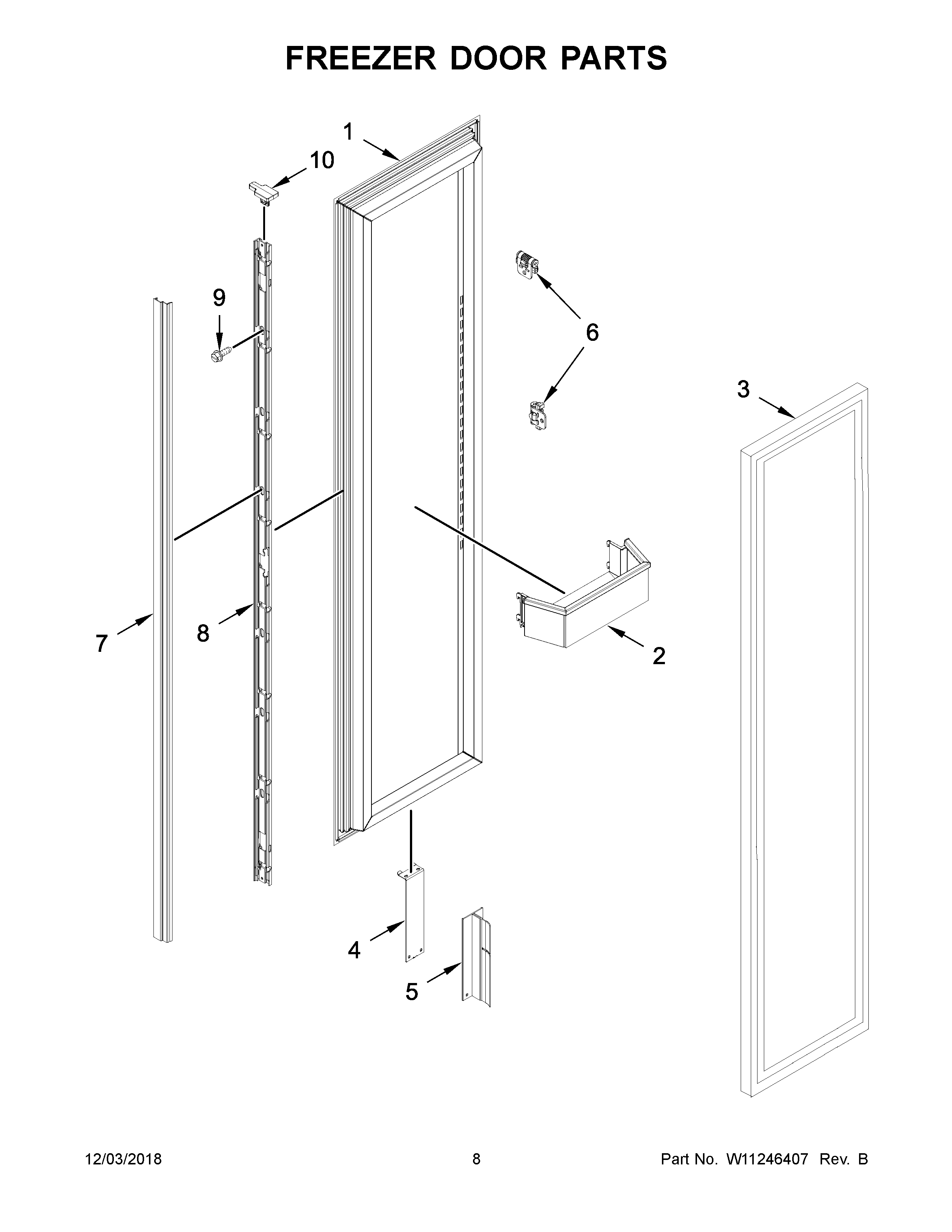

JBZFR18IGX00 05 – FREEZER DOOR PARTS

Written by

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	GAUGE, DOOR
1	ASSEMBLY, FREEZER DOOR
2	ASSEMBLY, DOOR BIN
3	GASKET, DOOR (BLACK)
4	BRACKET, AIR DIVIDER
5	DIVIDER, AIR
6A	ASSEMBLY, PANEL ADJUSTER (VERTICAL)
6	ASSEMBLY, PANEL ADJUSTER (HORIZONTAL)
7	TRIM, PANEL ADJUST
8	BRACKET, PANEL ADJUST
9	SCREW
10	CAP, PANEL ADJUST TRIM
