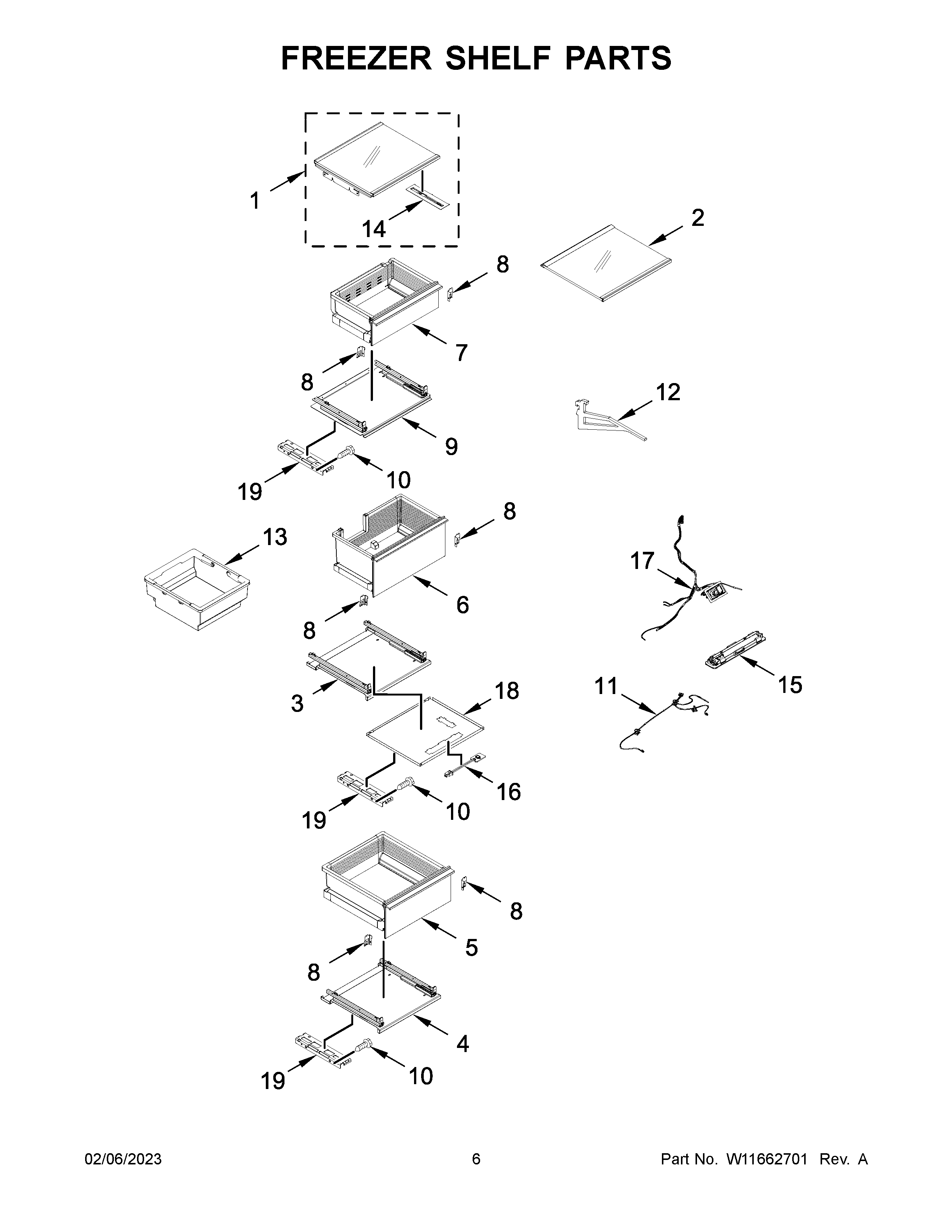

JBZFR18IGX10 04 – FREEZER SHELF PARTS

Products

PositionProduct
1ASSEMBLY, DELI SHELF (INCLUDES THERMISTOR)
2W11307256 Whirlpool Glass Shelf
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, CRISPER
6W11307277 Whirlpool Crisper Pan
7ASSEMBLY, DELI
8CLIP, RETAINER (LEFT HAND)
8ACLIP, RETAINER (RIGHT HAND)
9W11247585 Whirlpool Support
10W11247538 Whirlpool Screw
11W11247586 Whirlpool Wire Harness
12W11690161 Whirlpool Support
13W11234515 Whirlpool Refrigerator Ice Pan
14THERMISTOR (INCLUDES COVER)
15MODULE
16MODULE
17HARNESS, MULLION
18PLATE, CRISPER LED SUPPORT
19BRACKET, SUPPORT
