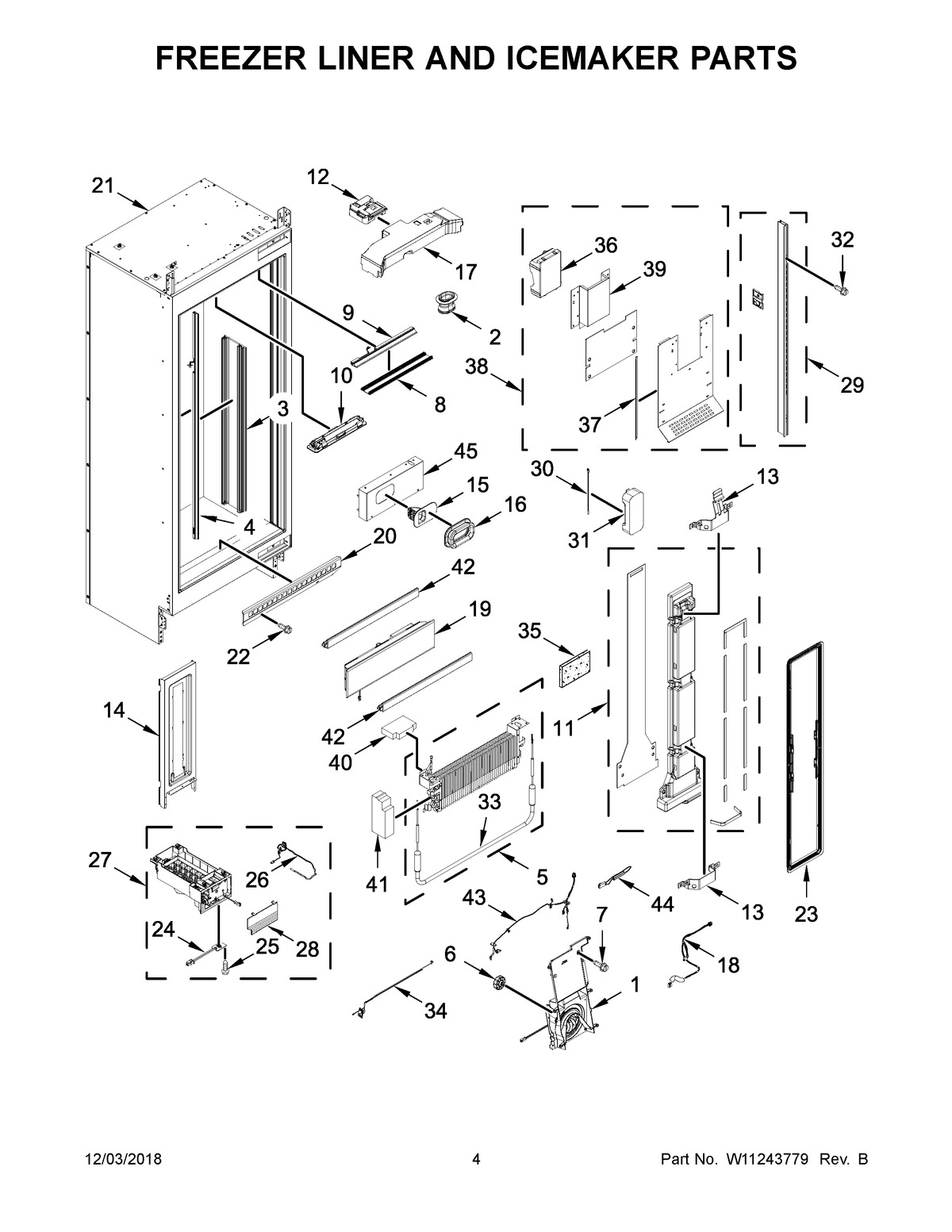

JBZFR24IGX00 03 – FREEZER LINER AND ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, FAN
2	MAY W10370680
3	COVER, LED SIDE
4A	ASSEMBLY, LED STRIP (RIGHT HAND)
4	ASSEMBLY, LED STRIP (LEFT HAND)
5	EVAPORATOR
6	GROMMET, MOTOR
7	SCREW (10)
8	COVER, LED TOP
9	STRIP, TOP LED
10	ASSEMBY, LIGHT STRIP
11	ASSEMBLY, AIR TOWER GASKET (INCLUDES AIR TOWER)
12	ASSEMBLY, DUCT DAMPER (INCLUDES HEATER)
13A	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
13	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (UPPER)
14	WALL, FALSE
15	DUCT, DELI
16	GASKET, DELI DUCT
17	ASSEMBLY, DUCT
18	HARNESS, DAMPER
19	ASSEMBLY, USER INTERFACE
20	GRILLE, AIR RETURN
21	LINER (NOT A SERVICEABLE PART)
22	MAY 1157158
23	ASSEMBLY, AIR TOWER PANEL
24	LIGHT, LED
25	SCREW
26	ASSEMBLY, ICEMAKER WIRE (INCLUDES THERMISTOR)
27	ASSEMBLY, ICEMAKER
28	COVER, ICEMAKER (BLACK)
29A	LADDER, SHELF (INCLUDES SCREWGUIDE) (RIGHT HAND)
29	LADDER, SHELF (INCLUDES SCREWGUIDE) (LEFT HAND)
30	THERMISTOR
31	COVER, THERMISTOR
32	SCREW (BLACK)
33	HEATER, DEFROST
34	ASSEMBLY, FILL TUBE (INCLUDES HEATER)
35	SEALER, INSULATION
36	MAY W10780861
37	MAY W10895214
38	ASSEMBLY, EVAPORAT
39	MAY W10895218
40A	MAY W11216533
40	MAY W11216534
41	MAY W10876967
42	MAY W10816924
42A	MAY W10887668
43	H
44	ASSEMBLY, FUSE JUMPER WIRE
45	MAY W10816945
