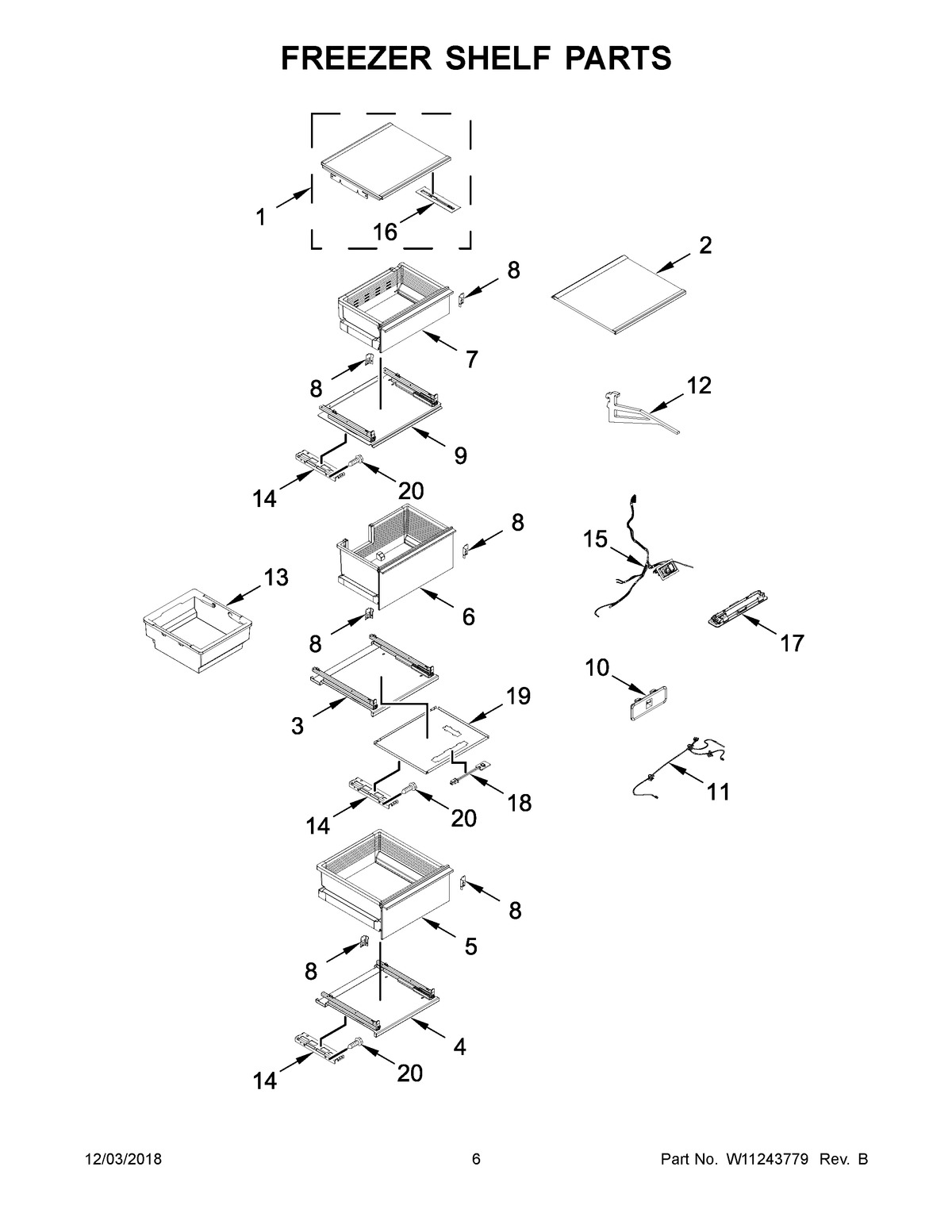

JBZFR24IGX00 04 – FREEZER SHELF PARTS

Products

Position	Product
1	ASSEMBLY, DELI SHELF
2	ASSEMBLY, SHELF
3	ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4	ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5	ASSEMBLY, CRISPER
6	ASSEMBLY, ICE CRISPER
7	ASSEMBLY, DELI
8	CLIP, RETAINER (LEFT HAND)
8A	CLIP, RETAINER (RIGHT HAND)
9	ASSEMBLY, DELI SLIDE SUPPORT
10	HOUSING, CRISPER THERMISTOR
11	HARNESS, CRISPER LED (INCLUDES THERMISTOR)
12	SIDEARM, SHELF
13	ASSEMBLY, ICE BIN
14	BRACKET, SUPPORT
15	HARNESS, MULLION
16	THERMISTOR (INCLUDES COVER)
17	ASSEMBY, LIGHT STRIP
18	LIGHT, LED
19	PLATE, CRISPER SUPPORT LED
20	SCREW
