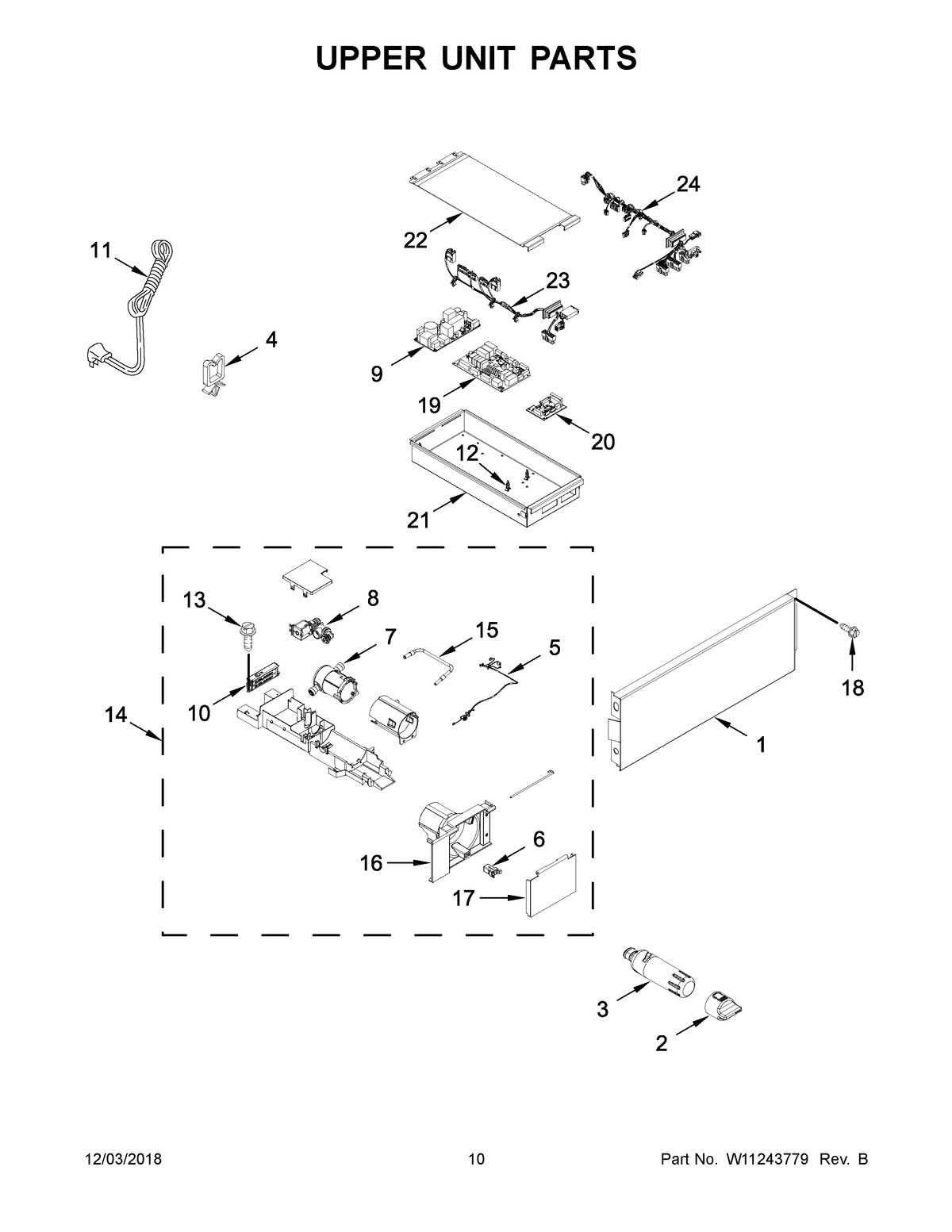

JBZFR24IGX00 06 – UPPER UNIT PARTS

Products

Position	Product
1	ASSEMBLY, COVER PLATE (CHARCOAL SPARKLE)
2	CAP, WATER FILTER (GREY)
3	FILTER, WATER
4	CLIP
5	HARNESS, VALVE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
6	LATCH, PUSH
7	HOUSING, WATER FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
8	VALVE, SINGLE SOLENOID (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
9	SUPPLY, POWER
10	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
11	CORD, POWER
12	Spacer (5)
13	SCREW
14	ASSEMBLY, FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
15	TUBE, FILTER INLET
16	MOUNT, FILTER
17	COVER, FILTER MOUNT
18	SCREW
19	CONTROL, ELECTRONIC
20	CONTROL, ELECTRONIC (LED DRIVER)
21	TRAY , CONTROL BOARD MOUNTING
22	LID, COVER
23	HARNESS, HV
24	HARNESS, LV
