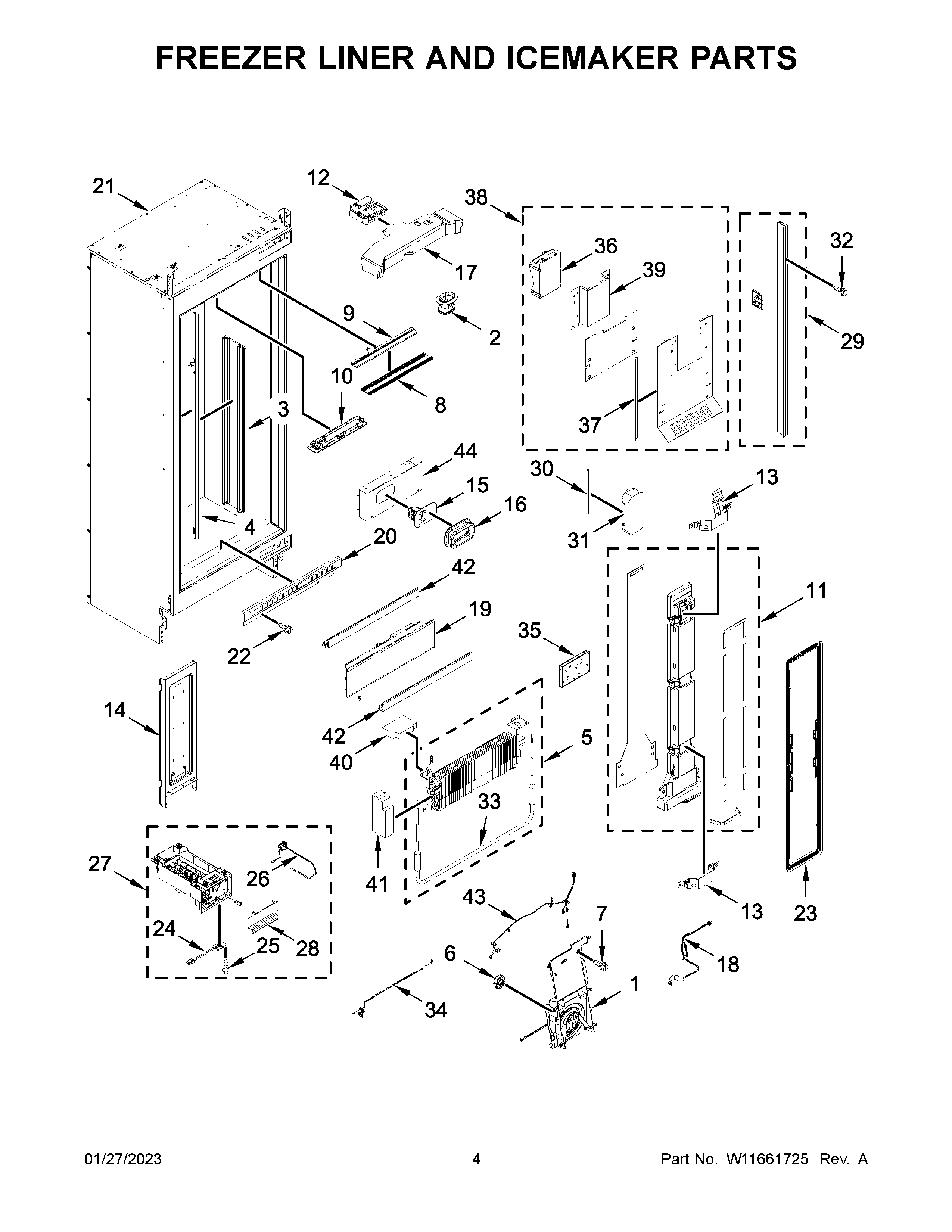

JBZFR24IGX10 03 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1W11233380 Whirlpool Fan Assembly
2W10370680 Whirlpool Refrigerator Fitting
3COVER, LED SIDE
4W11233381 Whirlpool Module
4AW11233382 Whirlpool Module
5AW11504451 Whirlpool Coupler
5ASSEMBLY, EVAPORATOR AND HEATER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
5BCOUPLER
6W10225833 Whirlpool Grommet
767006425 Whirlpool Refrigerator Screw
8COVER, LED TOP
9STRIP, TOP LED
10MODULE
11W11235114 Whirlpool Gasket
12W11235115 Whirlpool Refrigerator Damper
13W11036131 Whirlpool Bracket
13AASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
14WALL, FALSE
15DUCT, DELI
16W11235118 Whirlpool Gasket Assembly
17ASSEMBLY, DUCT
18HARNESS, DAMPER
19W11404238 Whirlpool Refrigerator UI Panel + Core
20W11245152 Whirlpool Refrigerator Grille
21CABINET (NOT A SERVICEABLE PART)
22WP489069 Whirlpool Compactor Screw
23ASSEMBLY, AIR TOWER PANEL
24MODULE
25SCREW
26W11234553 Whirlpool Wire Harness
27ICEMAKER
28W11234555 Whirlpool Refrigerator Front Cover
29ALADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT HAND)
29LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HAND)
30W11234826 Whirlpool Refrigerator Thermistor
31W11235125 Whirlpool Cover
32WPL W11288606
33W11642296 Whirlpool Heater
34W11515313 Whirlpool Refrigerator Water Tube
35W11553819 Whirlpool Refrigerator Insulation
36WPL W10780861
37WPL W10895214
38WPL W11441794
39WPL W10895218
40WPL W11216534
40AWPL W11216533
41WPL W10876967
42AWPL W10887668
42WPL W10816924
43W11642297 Whirlpool Wire Harness
44WPL W10816945
