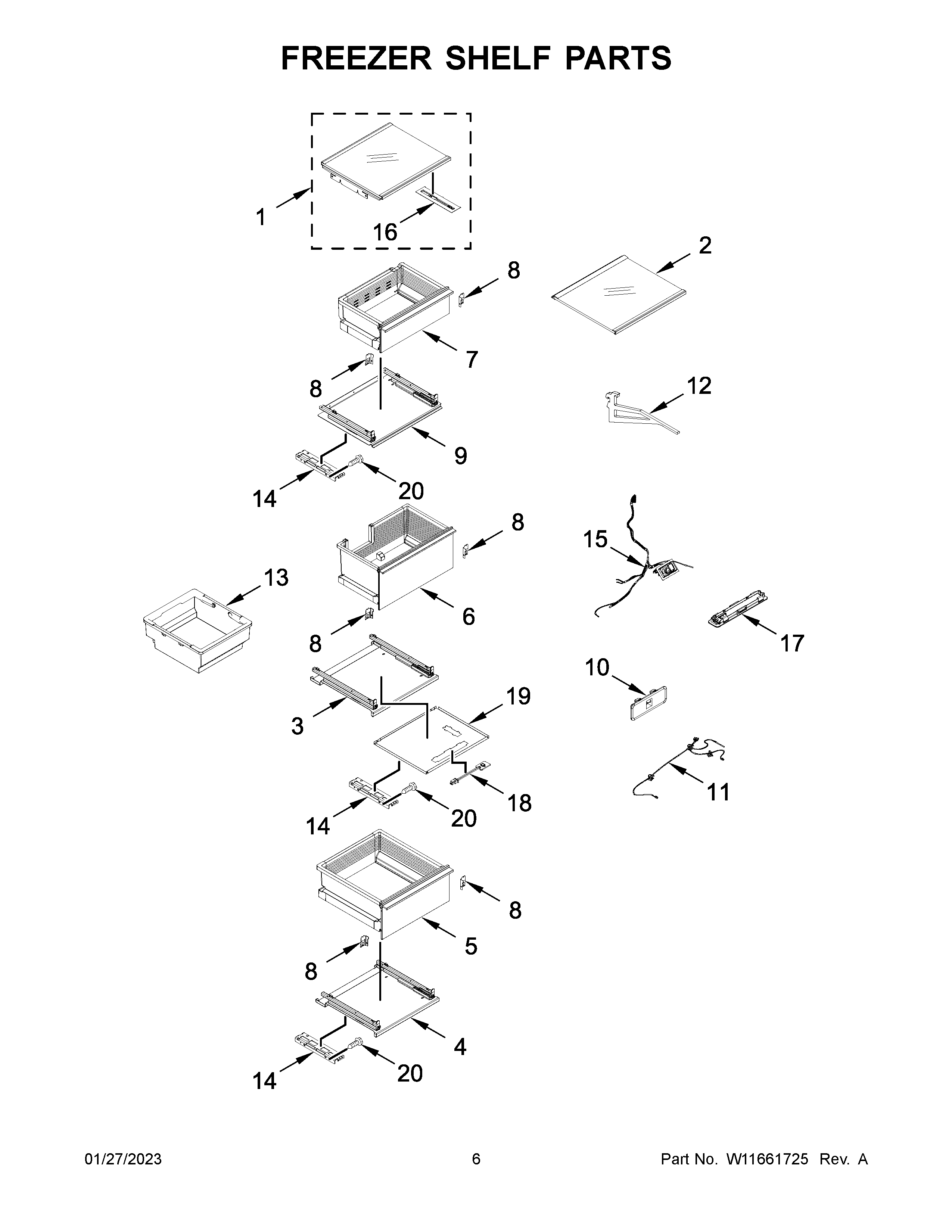

JBZFR24IGX10 04 – FREEZER SHELF PARTS

Products

Position	Product
1	W11245156 Whirlpool Refrigerator Glass Shelf
2	W11245159 Whirlpool Refrigerator Glass Shelf
3	ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4	ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5	ASSEMBLY, CRISPER
6	ASSEMBLY, ICE CRISPER
7	ASSEMBLY, DELI
8A	CLIP, RETAINER (RIGHT HAND)
8	CLIP, RETAINER (LEFT HAND)
9	W11245199 Whirlpool Support Bracket
10	W11234857 Whirlpool Housing
11	W11234859 Whirlpool Refrigerator Wire Harness
12	W11690161 Whirlpool Support
13	W11234515 Whirlpool Refrigerator Ice Pan
14	BRACKET, SUPPORT
15	HARNESS, MULLION
16	THERMISTOR (INCLUDES COVER)
17	MODULE
18	MODULE
19	PLATE, CRISPER SUPPORT LED
20	W11247538 Whirlpool Screw
