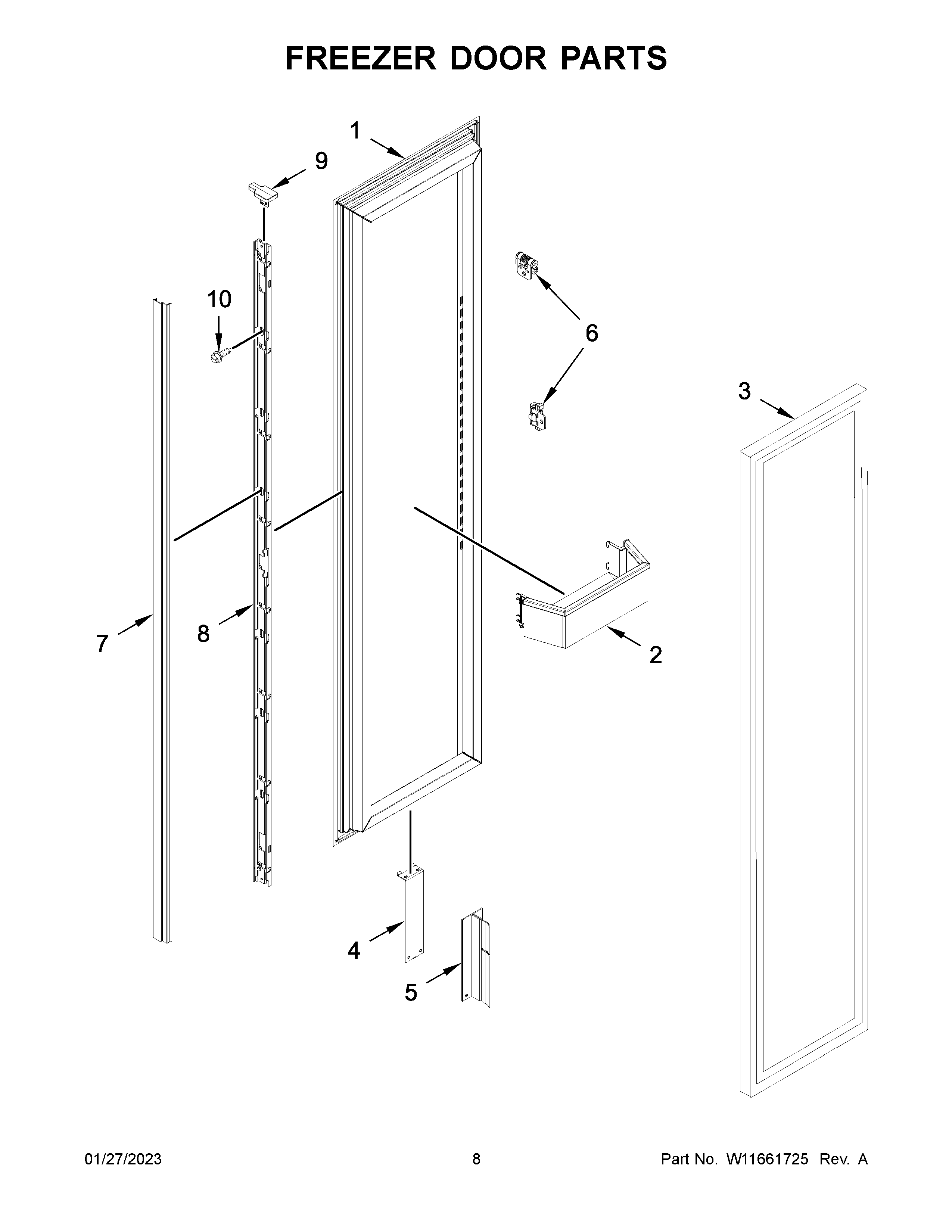

JBZFR24IGX10 05 – FREEZER DOOR PARTS

JBZFR24IGX10 05 – FREEZER DOOR PARTS

Written by

in

JBZFR24IGX10 05 – FREEZER DOOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11234308 Whirlpool Spacer
1ASSEMBLY, FREEZER DOOR
2W11245201 Whirlpool Refrigerator Cantilever Bin
3W11038431 Whirlpool Refrigerator Gasket Finishing
4W11235096 Whirlpool Refrigerator Bracket
5W11233377 Whirlpool Refrigerator Divider
6W11235097 Whirlpool Adapter
6AW11235098 Whirlpool Refrigerator Adapter
7W11299811 Whirlpool Refrigerator Door Trim
8W11302040 Whirlpool Refrigerator Bracket
9W11302061 Whirlpool Refrigerator Trim
10W11302041 Whirlpool Refrigerator Screw
