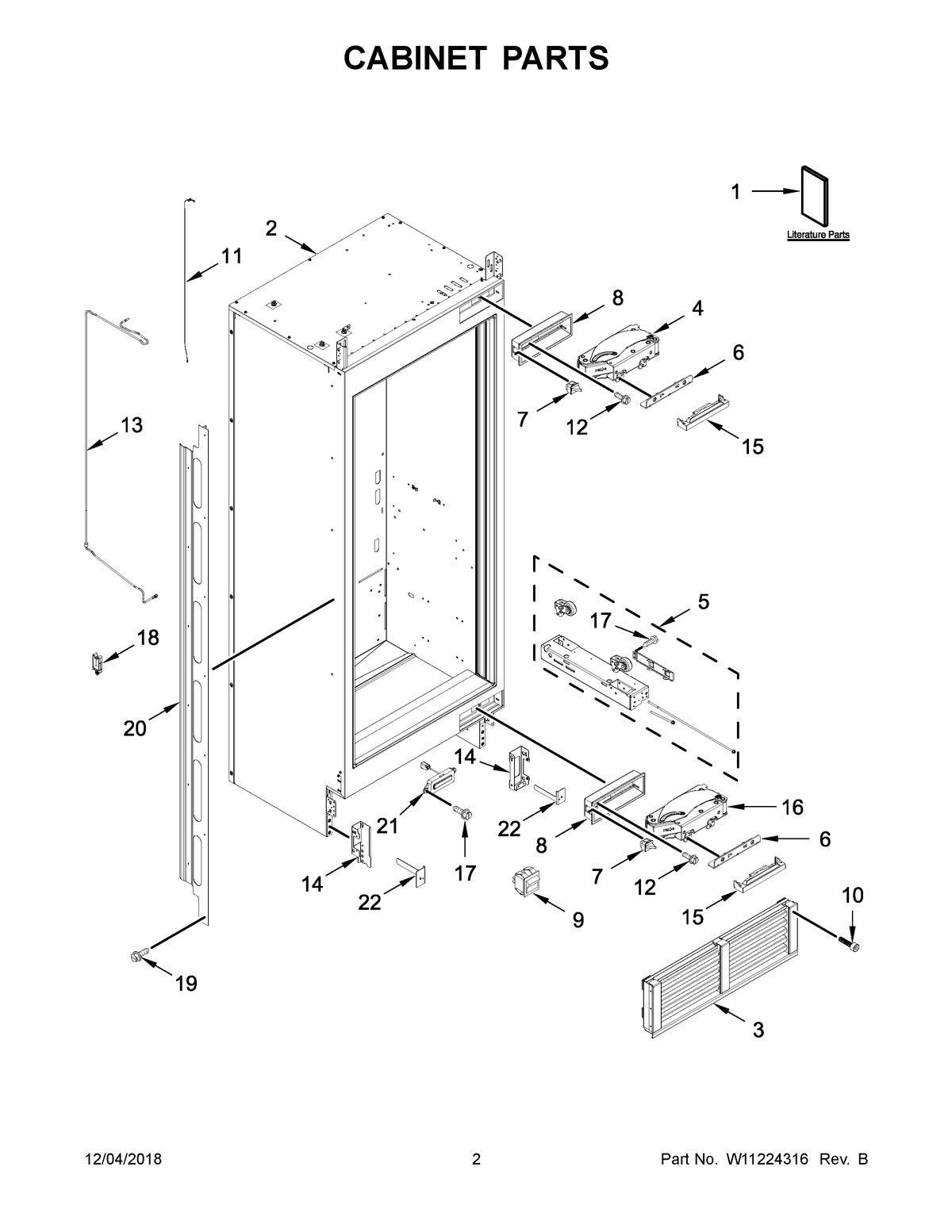

JBZFR30IGX00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET (FRENCH)
1CTECH SHEET (ENGLISH)
1BINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2LINER (NOT A SERVICEABLE PART)
3GRILLE (CHARCOAL SPARKLE)
4HINGE, TOP (CHARCOAL SPARKLE)
5AASSEMBLY, ROLLER BASE (RIGHT HAND)
5ASSEMBLY, ROLLER BASE (LEFT HAND)
6BRACKET, HINGE ATTACH
7SWITCH, LIGHT
8TRIM, HINGE (CHARCOAL SPARKLE)
9Switch, Power Disconnect
10SCREW
11HARNESS, ANTENNA
12SCREW (BLACK)
13TUBE, WATER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
14AASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND)
14ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND)
15COVER, HINGE BRACKET
16HINGE, BOTTOM (CHARCOAL SPARKLE)
17SCREW 8-32 X 1/2
18CLIP, WIRE
19MAY W10141645
20TRIM, SIDE (EBONY (NON-HINGE SIDE))
20ATRIM, CABINET SIDE (EBONY (RIGHT HAND))
21MODULE, WIFI
22ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND)
22AASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND)
