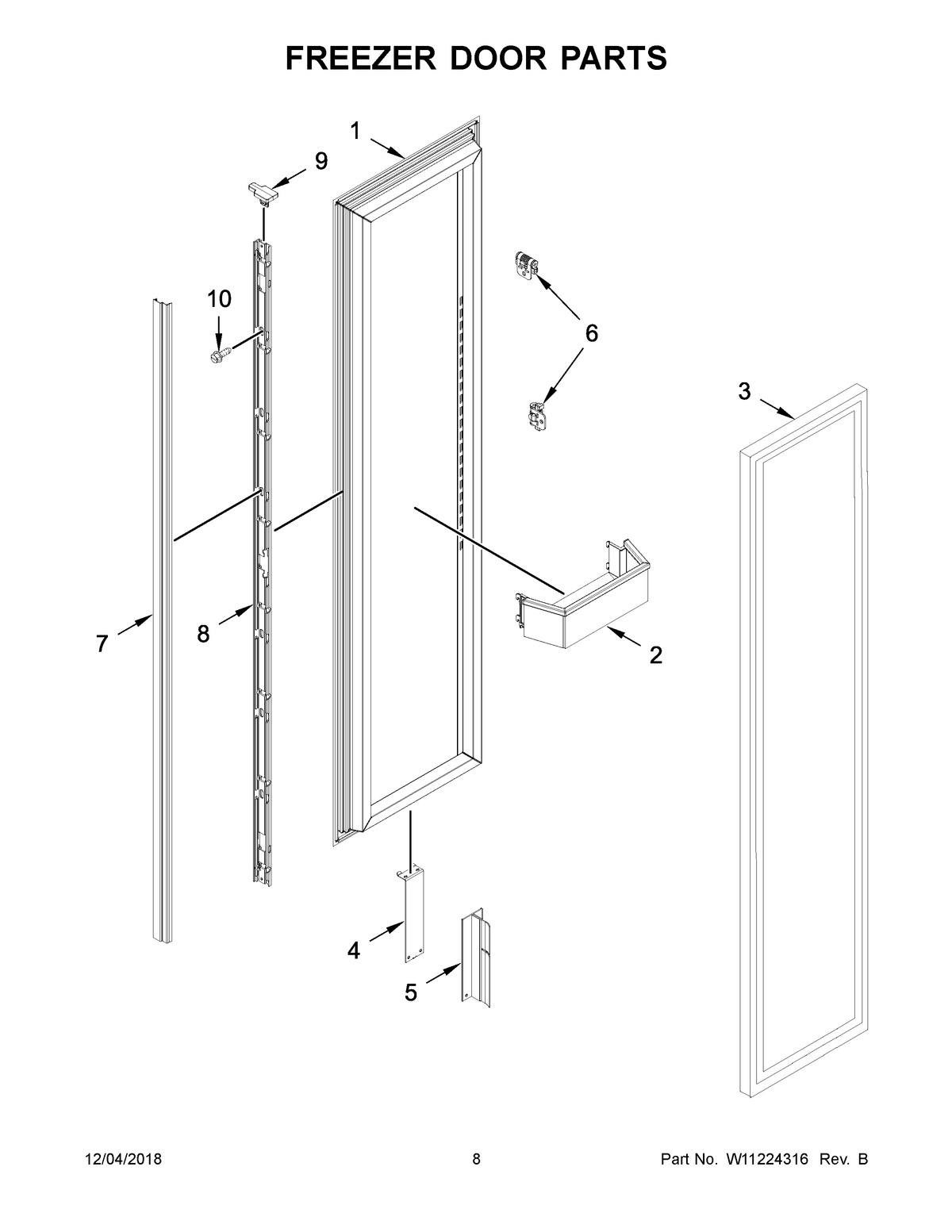

JBZFR30IGX00 05 – FREEZER DOOR PARTSadmin2025-04-26T09:15:14+00:00JBZFR30IGX00 05 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | GAUGE, DOOR |
| 1 | ASSEMBLY, FREEZER DOOR |
| 2 | ASSEMBLY, DOOR BIN |
| 3 | GASKET, DOOR (BLACK) |
| 4 | BRACKET, AIR DIVIDER |
| 5 | DIVIDER, AIR |
| 6A | ASSEMBLY, PANEL ADJUSTER (VERTICAL) |
| 6 | ASSEMBLY, PANEL ADJUSTER (HORIZONTAL) |
| 7 | TRIM, PANEL ADJUST |
| 8 | BRACKET, PANEL ADJUST |
| 9 | CAP, PANEL ADJUST TRIM |
| 10 | SCREW |
