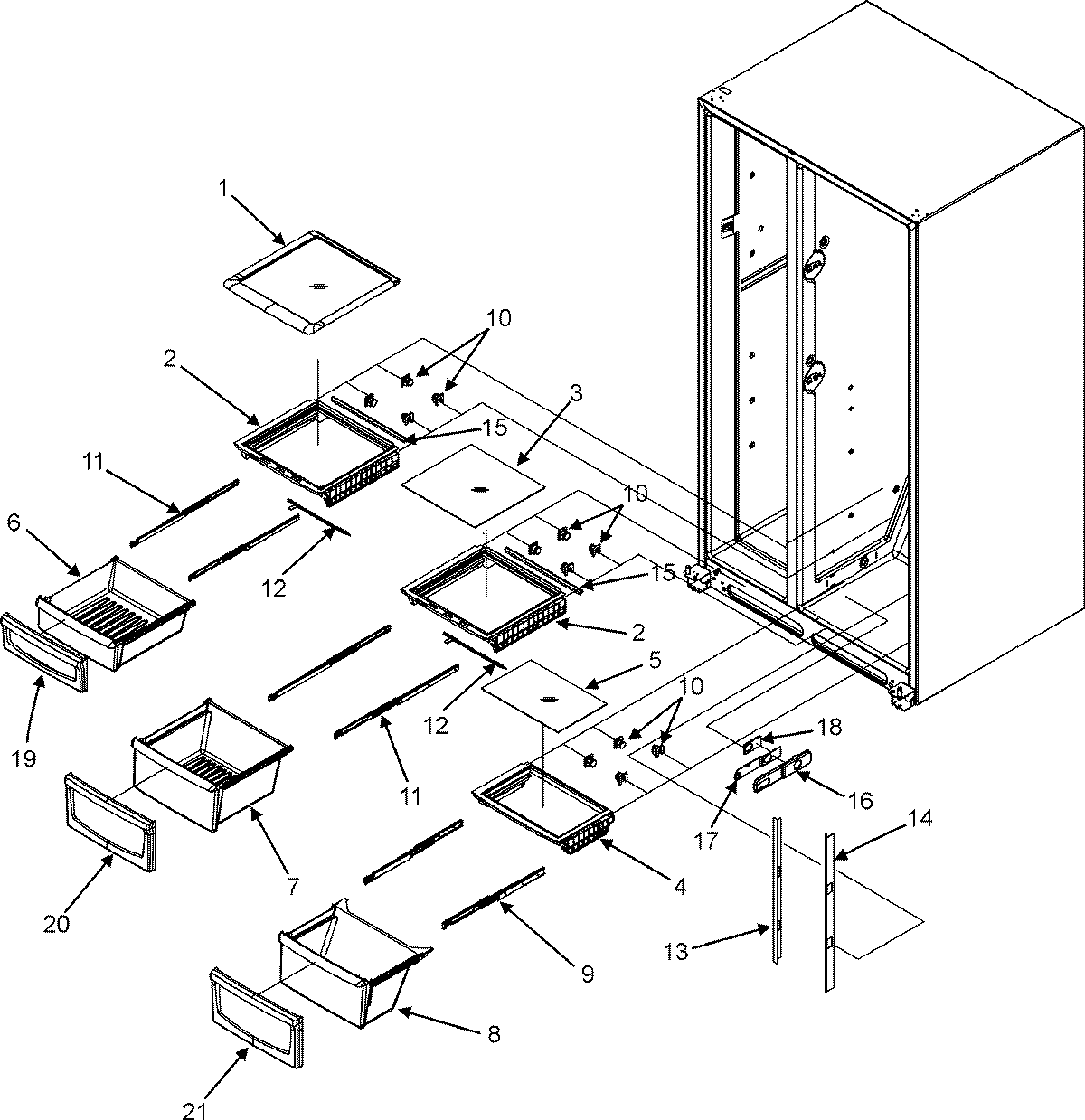

JC2225GEKB 04 – CRISPER ASSEMBLY

Products

PositionProduct
1MAY 67004130
2Frame, Crisper
3MAY 67004246
4MAY 67004247
5MAY 67004132
6MAY 67005820
6MAY 67004532
7WP67005816 Whirlpool Refrigerator Pan
8MAY 67005639
8MAY 67004206
967005620 Whirlpool Refrigerator Glide CRI
9MAY 67005898
10WP12603701 Whirlpool Refrigerator Support
11MAY 67005620
11MAY 67004489
11MAY M0213129
12MAY 67004885
13PILLAR (LT)
14PILLAR (RT)
15MAY 67004249
16HOUSING, TEMP. CONTROL
17SLIDE, TEMP. CONTROL
18MAY 67004177
19MAY 67006040
20MAY 67006039
21MAY 67004426
