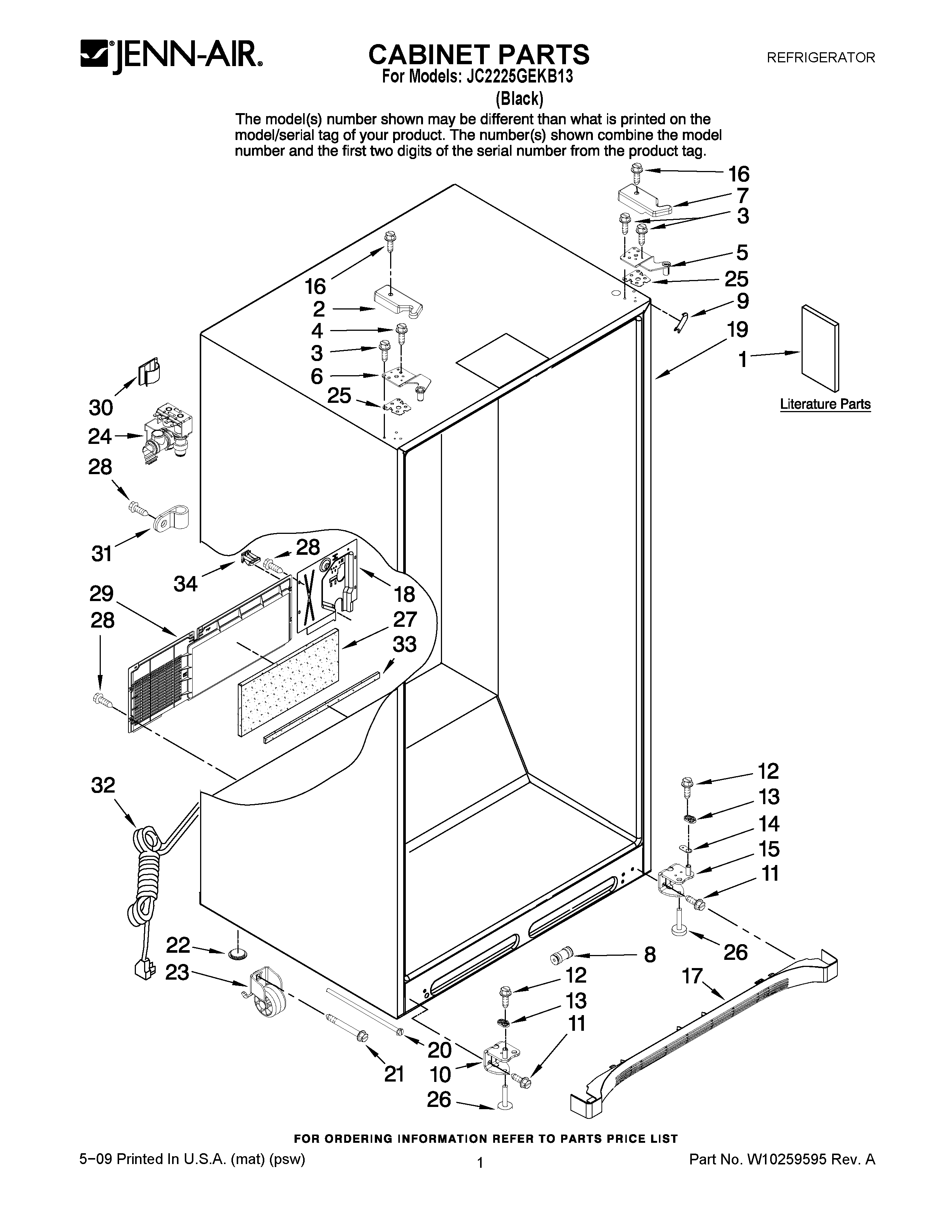

JC2225GEKB13 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	MAY 12842135SP
2	Cover, Hinge (FC) (Black)
3	WP489349 Whirlpool Refrigerator Screw
4	MAY 12992604
5	Hinge, Top Right
6	Hinge, Top Left
7	MAY 12629801B
8	WP2300868 Whirlpool Refrigerator Fitting
9	67003485 Whirlpool Refrigerator Corner Cover (Black)
10	MAY 12998303ED
11	MAY 67006564
12	MAY 67006492
13	MAY 67006493
14	WP67005716 Whirlpool Refrigerator Shim
15	MAY 12998304ED
16	WP8281196 Whirlpool Screw
17	WP67006687 Whirlpool Refrigerator Front Grille
18	MAY 67005117
20	MAY 67006697
21	71003131 Whirlpool Oven Screw
22	A3076901 Whirlpool Refrigerator Plug
23	Roller Assembly
24	MAY 12544121
25	MAY 12695601
26	W11177593 Whirlpool Leveling Feet
27	67003796 Whirlpool Refrigerator Fiber Acoustic
28	Screw (10)
29	MAY 67002230
30	MAY M0104102
31	W10833902 Whirlpool Refrigerator Clamp
32	MAY 13015202
33	Gasket
34	12831101 Whirlpool Refrigerator Tube Clamp
