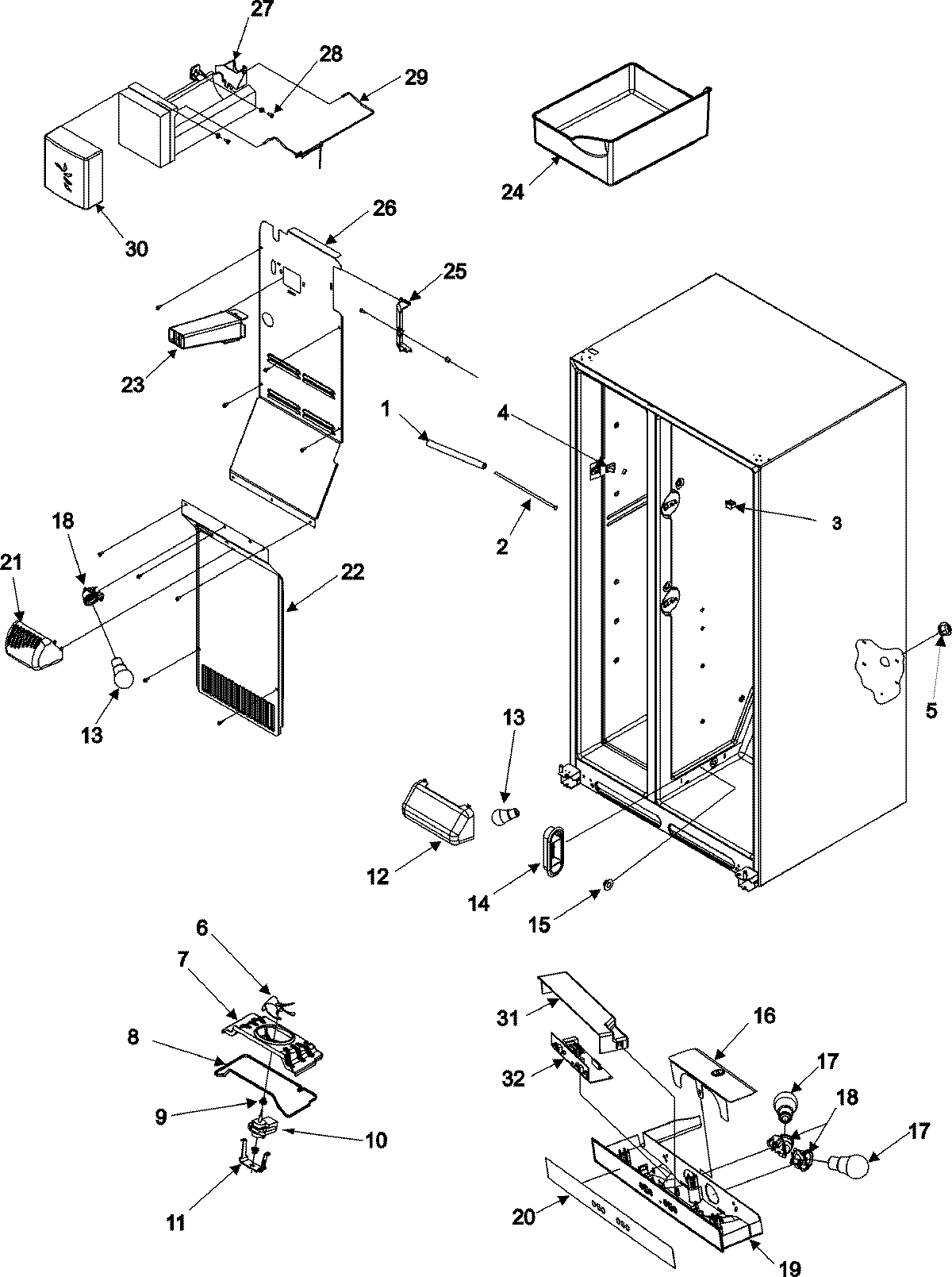

JCB2280HEB 07 – EVAP FAN ASSY AND CONTROL

Products

Position	Product
1	MAY 67002219
2	MAY M0322202
3	W11291138 Whirlpool Refrigerator Door Switch
4	SWITCH, LIGHT
6	MAY 12217201
7	MAY 67004491
8	MAY 67001508
9	WP67002780 Whirlpool Refrigerator Grommet
10	12002744 Whirlpool Refrigerator Evaporator Fan Motor Kit
11	WP67005633 Whirlpool Refrigerator Bracket
12	MAY 67001507
14	MAY 12634801
15	MAY 67003018
16	MAY 67004157
17	RANGE ONLY 40W 120V APPL BULB
18	Socket, Light (2)
19	MAY 67004479
20	MAY 67004497
21	MAY 67004135
22	MAY 67004192
23	MAY 67003581
24	MAY 10476207
25	MAY 12583101
25	MAY M0580205
26	MAY M0238616
26	MAY 67004382
27	12002355 Whirlpool Refrigerator Thermistor Kit
27	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
28	MAY M0238833
29	MAY 12671401
30	Cover
31	MAY 67004027
32	MAY 67006209
32	WPW10503278 Whirlpool Refrigerator Electronic Control Board
33	MAY 67004526
33	MAY 13032301
