JCB2280HEQ 03 – COMPRESSOR (SERIES 10)

JCB2280HEQ 03 – COMPRESSOR (SERIES 10)

Written by

in

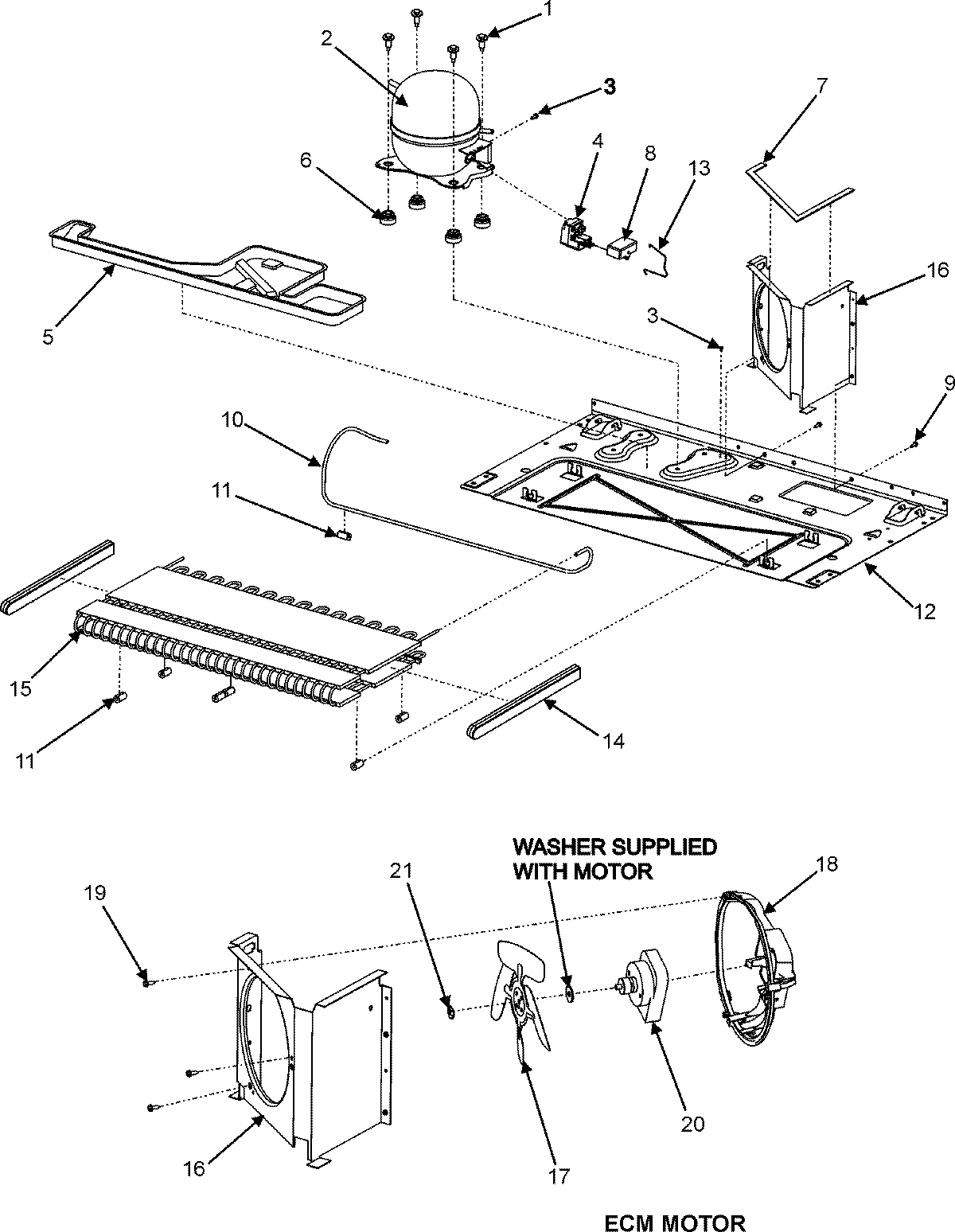

JCB2280HEQ 03 – COMPRESSOR (SERIES 10)

Products

PositionProduct
1MAY 67003790
2MAY 67003084
3MAY M0231604
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5WP12579803 Whirlpool Refrigerator Drain Pan
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8CAPACITOR
10MAY 67002236
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67001512
13MAY 12576801
14MAY 67002235
15MAY 67003195
16SHROUD, CONDENSER FAN
17WP12587601 Whirlpool Refrigerator Condenser Blade
18MAY 67003644
19MAY M0238616
20MAY 12628701
21WP486692 Whirlpool Refrigerator Nut
22MAY 67004019
