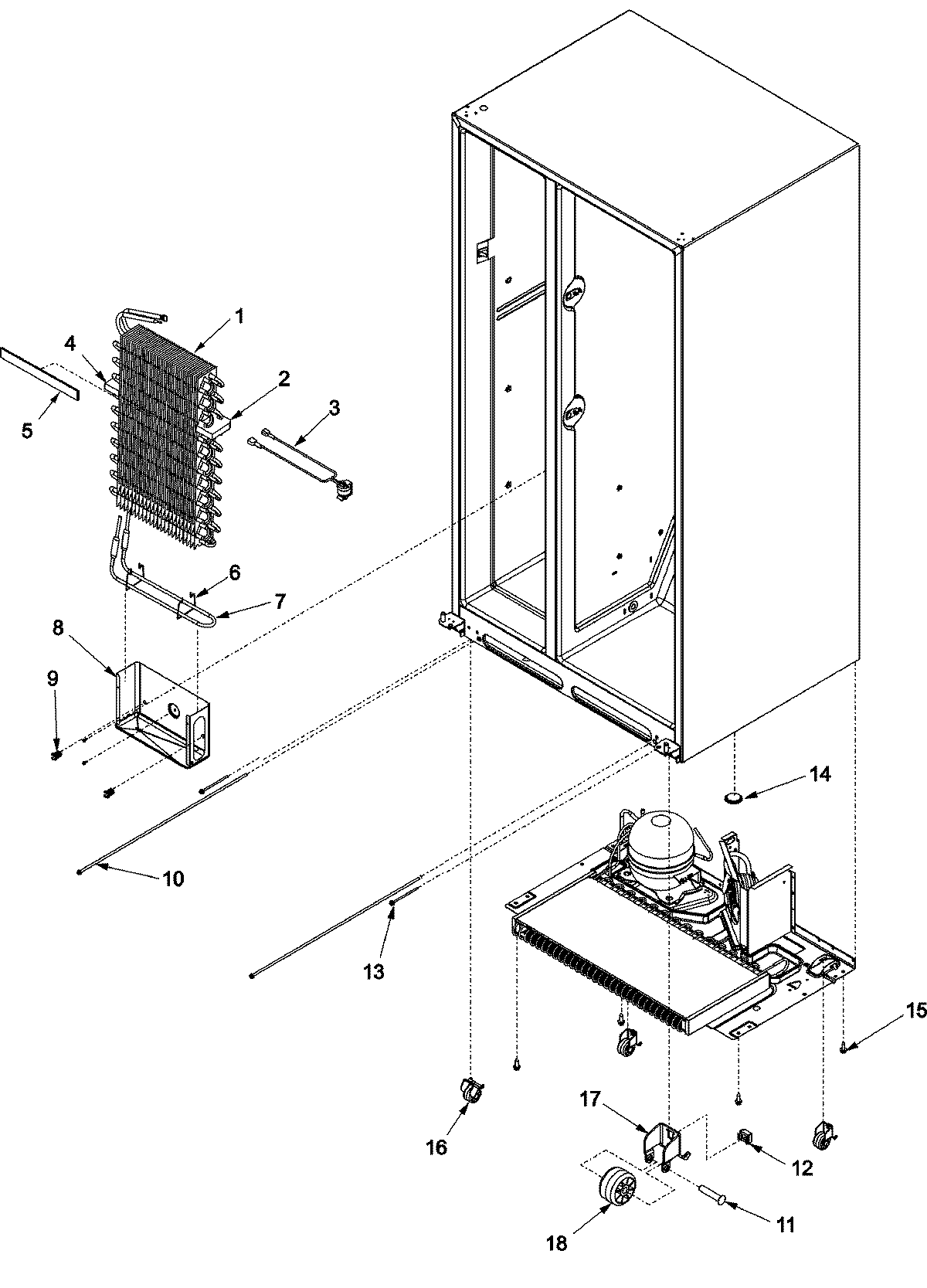

JCB2280HES 08 – EVAPORATOR ASSY AND ROLLERS

JCB2280HES 08 – EVAPORATOR ASSY AND ROLLERS

Written by

in

JCB2280HES 08 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
1MAY 12676401
2MAY 12590102
312002355 Whirlpool Refrigerator Thermistor Kit
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7WP67004188 Whirlpool Heater Defrost Assembly
8MAY M0224416
8MAY 12558101WD
9MAY 10623003
10MAY 10093315
11MAY M1205302
12MAY M0286708
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15MAY 67001510
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18MAY 10450602
19MAY 67004321
