JCB2280HEW 04 – COMPRESSOR (SERIES 11)

JCB2280HEW 04 – COMPRESSOR (SERIES 11)

Written by

in

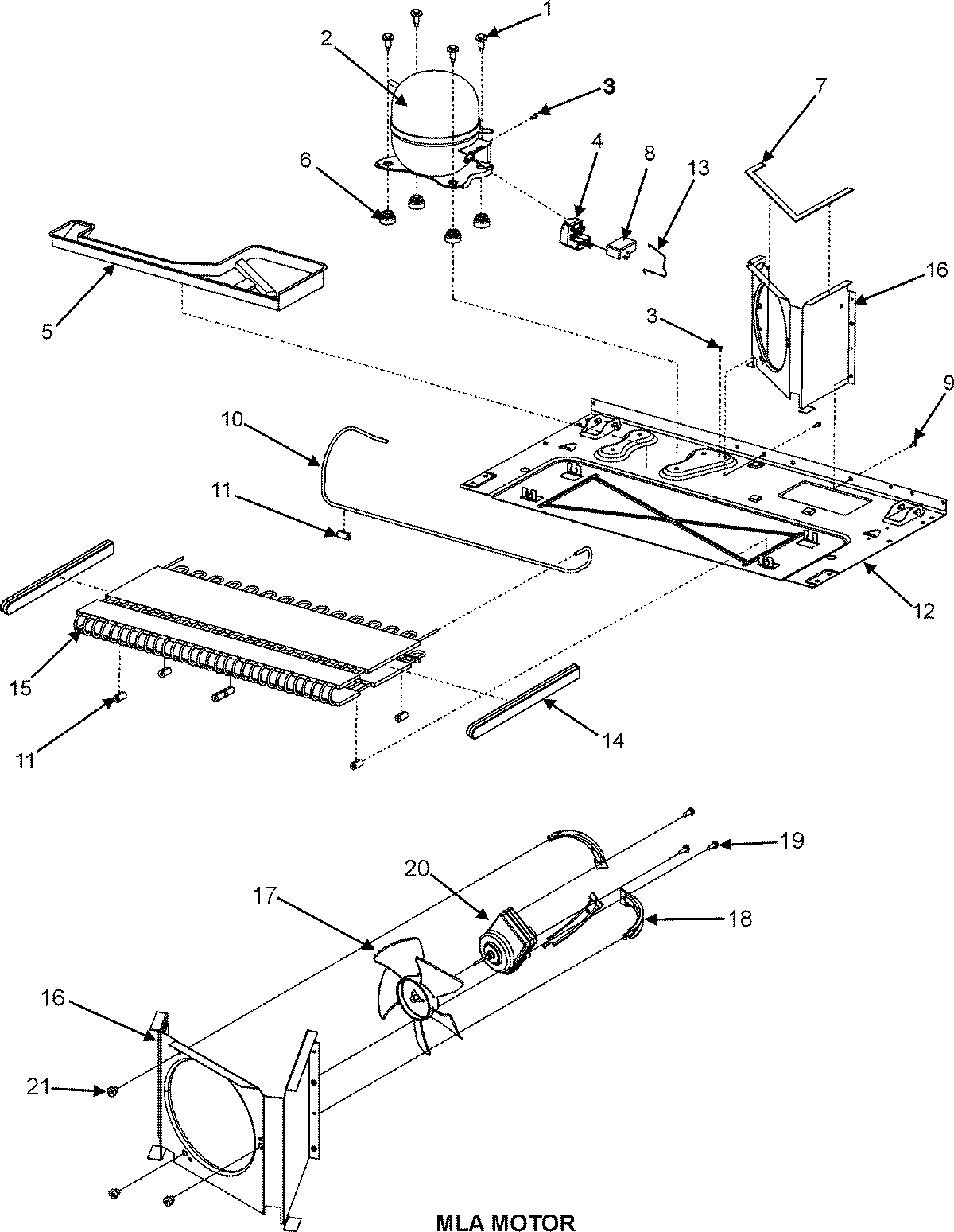

JCB2280HEW 04 – COMPRESSOR (SERIES 11)

Products

PositionProduct
1MAY 67003790
2MAY 67003084
3MAY M0231604
4W10613606 Whirlpool Refrigerator Start Device Relay Overload
5WP12579803 Whirlpool Refrigerator Drain Pan
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8CAPACITOR
9MAY M0238616
10MAY 67002236
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67001512
13MAY 12576801
14MAY 67002235
15MAY 67003195
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18MAY 67004953
19WP67004954 Whirlpool Refrigerator Screw
20MAY 67004432
21GROMMET, BRACKET
